Specifications
home alarms security1.LCD displays
2.4-ways of arm/disarm
3.8 wired zones optional
4."Black Box"date r
home alarms security ,Supports multiple languages

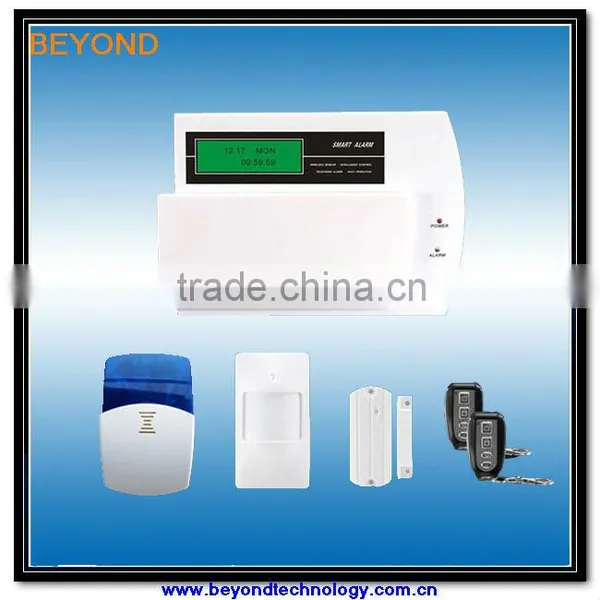

Model:CX-3C
Brief Description:
1.LCD displays, Rubber keypad buttons ,Upgrade design
2.4-ways of arm/disarm
3.Supports multiple languages
4.29 wireless zones, 2 dedicated zones ,8 wired zones optional
5. “Black Box” date record function
6.One-key arm function, easy operation
7.Upto 5 groups of telephone numbers
8.Supports CID uploading to CMS
9.Low voltage indicators
Basic Functions:
1.Blue or Green LCD looks nice and upgraded .More comfortable operation with soft rubber buttons. Concisely displays Date, Day of the week, Time, and current Armed Status.
2. The screen can show the language: English, Chinese, German, Russian, French, Japanese... Trad-Chinese and more to meet different market needs.
3. 29 wireless zones(Each zone supports up to 4 sensors) + 2 dedicated zones for remote (Each zone supports up to 4 remotes or wireless keypad). 8 wired zones can be extended.
4. Upto 5 groups of telephone numbers can be pre-stored, can record voice message, alarm by calling and playing back the recorded message, can listen in to hear what is happening
5.Record up to a 10 second voice message in the host, then can be heard via phone when answering alarm call.
6. Non-volatile chip, information stored automatically when off power.
7. Prior alarming , automatic information preservation on a sudden power cut , AC/DC power available
8. Disconnection alarm, auto priority to occupy the telephone and monitoring function to hear what is happening.
9. 4-ways of arm/disarm: remote controller, built-in keypad, wireless keypad (optional device), phone call.
10. One-key arm function. Learning sensors to alarm host, very easy operation.
11. Compatible with international ADEMCO Contact ID, can work with monitoring center by adding a GSM CID connector.
12. “Black Box” date record function. Can store up to 100 alarm event information and 100 arm/disarm history.
13. Built-in Li-Ion backup batter, available in ACDC. System self-check , alert of phone line disconnection, low backup battery power and no external power.
14.Wireless or wired siren are optional for louder alarming sound.
15.More functions can be realized with more optional accessories(Note: consultation in advance is necessary).
Extended Functions:
8 wired zones
Specifications/Technical Parameters:
1. Power supply: AC=110~240V, DC=9~15V 1A
2. Static current: ≤60mA
3. Alarm current: ≤380mA
4. Working condition: Temperature: -10ºC ~ 50ºC Humidity: <80%
5. Wireless frequency: 315Mhz/433Mhz
6. Product dimension (Host): 180*120*38 (mm)
7. Supports wireless sensors maximum at 116 purchase
8. Supports Remote maximum at 8 purchase
9. Back-up battery: Li-ion battery,4.8V/600MA

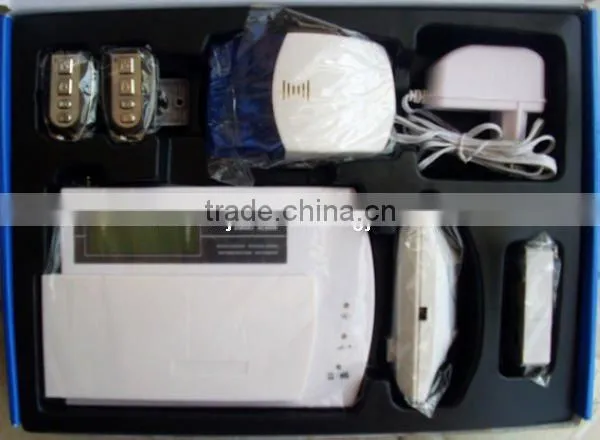

Accessories in standard package:
1. alarm host *1pc
2. wireless wide-range PIR detector *1pc
3. wireless door magnet *1pc
4. wireless indoor siren *1pc
5. remote control/key chain * 2pcs
6. power adaptor *1pc
Optional Accessories:
1.Gas alarm
2.Smoke alarm
3.Wireless out door siren
4.Wireless keypad
5.GSM dialer
6.Wireless curtain PIR sensor
Packing Figure:
