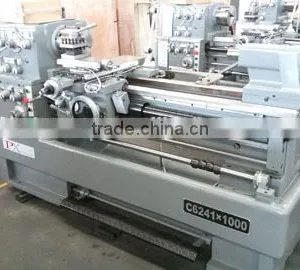

Precision Gear Head Engine Lathe Machine C6241

Specification

Model

C6241
×1000

C6241
×1500

C6241
×2000

C6246
×1000

C6246
×1500

C6246
×2000

Capacity

Swing over bed

410mm(16")

460mm(18")

Swing over cross slide

220mm(8-13/16")

270mm(10-3/4")

Swing in gap

640mm(25-1/8")

690mm(27-1/8")

Distance between centers

1000mm
(40")

1500mm
(60")

2000mm
(80")

1000mm
(40")

1500mm
(60")

2000mm
(80")

Valid length of gap

165mm(6-1/2")

Width of bed

300mm(11-13/16")

Headstock

Spindle nose

D1-6

Spindle bore

58mm(2-1/4")

Taper of spindle bore

No.6 Morse

Range of spindle speed

12 changes, 25∼2000r/min

Feeds and threads

Max.travel of top slide

128mm(5")

Max.travel of cross slide

285mm(11-1/4")

Max.section of tool

25×25mm(1"×1")

Pitch thread of leadscrew

6mm or 4T.P.I.

Longitudinal feeds range

42 kinds, 0.031∼1.7mm/rev(0.0011"∼0.0633"/rev)

Cross feeds range

42 kinds, 0.014∼0.784mm/rev(0.00033"∼0.01837"/rev)

Metric threads range

41 kinds, 0.1∼14mm

Inch threads range

60 kinds, 2∼112T.P.I.

Diametrical pitches range

50 kinds, 4∼112DP

Module pitches range

34 kinds, 0.1∼7MP

Tailstock

Dia. of tailstock sleeve

60mm(2-5/16")

Travel of tailstock sleeve

128mm(5")

Taper of tailstock sleeve

No.4 Morse

Motor

Power of main motor

5.5kW(7.5HP) 3PH

Power of coolant pump

0.1kW(1/8HP) 3PH

Dimension and weight

Overall dimension
(L×W×H) cm

220
×108×134

275
×108×134

325
×108×134

220
×108×137

275
×108×137

325
×108×137

Packing size(L×W×H) cm

225
×112×162

280
×112×156

330
×113×156

225
×112×162

280
×112×156

330
×113×156

Net weight

1670kg

1920kg

2070kg

1720kg

1970kg

2120kg

Gross weight

1980kg

2265kg

2450kg

2045kg

2330kg

2515kg

Standard accessories

3 Jaw chucka and adapter

Wrenches

Sleeve and center

Oil gun

Special accessories
4 Jaw chucka and adapter? Face plates
Steady rest? Quick change tool post
Follow rest? Driving plate
Taper turning attachment
