Specifications
GSM dialer module1.Can work with alarm system and phone
2.Simple to install and easy to maintain
3.Universal
4.Fashion D
GSM dialer module
Model:CX-GDA
This is designed to work with burglar alarm where don't have a telephone landline. All you need is a SIM card. It is simple to use, installation is straight-forward - just plug and go, and more important compatible with most burglar alarms .
Product Info
GSM Dialer Main Features:
1.Supports both GSM networks.can work with alarm system,Construct GSM system with each of our alarm system.
2.Simple to install and easy to maintain
3.4-Band :850-900-1800-1900mhz, universal.
4.backup battery
5.High quality but low price
6.Fashion Design
7.Support Caller ID and Hands free
8.LCD display
9.Caller ID display
GSM Dialer Features:
1.Supports both GSM networks and Phone.
2. Simple to install and easy to maintain
3. Allow PIN code entering and reciprocal phone-card lock
4. Moblile phone board item and Industrial module item are optional
5.Polarity reversal signal for metering
6.3.5dBi gain antenna
7.Compatible to PABX
8.Support Caller ID and Hands free
9.Outside antenna
10.Incoming numbers and dialing numbers block enable
11.Cost rate setting enable
12.Time,date,signal intensity display enable
13.LED Indicators for signal and power status
14.LCD dispaly
How to Work:

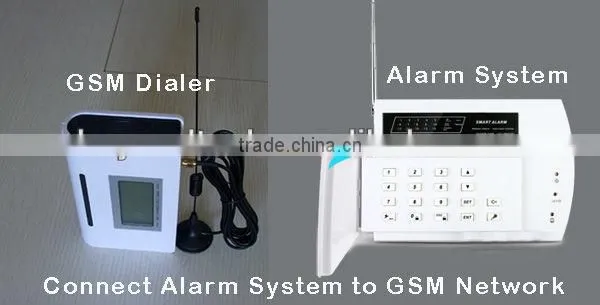

1. The GSM dialer can connect your alarm system to GSM network:
No land phone line needed. Simply connect GSM Dialer with the alarm control panel to dial out via GSM network. And you can also call in to control the system. 4-Band GSM frequencies:850/900/1800/1900MHz, can be used worldwide.

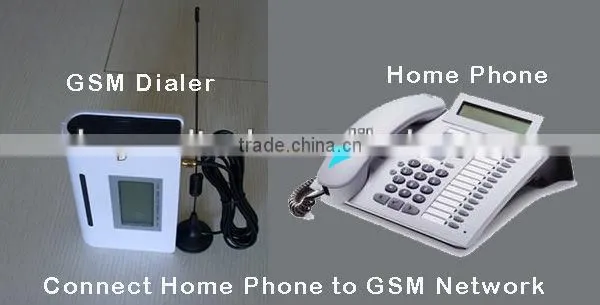

2. The GSM dialer can also connect your home phone to GSM network.
4-Band GSM frequencies:850/900/1800/1900MHz, can be used worldwide.
Specifications
GSM Dialer Specifications:
1) Networks support:GSM850/900/1800/1900MHz
2) Operation Temperature:-10--+45
3) Power supply: DC5V
4) Sensitivity: -104dB
5) Stand by hours: 48 Hours
6) Talk time: 2-6 Hours
7) Charging time: 6 hours
8)Peak power consumption: 2W
9)Connectors: SMA antenna connector (TNC optional)
10) Atmospheric pressure: 86~106Pka
11) Power consumption: static≤25 mA, emission≤500 mA
12) Antenna: Gain: 3.5dB (all directional) 12 dB(Certain/selection)
What's In
GSM Dialer Accessories in standard package:
1. gsm dialer *1pc
2. antenna*1pc
3. English Instruction Manual*1pc
4. power adaptor *1
NOTE: We can offer Home Alarm and Medical Alert System for you choose, if you have any necessary, please contact us .

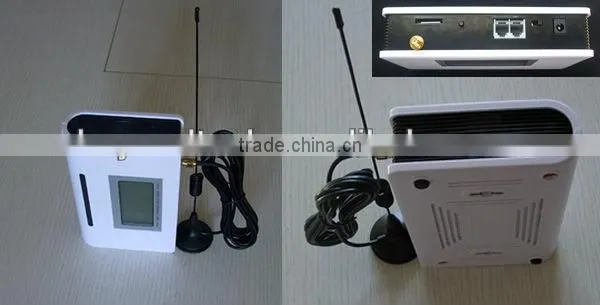

GSM Dialer Product physical diagram:
