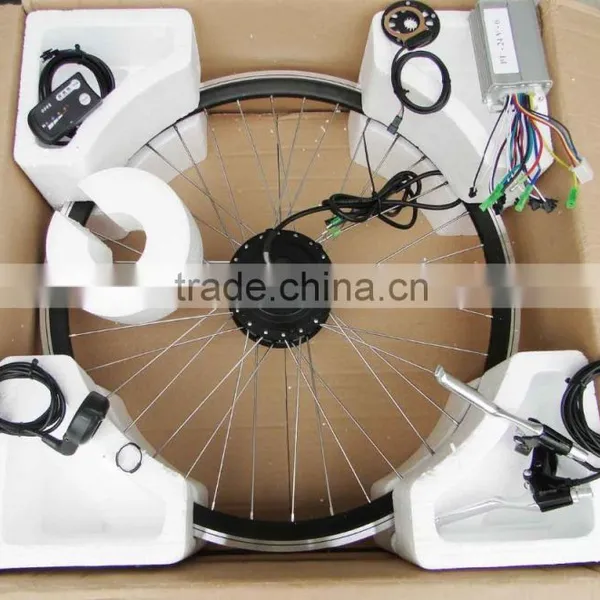

Electric Bicycle Kits Includes:
1x Brushless Motor
1x Intelligent Motor Controller
1x Pedal Assist Sensor Disk
1x Throttle
1x Brake Lever
1 X LCD display
1 X 48V 14ah rear rack battery
1 x connection line
1 x wheel with spoke
NO. |
Part Name |
QTY |
1 |
Hand-built motor wheel(spokes rim,motor) |
1 SET |
2 |
Battery&Charger(optional part) |
1 SET |
3 |
Controller&Controller case/bag |
1 PC |
4 |
Display |
1 PC |
5 |
Brake levers |
1 PAIR |
6 |
Throttle&grips |
Optional |
7 |
PAS |
1 SET |
8 |
ZIP ties, Screws,Protection pipe |
1SET |
Advantage:
1. This kits can be installed on standard normal bike frame easily, no need to change the frame.
2. High starting torque, Max torque≥80N, good performance on climbing
3.Double clutch is used on drive unit, more safety.
4. High efficiency, low consumption, long travel distance.
fat tyre electric bike kits prices
throttle and brake optional of fat tyre electric bike kits prices :
fat tyre electric bike kits prices ,Battery optional :
fat tyre electric bike kits prices ,controller optional :
ebike DIY kit includes:
a.burshless geared motor 1pc,
b.intelligent controller 6fets 1pc,
c.throttle 1pare,
d.brake lever 1pre,
e.36v8.8ah tube battery with charger 1pc.
f.LCD or LED display.
g.PAS with 8points magnet 1pc.
h.torque bar and motor washer .
All available electric bike kit list
| TOP SPEED TABLE | |||||
| Item/specification |
16inch wheel |
20inch wheel |
24inch wheel |
26inch wheel | 700C/28inch wheel |
| 36V200W geared motor | 260rpm / 20km/h | 208rpm / 20km/h | 174rpm / 20km/h | 160rpm / 20km/h | 149rpm / 20km/h |
| 36V250W geared motor | 365rpm / 28km/h | 292rpm / 28km/h | 243rpm / 28km/h | 225rpm / 28km/h | 208rpm / 28km/h |
| 36V350W geared motor | 417rpm / 32km/h | 334rpm / 32km/h | 278rpm / 32km/h | 257rpm / 32km/h | 238rpm / 32km/h |
| 48V250W geared motor | 391rpm / 30km/h | 313rpm / 30km/h | 261rpm / 30km/h | 241rpm / 30km/h | 223rpm / 30km/h |
| 48V350W geared motor | 457rpm / 35km/h | 365rpm / 35km/h | 304rpm / 35km/h | 281rpm / 35km/h | 261rpm / 35km/h |
| 48V500W geared motor | 496rpm / 38km/h | 397rpm / 38km/h | 330rpm / 38km/h | 305rpm / 38km/h | 283rpm / 38km/h |
| 48V350W gearless motor | 417rpm / 32km/h | 334rpm / 32km/h | 278rpm / 32km/h | 257rpm / 32km/h | 238rpm / 32km/h |
| 48V500W gearless motor | 457rpm / 35km/h | 365rpm / 35km/h | 304rpm / 35km/h | 281rpm / 35km/h | 261rpm / 35km/h |
| 48V1000W gearless motor | 496rpm / 38km/h | 397rpm / 38km/h | 330rpm / 38km/h | 305rpm / 38km/h | 283rpm / 38km/h |
YANGZHOU SAILI MOTOR CO.,LTD is a specialist of e-mobility components and complete systems and sells its products internationally.Our area of expertise is the production of systems for e-bikes and ebike kits. We are successful in Europe, South America and the United States.
We start our business with ebike systems in 2003, and we assemble the best and cheap ebikes to support customers all over the world.
We would like to invite the customers to visit us and talk about dreams together!
a.Warranty :motor is 3years ,battery is 18months,controller and charger are 1year.
b.OEM &ODM are available as customers demand.
c.We have professional team on conversion kit ,10years working experience engineers and sales .
d.Workers are well trained ,testing every single parts before packing.
e.Sales reply to you within 24hours .online time is long ,easy to contact .
f.After service is fast ,send replacement parts as soon as you send fault parts to check.
Q:What`s the different from geared motor and gearless motor ?
A:Geared motor inside is gears ,life time is about 3years ,gearless motor life time is 5years. geared motor is better at climbing.torque is powerful.efficienty is above 82%,better than gearless motor .
Q: What is the difference between front wheel and rear wheel?
A: Front wheel open size is 100mm, is easier to install ,10mins is ok . it is suitable for flat road riding. Rear wheel open size is 135mm, is better for hilly road and hill climbing, and motor can assemble speed gears.
Q:How to ship one sample ?
A:One sample is better shipping by air ,battery shipping by TNT only.sea shipping cost is low ,even free,but nearly all destination port charge is high ,similar as air shipping,but air shipping save a lot of time .
Transportation:
Why choose us ?
Because we are professional and best price ,pls feel free to contact us.we will reply to you within 24hours
