Specifications
10 Heads Automatic Vertical Packing Machinesuitable for : puffy food, crispy rice, jelly candy, pistachioapple slices

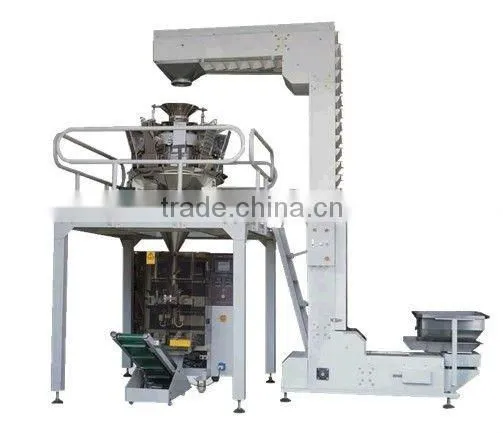

10 Heads Automatic Vertical Packing Machine
MAIN COMPONENTS:
- Main Frame 2. 10 heads weighter 3.Z type bucket elevator
- Vibration feeder 5. Supporting platform
It’s suitable to use in packing the high accuracy and easy fragile material, such as : puffy food, crispy rice, jelly candy, pistachioapple slices, dumpling, chocolate, medicine, pet food, small hardwares etc.
AUTOMATIC VERTICAL PACKAGING MACHINE
1. Main function/features:
2. Chinese/English touch screen, easy/convenient operation
3. PLC computerized control system, more steady operation. Set any parameters when using.
4. Storage 10 groups parameters for easier replace products
5. Servo Motor Packing film dragging, precise Positioning
6. Independent temperature control systems, precision can reach ± 1 °C
7. Independent control for Horizontal seal, vertical seal can be a good application of various composite film, PE film packaging material.
8. Packaging style diversification, back sealing, Gusseted; continue bags, punching and so on.
9. Product bag, sealing, packaging, date printing, all finish in one-time
SPECIFICATION:
Max.width of roll film |
420mm |
Bag length |
80-300mm(L) |
Bag width |
50-200mm(W) |
Packaging rate |
50-250bag/min(depends on the size) |
Measuring range |
150-1200ml |
Power voltage |
220V/2.2kw |
Dimension |
(L)1320*(W)950*(H)1360mm |
Weight of machine |
540kg |
10 HEAD WEIGHTER
- Perfect combination of high-precision and high-speed.
Instantaneously computing and selecting the best value from various weigting values
High-precision digital type weiting sensor brings the instantaneously weighting
- Chinese/english etc variouse language LED operation system
- IP65 waterproof and dustproof design. All parts are made of stainless steel, clean and sanitary. Full Sealed design prevents the accumulation of material and easy cleaning.
- Was measured according to the characteristics of material, recording the first batch of the total number of packages passing rate and single-bag error of such indicators.
- Optional devices: pattern scale hopper, set hopper, printing devices, ultra-poor sorting device.
Measure number |
10 |
Range of single weighing |
50-1000g |
Quantity precision |
0.1-1.5g |
Average tolerance of single bag |
0.2-0.7g |
Hopper capacity |
1300ml |
Net/gross |
300/370Kg |
Overall size |
(L)1400*(W)1130*(H)1120 |
