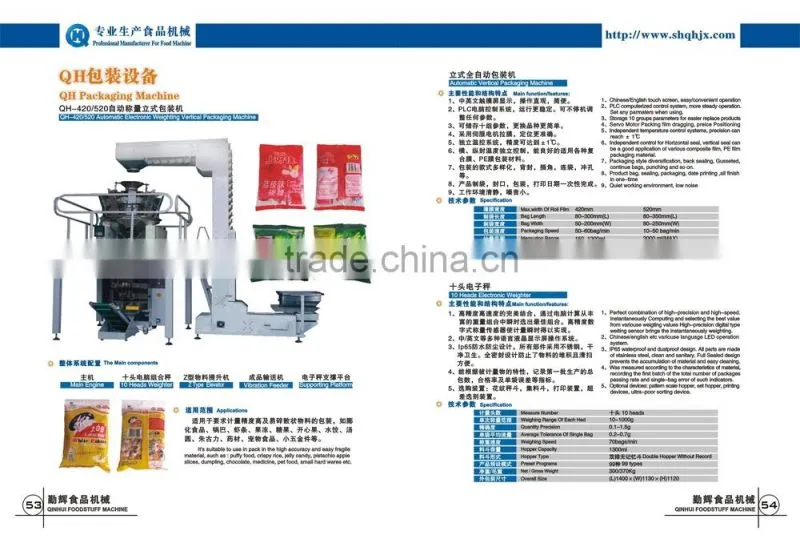

QH420/520 Automatic Electronic Weighting Vertical Packaging Machine
Specifications
10 Head Automatic Weighting and Vertical Packing Machine
1. PLC CONTROL
2.Automatic weighting

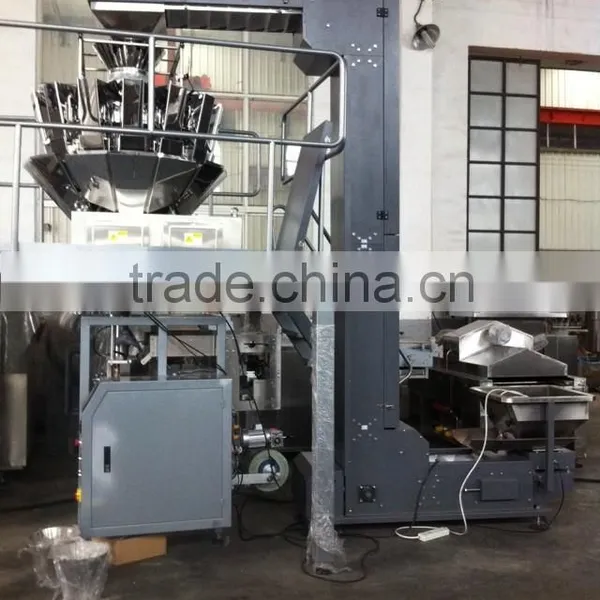

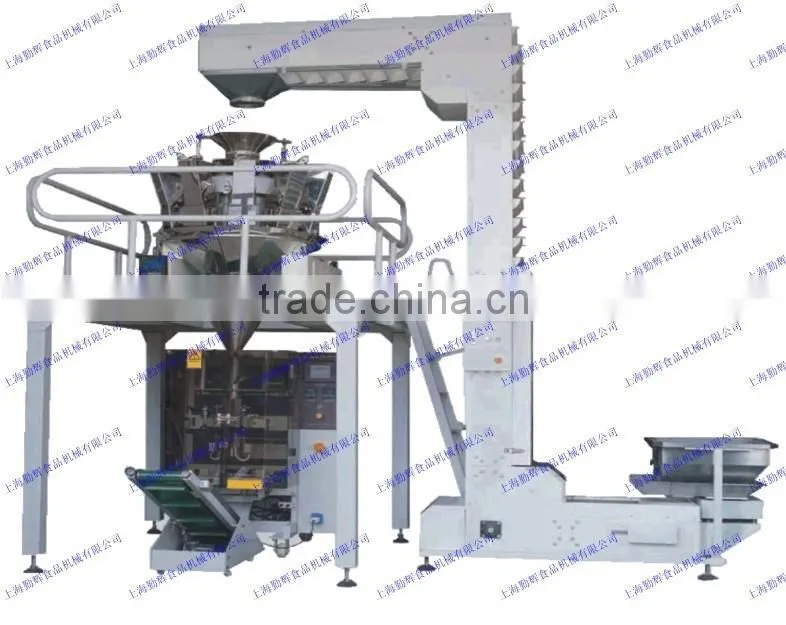

10 Head Automatic Weighting and Vertical Packing Machine
MAIN COMPONENTS:
1. Main Frame 2. 10 heads weighter 3.Z type bucket elevator
4. Vibration feeder 5. Supporting platform
It’s suitable to use in packing the high accuracy and easy fragile material, such as : puffy food, crispy rice, jelly candy, pistachioapple slices, dumpling, chocolate, medicine, pet food, small hardwares etc.
AUTOMATIC VERTICAL PACKAGING MACHINE
SPECIFICATION:
Max.width of roll film | 420mm | 520mm |
Bag length | 80-300mm(L) | 80-350mm (L) |
Bag width | 50-200mm(W) | 80-250mm (W) |
Packaging rate | 50-250bag/min(depends on the size) | 50-250bag/min(depends on the size) |
Measuring range | 150-1200ml | 2000ml(MAX) |
Power voltage | 220V/2.2kw | 220V/4kw |
Dimension | (L)1320*(W)950*(H)1360mm | (L)1750×(W)1150×(H)1800 |
Weight of machine | 540kg | 800kg |
10 HEAD WEIGHTER
Measure number | 10 |
Range of single weighing | 50-1000g |
Quantity precision | 0.1-1.5g |
Average tolerance of single bag | 0.2-0.7g |
Hopper capacity | 1300ml |
Net/gross | 300/370Kg |
Overall size | (L)1400*(W)1130*(H)1120 |
