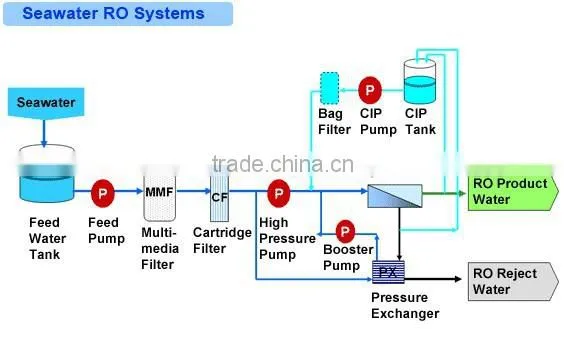

Sea water treated by this system can be drinked directly. Use RO technique to treat sea water.
The seawater's conductivity can be 38000ppm, the output pure water is less than 600ppm.
Type |
Capacity of pure water (L/h) |
Working pressure (Mpa) |
Electricity power consumption/Ton pure water (degree) |
Overall dimension (CM) |
JM-SW1 |
50 |
4-6.5 |
15 |
140×75×72 |
JM-SW2 |
100 |
4-6.5 |
11 |
140×75×72 |
JM-SW3 |
150 |
4-6.5 |
9 |
140×75×72 |
JM-SW5 |
250 |
4-6.5 |
8 |
140×75×72 |
JM-SW8 |
300 |
4-6.5 |
7.9 |
130×66×160 |
JM-SW10 |
500 |
4-6.5 |
7.8 |
130×66×160 |
JM-SW15 |
750 |
4-6.5 |
7.5 |
130×66×160 |
JM-SW20 |
1000 |
4-6.5 |
7.4 |
130×66×160 |
JM-SW30 |
1500 |
4-6.5 |
7.2 |
130×66×160 |
JM-SW40 |
2000 |
4-6.5 |
7.1 |
130×66×160 |

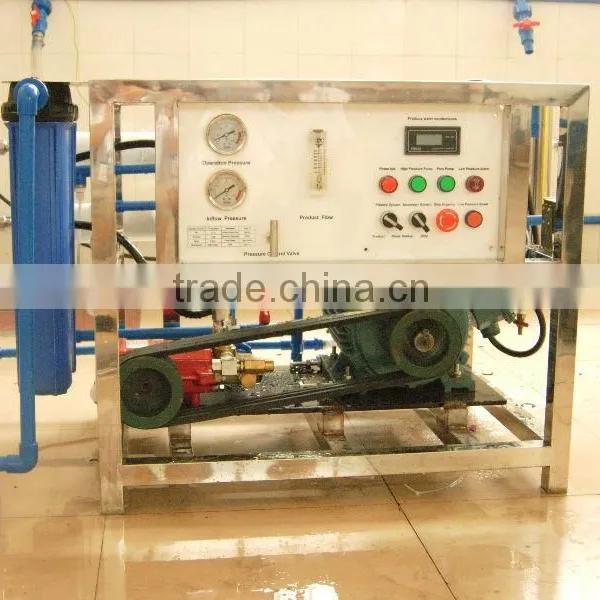

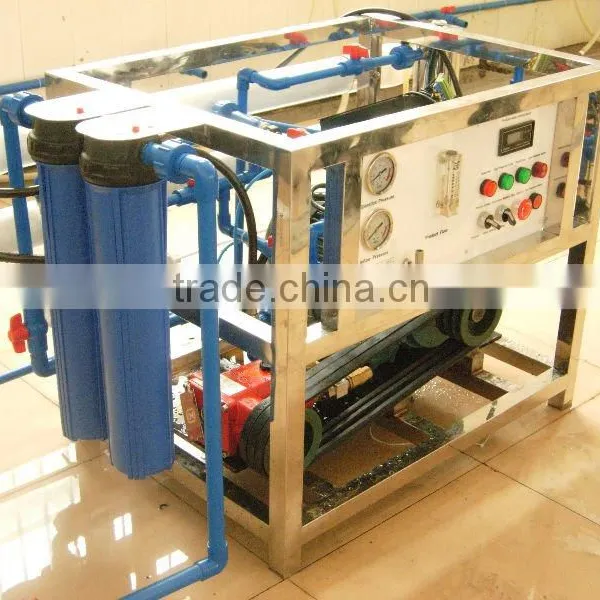

Description of technology
JM-SW series marine seawater desalination equipments are designed and manufactured as our customers’ requirements completely according to special application of boats and yachts, small and light, saving more space, convenient to install, adaptable to many place for installation, such as narrow and crowed cabin,deck,crew space,passageway etc. This kind of equipments easily operate and conveniently maintain, as long as there is seawater and electricity, it can provide fresh water immediately as soon as it starts. Desalination equipments remove salt highly, stable performance, safe and reliable, innovative design, avoid wash frequently, and without environment pollution. Its frame is made of stainless steel, anti-rust and anti-corrosion. Applicable electric power (380V/50Hz or 440V/60Hz), they can be available for a majority of boats and yachts.
Main parts of the machine

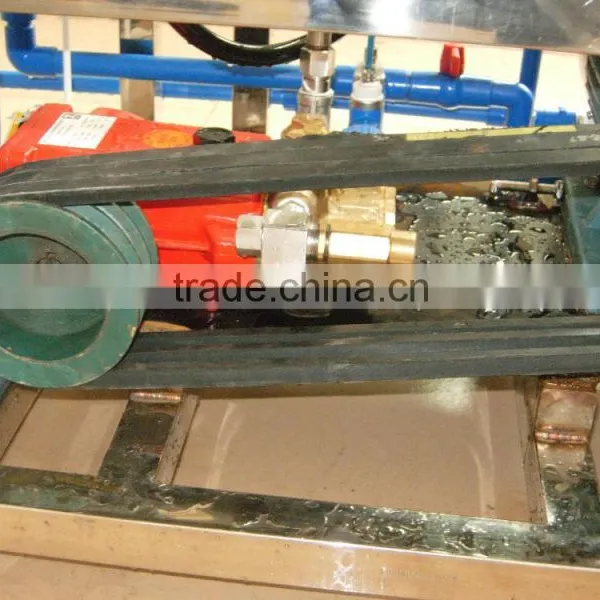

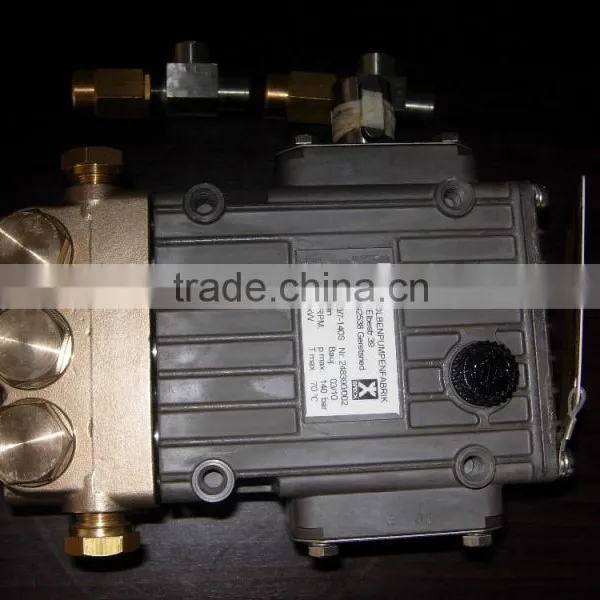

SS316 CNP brand raw water pump, activated carbon and quartz sand filter, pp sediment filter, Filmtec seawater desalination reverse osmosis membranes. Chemicals feeding washing tank, German SPECK HP pump wich is installed with brass pump head.
Optional machine
chemicals doing machine, equiped with chemicals dosing box. Being convenient for you to dose antiscalant and flocculant and so on.
500L/H sea water desalination equipment with small volume, light weight, spatial advantage, suitable for small boat and yatch.
