Main functions

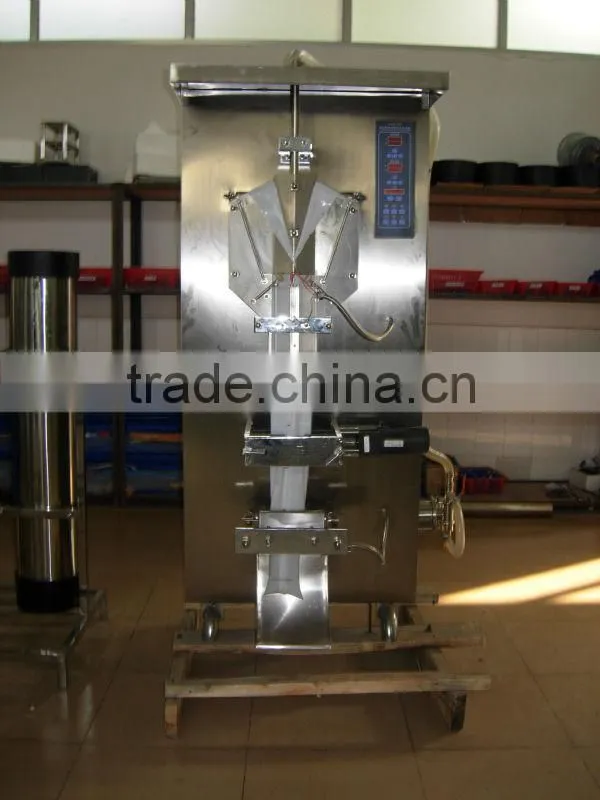

The machine can automatically complete bag-making,filling,sealing ,printing ,cutting controlled by microprocessor and automatic photocell. It can pack kinds of non-carbon liquid material widely, especially source, vinegar, syrup, beverage, confect beverage(also the cold beverage makes ice bag), soy milk, mineral water, greese bean curd and liquid sack.
C, Technique parameters
3.1. production capacity:1500~2200B/H
3.2. Packing volume:100~500ml/B
3.3. Filling precision:±1%
3.4. Film width:240mm or 320mm(optional or choose others)
Power:Moter:singel phrase,three phrases 1.1KW
Vertical hot seal: 0.3KW;Horizonal hot seal: 0.5KW
UV sterilizer lamp15KW
3.5. Power supply:AC220V/Hz or AC380V(three phrases)
3.6. The weight of the machine:360kg
3.7. Dimension(L×W×H):750*700*1700mm
D,Function
1,sack molding 2,UV sterilizer 3,Vertical cutting hot seal
4,Date composed 5,beeline tows sack 6,ration filling
7,Horizonal cutting hot seal 8,Cutting sack 9,count automatically
Main Technological Data | ||
Model |
YF-1000 |
|
Production Capacity |
1500-2200BAGS/H |
|
Filing Range |
100-500ML(1000MLcan be customized) |
|
Voltage |
AC220V-380V/50-60HZ 1.8KW |
|
Paper-offering Motor |
250W/220V |
|
Power of Hot Sealing |
vertical sealing |
300W 500W |
horizontal sealing | ||
Main Motor Power |
370W/380V/220V |
|
Overall Dimension |
1000×800×2000MM |
|
Weight |
450KG |
|
Main configuration:
Num. |
Sign |
Qty. |
Item |
Spec. and model |
Memo |
1 |
FD |
2 |
screw fuse |
RFI-10A |
|
2 |
XWK |
2 |
Process switch |
JFXK1-441 |
|
3 |
K |
4 |
switch |
MK211B/n81 |
|
4 |
ZZ |
1 |
UV lamp tube |
ZWS series 15W/220V |
|
5 |
JC |
1 |
AC Contactor |
CJ46-9 |
10A/220V |
6 |
JJ |
1 |
electromagnetic counter |
LFC-5 |
AC220V |
7 |
TE |
2 |
temperature controller |
TE-2601 |
|
8 |
RE |
2 |
thermocouple |
E,EA2 |
(a set) |
9 |
SRM3 |
1 |
Tubiform Electro-heating element |
Φ20 stainless stell shell |
300W(vertical seal) |
10 |
SRM5 |
1 |
Tubiform Electro-heating element |
Φ20 stainless steel shell |
500W (horizontal seal) |
11 |
D |
|
motor |
0.37KW/1.1KW |
|
12 |
Q |
1 |
Electricity-leakage protector |
DZL18-20 |
|
