Automatic purified/mineral water big bag filling equipment

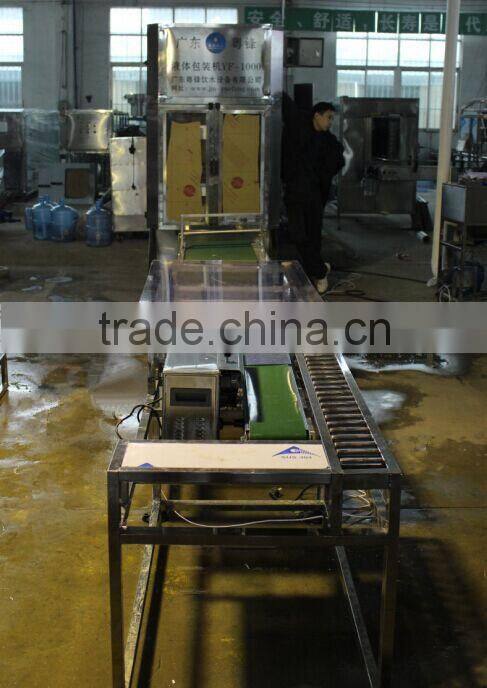

GF-DZS-7500 Mold Auto bag(pouch) water filling machine is meetingmarketing demands, reducing the frequency of recycling bottle to result the secondary pollution and cost down for users. We research and develop the automatic bag water filling machine which is scientific, environment friendly, economic, health by own self especially. The facility use the 304 stainless steel plate as the appearance cover and it is new-design, good –looking, strong , clear working process and easy maintenance.The electrical appliances adapt the imported electric and PLC automatic controller.The operation of the touch screen make the user modify data convenience and directly.
This machine is high precision packing machine and the most advanced liquid compound packing machine in China ,which is standing ,three side sealing and intermittent it can automatically complete Bag-making,filling sealing printing ,cutting and counting.
Functions
1.The machine adopts the stepping motor and electric cylinder to control the sealing film and cutting film, and use the frequency conversion circuit to overlay film and send film. The machine performance is more accurate and stable.
2. Beauty sealing, neat cutting, narrow sealing edge. It saves 3% films than hot plate sealing.
3.The new electric cylinder type has excellent performance and operating mode. It owns strong adaptability so that the users only need water and electricity instead of gas source.
4. The power consumption of electric cylinder is just 1/6 time of air compressor.
5.The touch-screen allow customers to operate the machine more direct, simple and convenient.
6.The machine is equipped with ultraviolet light sterilization, chlorine dioxide and water washing function. The film gets to be disinfected, sterilized and washed by water, and then be fold bag.
7.The sterilization,disinfection,washing and folding bag to reduce secondary pollution to pure water
8.The machine can exchange bag between 3L to 10 L without changing any equipments. Convenient for users, small investment, quick advantage.
9.The machine high return on investment is the best choice for users venture
The technical data of the machine
Model |
GLF-DZS-7500 |
packing method |
Auto Forming, Heat Seal |
Power supply |
380V/220V/50hz |
Power |
3.2KW |
production capacity |
600-800 BAGS/H |
Film width |
750mm |
finished width |
360mm |
Filing Range |
≤12.5kg |
Weight |
1200kg |
Overall Dimension |
2160mm×1500mm×1030mm |

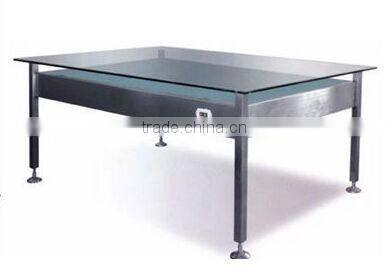

1.sachet water inspection table

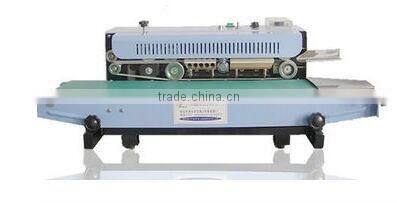

2. sachet water sealer

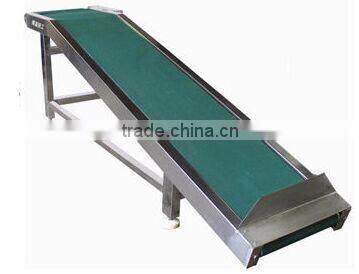

3.sachet water conveyor
