drinking water pouch filling machines
1) Technical Features:
1. Adopts the man-machine conversation interface,PLC and the transducer communicating with each other to display and control the each functions and the running state, stable and reliable.
2. The Double channel temperature of the horizontal and vertical is controlled by intelligent temperature controlling device.
3. Intelligent photo cell orientation, transform discretionarily between the light/shade. Strongly anti-jamming, when two bags can’t catch up with the upper mark the machine will stop and give an alarm.
4. The packaging speed can be adjusted continuously within specified range. Orientation open mouth and stop.
5. The integrative cutter has a device of dustproof with it. It is very easy to adjust the cutter’s position.
6. The bag-making has high precision. Easily Operation and maintain.
7. Having functions just like paper cutting,bag-stopped up,safe door detecting and so on.
8. Measurement adopts adjustable cup method, which is accorded with the national measurement standard
2) Main functions
This machine is high precision packing machine and the most advanced liquid compound packing machine in China, which is standing, three sides sealing and intermittent. It can automatically complete Bag-making, filling, sealing, printing, cutting and counting .Controlled by microprocessor and automatic photocell.
3) Application:
It is widely used to pack all kinds of liquid without gas, especially soy, wine, vinegar, juice, soybean milk, peanut oil, vegetable oil, plant oil, mineral water and liquid chemical
3) Specification:
Model |
YF-1000 |
packing method |
Auto Forming, Heat Seal |
Power supply |
380V/220V/50hz |
Power |
3.2KW |
production capacity |
600-800 BAGS/H |
Film width |
750mm |
finished width |
360mm |
Filing Range |
≤12.5kg |
Weight |
1200kg |
Overall Dimension |
2160mm×1500mm×1030mm |
4)Equipment function:
(1) sack molding (2)UV sterilizer (3)Vertical cutting hot seal
(4)Date composed (5)beeline tows sack (6)ration filling
(7)Horizontal cutting hot seal (8)Cutting sack (9)count automatically

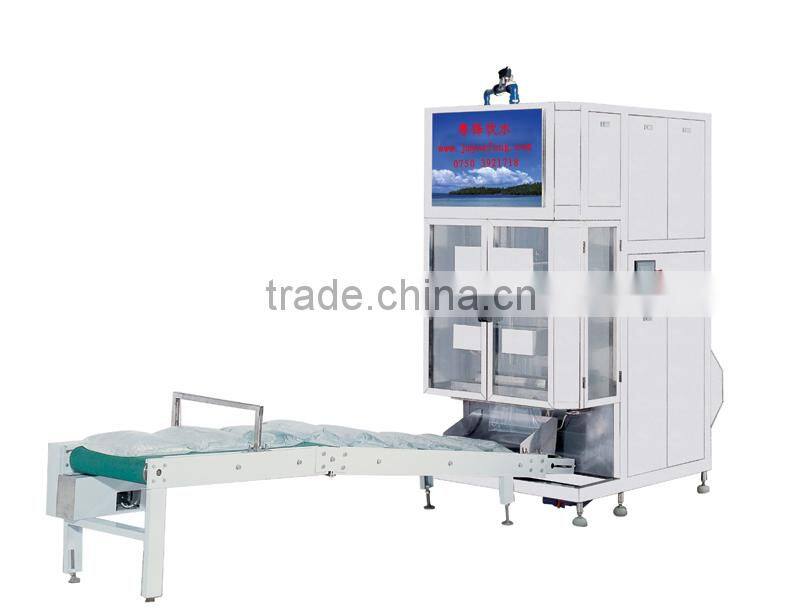

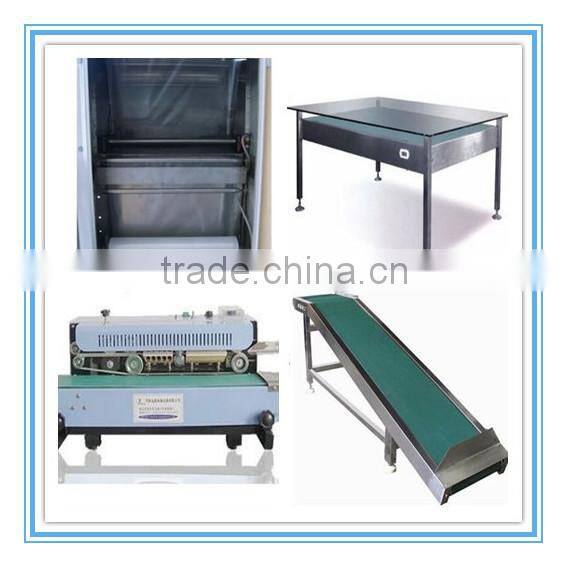

Reference pictures:
