ZTE 1150-5T, 5FE RJ45, ZTE 1150-8T, 8FE RJ45 ZTE ZXR10 1150 1160 1000
ZXR10 1000 Series Intelligent Switch
The ZXR10 1000 series intelligent Ethernet switches of ZTE are designed for access layers to enable fast deployment and convenient access. This series includes two types, i.e. unmanaged and WEB-managed ones. So these switches can be widely used in many scenarios, e.g. small and middle-sized enterprises, hotels and cybercafes, etc.

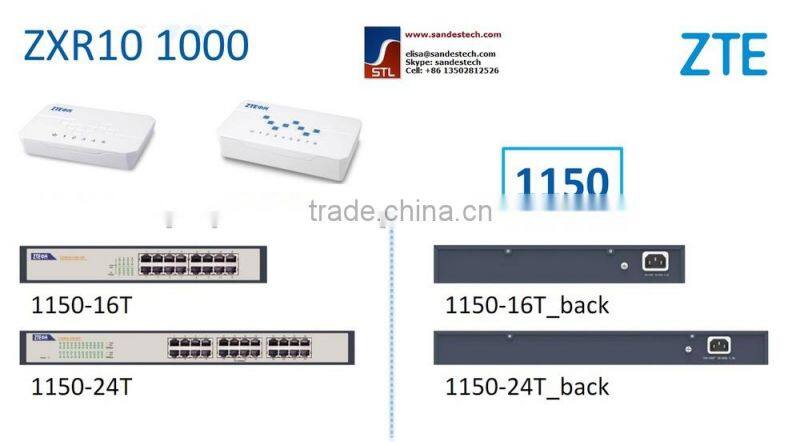

Totally there’re 8 models of ZXR10 1000 series unmanaged intelligent Ethernet switches:
1150-5T: 5FE RJ45
1150-8T: 8FE RJ45
1150-16T: 16FE RJ45
1150-24T: 24FE RJ45
1160-5T: 5GE RJ45
1160-8T: 8GE RJ45
1160-16T: 16GE RJ45
1160-24T: 24GE RJ45
There are 4 models of ZXR10 1000 series web-managed intelligent Ethernet switches:
1660-10TS: 8*GE RJ45+2*GE SFP
1660-16TC: 16*GE RJ45(2*GE combo)
1660-24TC: 24*GE RJ45( 4*GE combo)
1660-24PC:24*GE POE/POE+(4*GE combo)
ZXR10 1000 series unmanaged intelligent Ethernet switches
Specifications |
1150-5T |
1150-8T |
1150-16T |
1150-24T |
1160-5T |
1160-8T |
1160-16T |
1160-24T |
|
The number of fixed ports |
5FE RJ45 |
8FE RJ45 |
16FE RJ45 |
24FE RJ45 |
5GE RJ45 |
8GE RJ45 |
16GE RJ45 |
24GE RJ45 |
|
Basic parameters |
Switching capacity |
1G bps |
1.6G bps |
3.2G bps |
4.8G bps |
10G bps |
16G bps |
32G bps |
48G bps |
Packet forwarding rate |
0.74 MPPS |
1.19 MPPS |
2.38 MPPS |
3.57 MPPS |
7.44 MPPS |
11.9 MPPS |
23.8 MPPS |
35.7 MPPS |
|
MAC table capacity |
1k |
2k |
8K |
8K |
2k |
8K |
8K |
8K |
|
Physical parameters |
Size (W*D*H) |
98 mm *71 mm *29mm |
133 mm *72 mm *28mm |
294 mm *180 mm *44mm |
440 mm *180 mm *44 mm |
128 mm *96 mm *31mm |
172 mm *108 mm *32mm |
294 mm *180 mm *44 mm |
440 mm *180 mm *44 mm |
Weight |
0.17kg |
0.23 kg |
1.3 kg |
1.8 kg |
0.19 kg |
0.26 kg |
1.55 kg |
2.3 kg |
|
AC power supply |
100V~240V,50Hz~60Hz (power adapter) |
100V~240V,50Hz~60Hz |
100V~240V,50Hz~60Hz(power adapter) |
100V~240V,50Hz~60Hz |
|||||
Maximum power consumption |
1.5W |
1.5W |
1.48W |
2.63W |
3.3W |
5.6W |
8.2W |
10.3W |
|
Long-term working environment |
0℃-40℃ (32℉~104℉), 10%~90% non-condensing |
||||||||
Storage environment |
-40℃-70℃ (-40℉~158℉), 5%~90% non-condensing |
||||||||
ZXR10 1000 series WEB-managed intelligent Ethernet switches
Specifications |
1660-10TS |
1660-16TC |
1660-24TC |
1660-24PC |
|
The number of fixed ports |
8*GE RJ45+ 2*GE SFP |
16*GE RJ45(2*GE combo) |
24*GE RJ45(4*GE combo) |
24*GE POE/POE+(4*GE combo) |
|
Basic parameters |
Switching capacity |
20Gbps |
32Gbps |
48Gbps |
48Gbps |
Packet forwarding rate |
14.9Mpps |
23.8Mpps |
35.7Mpps |
35.7Mpps |
|
MAC table size |
8K |
||||
Physical parameters |
Size(W*D*H) |
294mm *180 mm *44mm |
440 mm *220 mm *44 mm |
440 mm *330 mm *44 mm |
|
Weight |
1.45kg |
2.7kg |
3kg |
5.36kg |
|
AC power supply |
100V~240V,50Hz~60Hz |
||||
Maximum power consumption |
10.7W |
14.7W |
23.3W |
401.3W (System power consumption81.3W,POEpower output320W) |
|
Working environment |
Working temperature:0℃~40℃ (32℉~104℉),humidity: 10%~90%non-condensing |
||||
Storage environment |
Storagetemperature: -40℃~70℃ (-40℉~158℉);humidity: 5%~90%non-condensing |
||||
