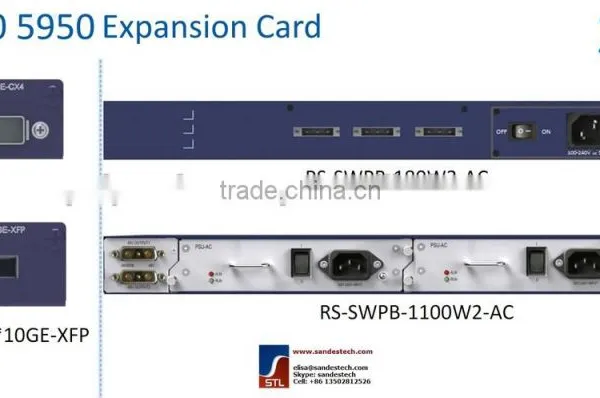

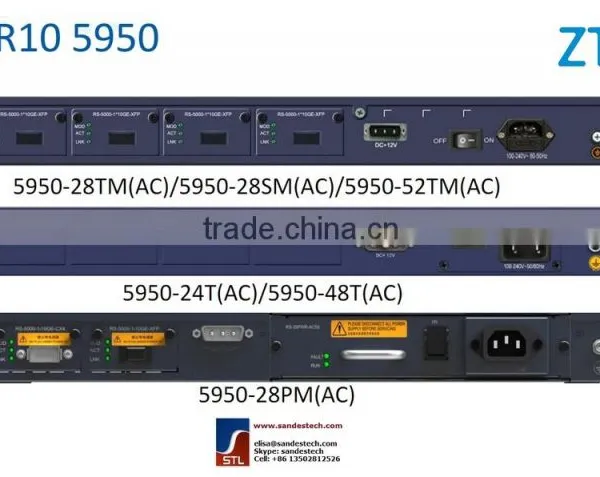

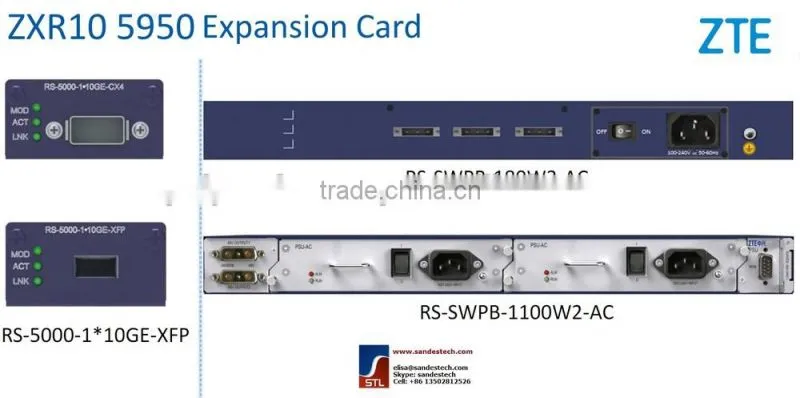

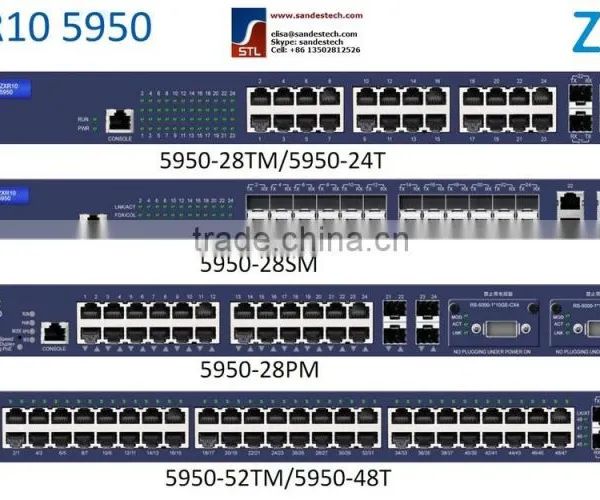

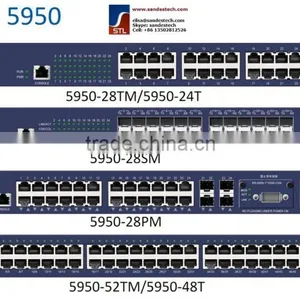

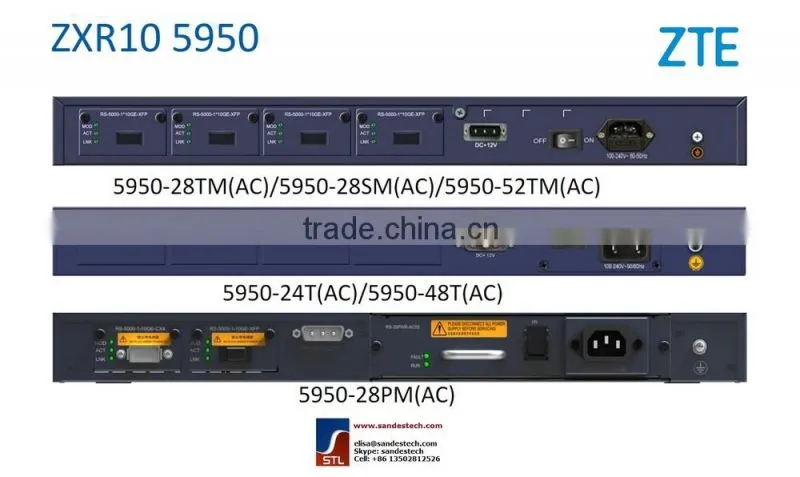

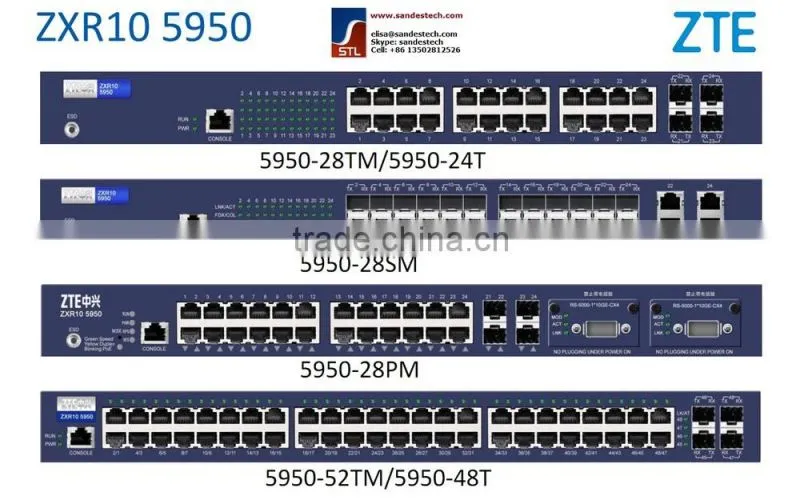

ZTE 5950-28TM, RS-5950-28TM-AC, 20 GE RJ45,4 GE Combo+4 expansion card ZTE ZXR10 5950

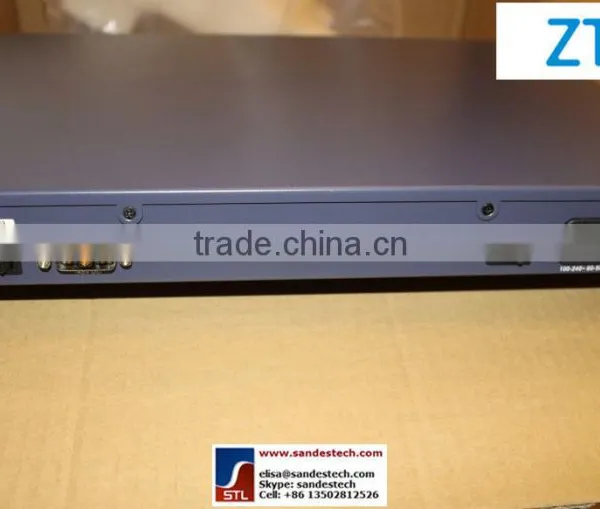

orginal packaging

ZTE 5950-28TM, RS-5950-28TM-AC, 20 GE RJ45,4 GE Combo+4 expansion card ZTE ZXR10 5950

ZXR10 5950 Series All Gigabit Intelligent Routing Switch

Overview

ZXR10 5950 series all 10Gigabit switches are box-like layer 3 10Gig MPLS routing switches that deliver ultra-big switching capacity, carrier-grade reliability and superior scalability.

With support to abundant Datacenter related features including virtual switching and lossless Ethernet, 1RU height, optional back-to-front/front-to-back airflow, ZXR10 5950 is suitable to act as a Datacenter TOR.

Featuring full L2/L3/MPLS capability, ZXR10 5950 is also a good choice for 10Gig aggregation purpose in campus network, especially in space constrained environments.

Advantages

High Density 10Gig Interface Box

ZXR10 5960-32DL can provide maximally 32 10Gig interfaces and 640Gbps throughput, while ZXR10 5960-64DL can provide maximally 64 10Gig interfaces and 1.28Tbps throughput.

With such strong switching capacity and high density 10G interfaces, it enables the deployment of large amount of servers with 10 interfaces. With ZXR10 5960, high density 10Gig aggregation can also be achieved in campus network/enterprise network.

 Scalable uplink interface card

ZXR10 5960 supports 40Gig uplink interfaces; 5960-32DL can provide maximally 2 40Gig QSFP interfaces, while 5960-64DL can provide maximally 4 40Gig QSFP interfaces. Each 40Gig interface can be optionally configured as 4 10Gig interfaces.

Full Service support

ZXR10 5960 supports diversified VLAN features, including  Port-based VLAN, Subnet VLAN, Protocol-based VLAN, Selective QinQ, VLAN translation in order to separate/distinguish different user's different services in different scenarios.

ZXR10 5960 supports Voice VLAN, which means the automatic assignment of dedicated VLAN and QoS strategy to voice equipments, thus enabling the voice traffic to enjoy high priority.

Multicast based technologies like video surveillance/tele-presence are important services for Enterprise users nowadays. ZXR10 5960 fully supports L2/L3 multicast, including IGMP snooping, Filtering, Proxy and Fast-leave, MVR (Multicast VLAN Registration) and PIM-SM to facilitate the deployments of these services.

ZXR10 5960 fully support MPLS L2/L3 VPN, providing an economical reliable VPN solution for commercial uses.

ZXR10 5960 also supports MCE, enabling it to run multiple VPN instances without running MPLS, relieving pressure on the PE (provider edge) equipment.

Industrial-Grade Reliability and Security

ZXR10 5960 adopts dual redundant modular fan and dual modular power supply design.

ZXR10 5960 supports the software image backup, promoting the capability to recover from disaster and failures.

ZXR10 5960 supports diversified mechanisms to guarantee the security of the network:

CPU DDOS protection capability helps the equipment to mitigate the influence caused by attacks. Equipment itself won't be brought down to maintain the network stability.

DAI (Dynamic ARP inspection) function and IP/MAC binding help prevent against DOS (Denial of Service) attacks.

With ZESR (ZTE Ethernet Smart Ring) and ZESS (ZTE Ethernet Smart Switch) capabilities, ZXR10 5960 can provide resilience solution in ring topology and dual-homing topology networks, while the time for switchover can be less than 50ms. With multi-instance capability, the network bandwidth can also be used with highest efficiency.

ZXR10 5960 supports MC-LAG (multi-chassis link aggregation), providing another dual-homing method while posing no extra requirements to peering devices.

Easy-Maintenance

The direction of 5960's airflow can be adjusted by using different fan modules. Users can select back-to-front airflow or front-to-back airflow at will, which is especially useful in Data Center networking scenario. Holes for ventilation purpose locate on side panels/ and front/rear panels helps the air flows more smoothly.

The innovative M-Button function enables the manager to fetch important equipment information including port/memory/CPU status in case of network problems by reading the interface indicators, enabling instant trouble-shooting, and thus reduce OPEX to the utmost extent by shrinking network down time. M-button adds no more investments; only extra meanings are bestowed to the status of the interface indicators.

ZXR10 5960 supports Zero Configuration, which means the switch can automatically download software images and start-up configurations. Zero configuration truly enables plug and play and reduces the requirement for experienced engineers.

ZXR10 5960 supports ALS (Automatic Laser Shutdown), protecting equipment administrator against laser injury and saving energy at the same time.

Green and Energy Efficient

ZXR10 5960 adopts the advanced chip technology, so the power consumption of the main chip can be dramatically reduced.

More holes in front panel for airflow, enhance heat dissipate.

Low-noise fan is adopted for ZXR10 5960, making it user-friendly and energy efficient at the same time, multi-level fan speed adjustment.

The materials used during the life span of 5960 completely meet RoHS standards.
