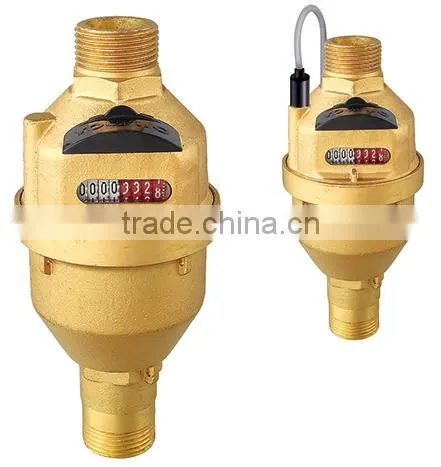

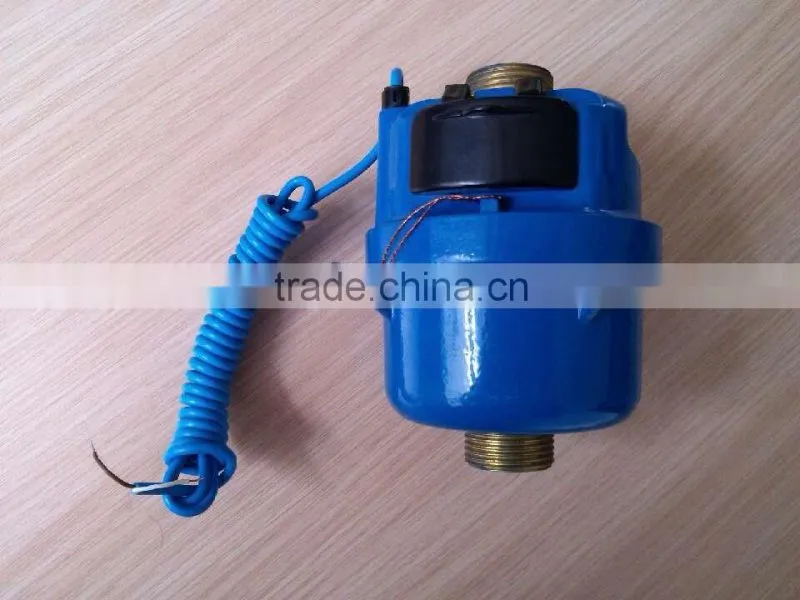

Help CenterVolumetric Water Meter With Pulse Output
Related Products
-
ISO4064 Class C Plastic Rotary Water Meter Volumetric MeterUS$ 10.8 - 13MOQ: 1000 Pieces -
Younio Brass Body Volumetric Water Meter ISO4064 Class C DN15~DN40US$ 10.8 - 177MOQ: 1000 Pieces
-
Plastic Rotary Piston Water Meter Volumetric MeterUS$ 10.8 - 13MOQ: 1000 Pieces
-
Plastic Rotary Water Meter Volumetric MeterUS$ 10.8 - 13MOQ: 1000 Pieces
-
Drinking Water Flow MeterUS$ 10.8 - 13MOQ: 1000 Pieces
Specifications
Remote Transmission Pulse Output,with rotary piston system,brass body,liquid sealed register,
high measuring accuracy,Class C
Features:
Rotary piston system.long service life
Dry-dial or liquid sealed register,keeps clear reading for long time°c
High measuring accuracy,the starting flow of the meter is 2 L/Pulse or less
Can be installed in any position
Brass body,m³ or gal,optional
Remote transmisson can be added upon request
Many kinds of sensors,such as Reed Switch,Hall and Weagand can be supplied upon request
Pulse output maybe 1L/Pulse
ISO 4064 :1993 Class C
ISO 4064:2005 R160/R200
Working condition:
Water temperature 50°c
Water pressure≤1MPa
(PN:1.6MPa/16bar)
ΔP≤0.1MPa(Class C/Class D)
ΔP≤0.063MPa(R160/R200)
Accuracy:
From minimum flow-rate(qmin/q1)inclusive, to transitional flow-rate(qt/q2),exclusive:±5%
From transitional flow-rate (qt/q2)inclusive,to overload flow-rate(qs/q4),exclusive::±2%
Technical Data:
| DN/Q | Q4=1.25Q3 Q3 | R=Q3/Q1 | Q2=1.6Q1 Q1 | R=Q3/Q1 | Q2=1.6Q1 Q1 |
| l/h | l/h | l/h | |||
| 40 | 20000 16000 | 160 | 160 100 | 200 | 128 80 |
| Nominal size DN9mm) | Classof measurement | Overload flow-rate qs | Permanent flow-rate qt | Transitional flow-rate qt | Minimum flow-rate qmin | Minimum reading Min | Maximum reading Max |
| 40 | C | 20 | 10 | 150 | 100 | 0.0001 | 9999 |
Overall dimensions and weight:
| Type | Size(mm) | Length(mm)L | Width(mm)W | Height(mm)H | Connecting Thread D | Weight (kg) |
| LXH-40 | 40 | 358 | 227 | 152 | G2"B | 4 |
IN STANDARD EXPORTED CARTONS
CAN BE PACKED IN PALLETS
Cheapest prices than any other water meter companies in China ;
Our goal is to help your business buy what money can not ;
Choice us is your smart,sensible and wise choice;
OEM Service can be offered.
27/9/2011, The Water Meter Production Base of Zhejiang Younio ( Zhejiang Younio Water Supply Equipment Co., Ltd) standed alone and set up a wholly-owned subsidiary - Wenling Younio.(Wenling Younio Water Meter Co.,Ltd), whose registered capital is RMB30 million.
08/12/2011,Zhejiang Younio signed an official agreement with Jiangxi Sanchuan which state that Jiangxi Sanchuan will be controlling shareholder and bring Wenling Younio going public.
01/01/2012,Wenling Younio start to run And we are planning to be the biggest water meter export base in China within next three years.
Wenling Younio. covers an area of more than 5000 square meters with a staff of more than 150,owning design and R&D center,accessories production center, whole machine production center,inspection and testing center.We are now capable of producing about 2 million pieces water meters annual.We have successively passed the certificate of ISO9001:2008 Quality System Certification, the certificate of ISO14001:2004 Environmental Management System Certification and the certificate of GB/T 28001:2001 Occupational health and safety management system certification.With a wide variety and a complete range of specifications.Our products are exported to many countries in the world such as Eastern Europe,South America,Africa and the Middle East,etc.Exports accounted for more than 85%.
