Specifications

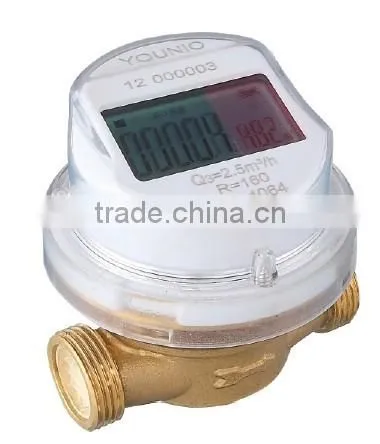

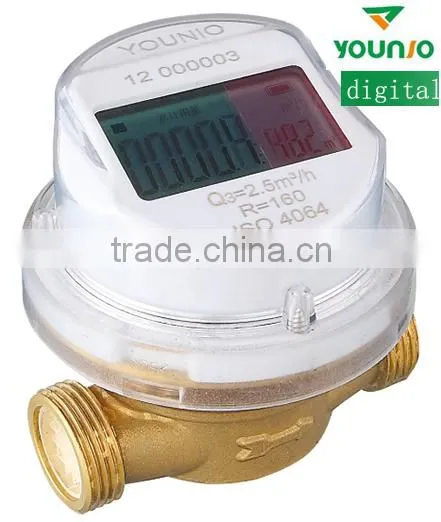

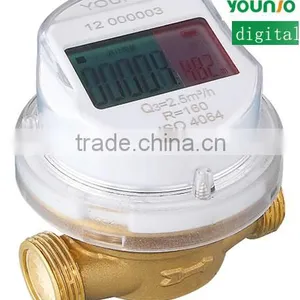

R160 Digital water meterDN1/2'
LXSG-13D6d
Single jet dry type DIGITAL water meter
Features
Dry register, Small,light, Brass body
Body can be painted or nickel coated
For cold water
High accuracy
ISO 4064 :1993 Class B
ISO 4064:2005 R80/R100
Working condition
Water temperature 50°c
Water pressure≤1MPa
(PN:1.6MPa/16bar)
ΔP≤0.1MPa(Class B/)
ΔP≤0.063MPa(R80/R100)
Accuracy
From minimum flow-rate(qmin/q1)inclusive, to transitional flow-rate(qt/q2),exclusive:±5%
From transitional flow-rate (qt/q2)inclusive,to overload flow-rate(qs/q4),exclusive::±2%
Electrical Parameter
Battery Voltage:3.6V
Output:1.100L/Pulse
2.M-bus
Protection class: IP68
Technical Data
| DN/Q | Q4=1.25Q3 Q3 | R=Q3/Q1 | Q2=1.6Q1 Q1 | R=Q3/Q1 | Q2=1.6Q1 Q1 |
| l/h | l/h | l/h | |||
| 15 | 3125 2500 | 160 | 25 15.625 | 100 | 25 15.625 |
| DN/Q | Class of measurement | Overload flow-rate qs | Permanent flow-rate qt | Transitional flow-rate qp | Minimum flow-rate qmin |
| 15 | C | 3 | 1.5 | 22.5 | 0.01 |
Overall dimensions and weight
| Type | Size(mm) | Length(mm)L | Width(mm)W | Height(mm)H | Connecting Thread D | Weight (kg) |
| LXSGR-13D6 | 15 | 80 | 74.5 | 79 | G 3/4 "B | 0.5 |
IN STANDARD EXPORT BOX AND CARTONS
CAN BE PACKED IN PALLETS
SHIPPING MARK ACCORDING TO CUSTOMER REQUIREMENT
Cheapest prices than any other water meter companies in China.
Our goal is to help your business buy what money can not.
Choice us is your smart,sensible and wise choice.
OEM Service can be offered.
27/9/2011, The Water Meter Production Base of Zhejiang Younio ( Zhejiang Younio Water Supply Equipment Co., Ltd) standed alone and set up a wholly-owned subsidiary - Wenling Younio.(Wenling Younio Water Meter Co.,Ltd), whose registered capital is RMB30 million.
08/12/2011,Zhejiang Younio signed an official agreement with Jiangxi Sanchuan which state that Jiangxi Sanchuan will be controlling shareholder and bring Wenling Younio going public.
01/01/2012,Wenling Younio start to run And we are planning to be the biggest water meter export base in China within next three years.
Wenling Younio. covers an area of more than 5000 square meters with a staff of more than 150,owning design and R&D center,acce-ssories production center, whole machine production center,inspection and testing center.We are now capable of producing about 2 million pieces water meters annual.We have successively passed the certificate of ISO9001:2008 Quality System Certification, the certificate of ISO14001:2004 Environmental Management System Certification and the certificate of GB/T 28001:2001 Occupati-
onal health and safety management system certification.With a wide variety and a complete range of specifications.Our products are exported to many countries in the world such as Eastern Europe,South America,Africa and the Middle East,etc.Exports accou-nted for more than 85%
