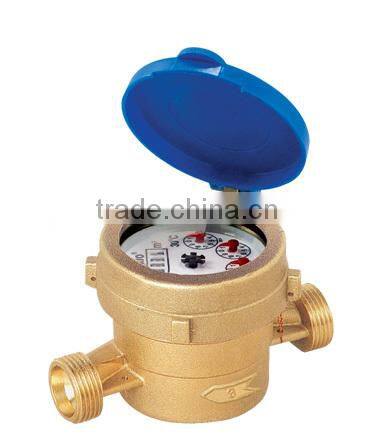

wet single jet water meter,domestic water meter DN15-DN25

Specifications

LXS-13D1-25D1
Single jet vane wheel , wet-dial
ISO4064 Class B
For cold water

SINGLE JET WET TYPE WATER METER :LXS-13D1~25D1

Features:

Wet register

Small,light

Brass body

Body can be painted

For cold water

High accuracy

ISO 4064 :1993 Class B

ISO 4064:2005 R80/R100



Working condition:

Water temperature 50°c

Water pressure≤1MPa

(PN:1.6MPa/16bar)

ΔP≤0.1MPa(Class B/)

ΔP≤0.063MPa(R80/R100);



Accuracy:



From minimum flow-rate(qmin/q1)inclusive, to transitional flow-rate(qt/q2),exclusive:±5%

From transitional flow-rate (qt/q2)inclusive,to overload flow-rate(qs/q4),exclusive::±2%



Technical Data:



DN/Q	Q4=1.25Q3       Q3	R=Q3/Q1	Q2=1.6Q1    Q1	R=Q3/Q1	Q2=1.6Q1     Q1
	l/h		l/h		l/h
15	3125              2500	80	50            731.25	100	40                  25



DN/Q	Class of measurement	Overload flow-rate qs	Permanent flow-rate qt	Transitional flow-rate qp	Minimum flow-rate qmin
15	B	3	1.5	120	30



Overall dimensions and weight:

Type	Size(mm)	Length(mm)L	Width(mm)W	Height(mm)H	Connecting Thread D	Weight (kg)
LXS-13D	15	110	80	86	G  3/4"	0.6





Packing list
ITEM NO.	PACKAGE			PCS/CTN	N.W.	G.W.
	L(cm)	W(cm)	H(cm)		(KG)	(KG)
LXS-13D1	37.5	32.0	21.5	20	13	14
LXS-20D1	44.5	30.5	20.0	20	18	19
LXS-25D1	43.5	36.0	11.5	10	12	12.5





One year  guarantee.
