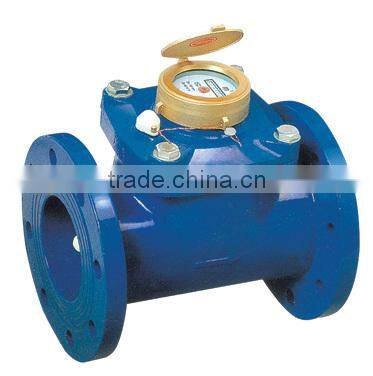

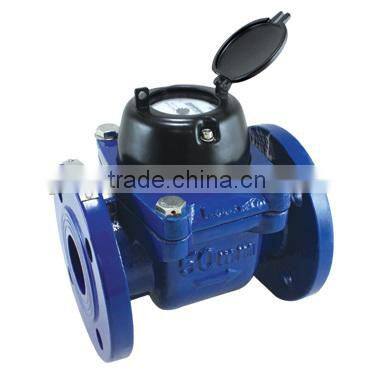

Flange Connect Horizontal Woltman Type Bulk Water Meter

Name: Flange Connect Horizontal Woltman Type Bulk Water Meter
Brand: younio
SKU: 119217729
Availability: InStock

US$ 93.4 - 115.4 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

younio

Model Number:

LXLC-150E1

Wenling Younio Water Meter Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name younio

Model Number LXLC-150E1

Specifications

Horizontal type,low pressure loss

Product Description

Features:

Fit for bigwater flow

Stable and high accuracy

Cast iron body

Low pressure loss

Long working life

For cold water

Type:horizontal and removable

ISO 4064 :1993 Class B

Working condition:

Water temperature 50°c

Water pressure≤1MPa

(PN:1.6MPa/16bar)

ΔP≤0.03MPa(Class B)

Accuracy:

From minimum flow-rate(qmin/q1)inclusive, to transitional flow-rate(qt/q2),exclusive:±5%

From transitional flow-rate (qt/q2)inclusive,to overload flow-rate(qs/q4),exclusive::±2%

Nominal size DN(mm)	Class of measurement	Overload flow-rate q^s	Permanent flow-rate q^p	Transitional flow-rate q^t	Minimum flow-rate q^min	Minimum reading Min (m³)	Maximum reading Max (m³)
150	B	300	150	30	4.5	0.01	9999999

Size :

Type	Size(mm)	Length(mm) L	Width(mm) W	Height(mm) H	Outer diameter of flange D(mm)	The center diameter of connecting bolt D1(mm)	Connecting bolt(Pcs)	Weight(kg)
LXLC-150E1	150	300	285	301.5	285	240	8*M20	30
