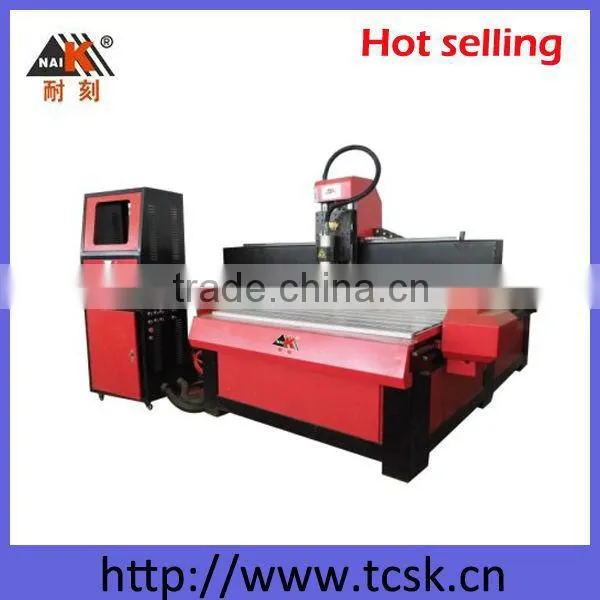

Shenzhen Naik hot-sale wood door making cnc router cutting with cheap price
- 130 Set / Sets per Month
- Shenzhen
- T/T Credit Card
-
engraving cnc router,1325 woodworking cnc router 1300*2500*200
-
engraving and milling machine,1325 woodworking cnc router 1300*2500*200
-
engraver router,1325 woodworking cnc router 1300*2500*200
-
dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
-
cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
-
cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
| Condition: | New | CNC or Not: | CNC | Place of Origin: | Guangdong, China |
| Brand Name: | NAIK | Model Number: | 4STC-1325HC | Voltage: | 110/220/380V 50±10HZ |
| Power(W): | 3KW | Dimension(L*W*H): | 1300*2500*180 | Weight: | 1300KGS |
| Certification: | CE,FDA,ISO9001 | Warranty: | One year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Hot-sale wood door making cnc router cutting with cheap price
Product Features
1. T-gantry, with high precision linear guide rails and double nuts ball screw for transmission.
2. Cutting size: 1300*2500 mm.
3. Control system: NcStudio control system, easy to learn and convenient to use.
4. Color is optional, Rotary axis, vacuum table and dust collector can be added as your demand.
5. Strong tubular steel main body to ensure the stability while working at high speed.
6. Hot-sale wood door making cnc router cutting with cheap price.
Application Materials
Esp. suitable for wood furniture, such as chairs, desks, tables, wood doors, wood curtains etc.
Also suitable for Plastic Plate, PVC sheet, Artificial stone, Marble, Granite, Foam, Styrofoam, EPS Foam, Wood, MDF, Solid wood, Hardwood, Ceramic Tile, Tombstone, milestone, Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Slate, Grindstone, Jade, Crystal, Plexiglass, Aluminum sheet, Copper sheet etc.
Guarantee & After-sales service:
Guarantee for one year
24 hour technical support by email or calling
User friendly English manual and Video CD for machine using and maintenance
Model No. | 4STC-1325HC |
Table Size | 1380mm×2900mm |
Effective Working Area | 1300mm×2500mm |
Z Axis Travelling | 180mm |
Feeding Height | 200mm |
Body Frame/Structure | Strong Steel frame |
Table | Aluminum table |
X,Y Transmission | Germany slanting rack and pinion |
Z Transmission | Taiwan HIWIN 2510 dual-nut ball screw |
Rail Configuration | Taiwan HIWIN 25 Linear square guide rails |
Positioning Accuracy | ±0.15/300mm |
Spindle Rotating Speed | 0-24000rpm |
Spindle power | 3KW(3.0,4.5,6,7.5kw for option) |
Y Axis Drive Motor | Shenzhen Leisai Stepper Motor(Double Motor) |
X,Z Axis Drive Motor | Shenzhen Leisai stepper Motor |
Movement Control | NCSTUDIO control system |
Carving Instruction | G code*,U00*,mmg*,nc |
Resolution | 0.00625/pulse |
Collet | 3.175mm,4mm,6mm,8mm,10mm,12.7mm |
Cooling system | Water pump |
Power | 380V,50HZ±10(Internal Switch Power) |
Movement Pattern | Gantry Moving |
Optional parts:
1.The working range can be customized as per your requests;
2.The sturcture: can be Heavy-duty Tubular steel frame Or Lighter steel frame;
3.The table: can be T-slot Aluminum table Or Vacuum table for Maximun Fixturing Flexibility;
4. Spindle: the power of spindle can be 1.5KW/ 2.2KW/ 3.0KW/ 4.5KW/5.5KW/ 7.5KW/ 9KW, etc;
5. Drive Motor: can be Stepper Motor Or Servo Motor;
6. ATC(Automatic Tool Changing): Can be with Or without, Linear Or Hat shaped;
7. Control system: NcStudio with DSP Or computer cabinet;
8. Water cooling pipe: with Or without;
9. Rotary axis for 3D working: with Or without;
Remark: The cost will be different with different configurations.
Machine details with pictures:
All the specifications can be customized as requested!
Pictures of sample:
Company Certificates
Packing
Pictures of our company
We are professional manufacturer of all kinds of CNC engraving machines, suitable for various of materials, such as: wood, stone, jade, acrylic, metal, ceramics, etc.
And we offer all kinds of CNC parts.
To know more about our products, please feel free to contact us !
Contact Us
- Shenzhen Tiancheng Xin Li CNC Equipment Co., Ltd.
- Contact nameJunia Ding
- Phone86-755-29026698
- AddressJunxin Road,Junxin Community,Guanlan Street Shenzhen,Guangdong
-
