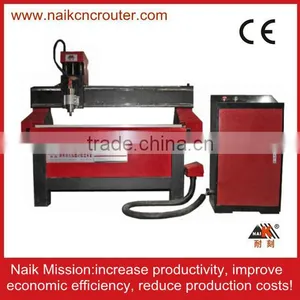

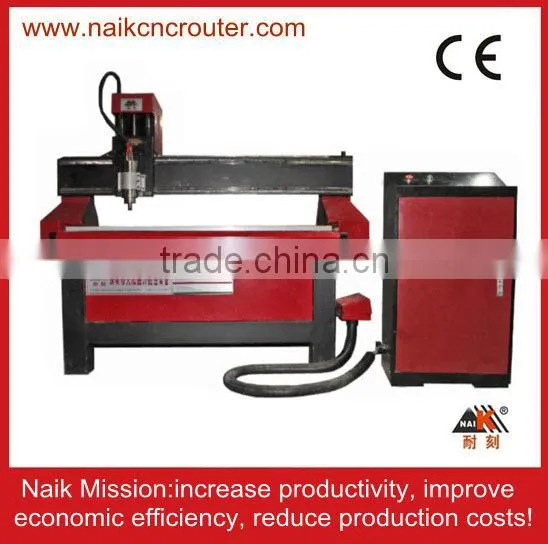

cnc router machine with HIWIN guide rail advertising engraving machine price
Product features:
-- With 1300mm* 2500mm engraving range;
-- 8mm thick heavy-duty tubular steel frame , to ensure the structure stability, low inertia and no distortion;
-- HIWIN linear guide and sliding block, Germany made dual screw-nut anti-gap rod, with high accuracy, low noise, and long life;
-- Equipped with high-speed spindle motor, high-performance division drive to ensure the long time and stable working;
-- High precision, the curving and linear speeds are consistent. Adopting execellent parts makes the fault rate to be the lowest one.
-- The machine adopts gantry movement, it can process any kinds of non-materials freely.
-- Adopted with advanced controlled system, with simple operating software, it’s easy to learn; And the operator can check the real-time trajectory, plus or minus Z-axis depth in real-time, and adjust the motor speed conveniently;
-- Humanized design, convenient for removing and installing;
-- Can meet not only the high sensitivity, high accuracy, high speed small sculpture, but also can adapt to large acrylic cutting, three-dimensional billboard production, wood carving
| Specifications option of the machine | ||||||

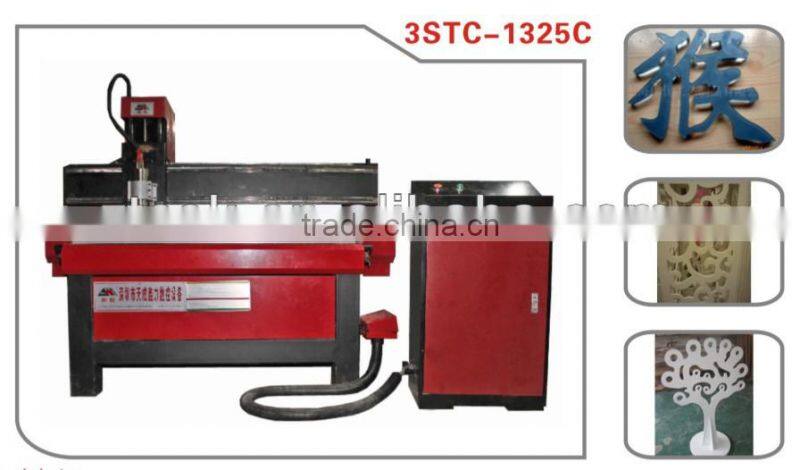

| Model No | 3STC-1325C | |||||
| Platform Size (mm) | 1380MM*2900MM | |||||
| Engraving range (mm) | 1300*2500MM | |||||
| Z axis traveling height(mm) | 180MM | |||||
| Max feeding height | 200MM | |||||
| Machine base | 8MM thick heavy-duty tubular steel frame, | |||||
| Z-axis clevis | U-shape Casting aluminium,machine by CNC center | |||||
| Fuselage | 8mm steel machined by CNC center | |||||
| Beam | 8mm steel frame,CNC processing | |||||
| frame | 6mm steel frame CNC processing | |||||
| Sheet Metal X axis Drag Chain | Cast Aluminum machined by CNC center | |||||
| Surface material | Aluminium | |||||
| Adsorption method | With T-slot for clampfixturing | |||||
| XY Transmission | Germany Slanting rack | |||||
| Z Transmission | HIWIN2510 Ball Screw | |||||
| Rail configuration | HIWIN20Square guide rail | |||||
| Positioning accuracy | ±0.15/300mm | |||||
| Spindle speed | 0-24000(r/min) | |||||
| Y-axis dual drive | Stepper Moter LeiSai86,Shenzhen | |||||
| X,Yaxia drive | Stepper Moter LeiSai86,Shenzhen | |||||
| Control system | NcStudio control system | |||||
| Code formats | G,code,U00,mmg,nc | |||||
| Idie speed | 0-20000/min | |||||
| Working speed | 0-15000/min | |||||
| Resolution | 0.00625/Pulse | |||||
| Tool diameter | 3.175mm 4mm 9mm 8mm 10mm 12.7mm | |||||
| Spindle Power | 3.0kw Water cooling(4 bearing inside) | |||||
| Cooling | water Pump | |||||
| Power | 380v50HZ±10(internal Power) | |||||
| Electric Box | Normal Electric Box | |||||
| Moving Pattern | Gantry moving | |||||
| Weight | 1100kg | |||||
| Remarks: We can freely clear customs for you . | ||||||
| Price term & Warranty | ||||||
| MOQ: 1 Set | ||||||
| Price term: EXW/ FOB Shenzhen (optional) | ||||||
| Payment term: 30% advanced by T/T, the balanced before shipping | ||||||
| Validity of quote is within 15 days. | ||||||
| Delivery time: In 10-15 days | ||||||
| Warranty: 1 year. With A full range of technical support | ||||||
Pictures of sample:
----------------------------------------------------------------------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------------------------------------
What can I do for you
1)For quantities of Spindle:
Single Spindle CNC Router,2 Spindles CNC Router;3,4...12,15 Spindles and etc Multi-spinldes CNC Router Engraving/Carving/Cutting Machinery;
2)For Axies:
2 Axis CNC Machine,3 Axis CNC Router,4 Axis CNC Engraving Machine,5 Axis CNC Router,6 Axis CNC Router Machine;
3)For Spindle Power:
There are 2.0KW/3.0KW/4.5KW/5.5KW/7.5KW/9.0KW CNC Router Machine;
4)Others,
Plane&Cylinder CNC Router Machine;ATC CNC Router;Automatic Tool Changed CNC Machine;Router Axis CNC Machine;Dual Z Axis CNC Machine;
Heavy-duty CNC Router,Low cost CNC Machine,Enconomic CNC Router;Vac-sorb CNC Engraving Machine;Ncstudio Control System CNC Router Machine;
CNC Laser Machine;CNC Plasma Cutter ;CNC Laser Cutting Machine ,MINI CNC Router and etc
Motion Control System: The PCIMC control card is designed by Weihong technology compan of Shanghai, specialized for NC STUDIO Motion Control System. | |||
|
|||
| Driving Motor: The Driving Motor is the executive component of the automatic control system, it works with the simple push of a button. The motor we use for our CNC engraver can be steping motor/ Servo motor, and the brand is optional. | |||
|
|||
| Frequency Converter: It can offer actual voltage to the motor as per the practical need of motor, to make sure of energy conservation and speed regulation. Besides, the converter can protect the motor from over current, over voltage, overloaded, etc. | |||
|
|||
|

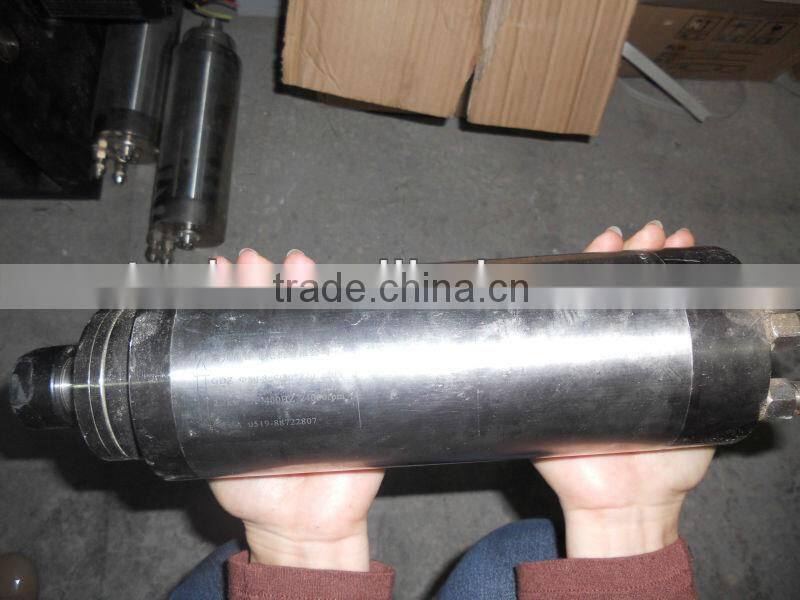

Main Spindle: There are two kinds of spindle: Water cooling and Air cooling spindles. And with different power options: 1.5KW/ 2.2KW/ 3.0KW/ 4.5KW, etc. | |||
|
|||
| Guide rail and sliding block: We use Linear square guide rails offered by HIWIN of Taiwan. The coefficient of rolling frictionis small and positioning accuracy is much higher than sliding friction. | |||
|
|
|||
| Dual screw-nut anti-gap rod: The ball screw is an element to change the movements of the bearing from sliding to rolling. There are many roll balls between the screw shaft and the screw nut, and the balls rolling fast when the machine working. For the coefficient of rolling friction is smaller, the positioning accuracy is much higher. The accuracy of ball screw is higher than linear guide rail, and we have different brands optional. | |||
|
|
|||
Shipping Terms
1,EXW
2,FOB SZ
3,CIF+Destination port
4,If you need us to book shipping cargo or not and etc,pls notice us,we are more pleased to do so.
Payment terms
1,T/T 30%T/T in advance against the order confirmed and pay the balance 70% against goods ready.
2,Western Union Total amount should be below than 5000 USD,and the bank handling fee should be responsible for you.
3,L/C We would like to talk details with you if you really need L/C payment terms.
Other payment terms,pls mention us.
Why choose us
1.One year equipment warranty and maintenance for lifetime.
2.Free installation and test before shipping and free training for operators
3.Advice for the solutions best for customers requirements.
4.Free training and sample provided
5.Meet CE,FDA,ISO9001 standards

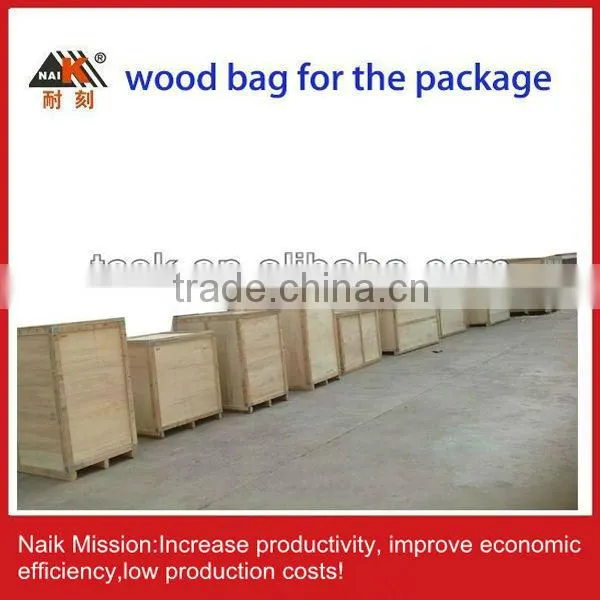

photos of packing
We are professional manufacturer of all kinds of CNC engraving machines, suitable for various of materials, such as: wood, stone, jade, acrylic, metal, ceramics, etc.
And we offer all kinds of CNC parts.
To know more about our products, please feel free to contact with us !
