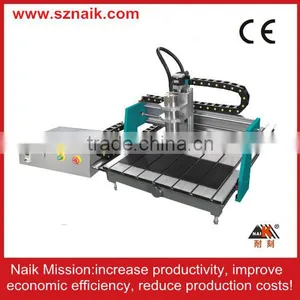

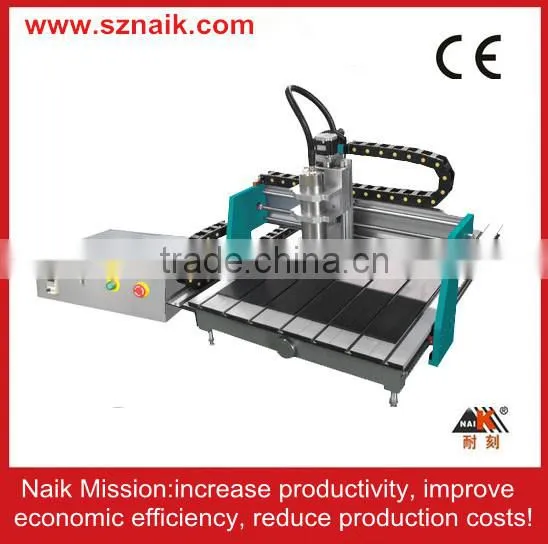

cnc factory professional cnc mini machine 6090 with best quality
Product features of cnc factory professional cnc mini machine 6090 with best quality
-- With 600mm* 900mm engraving range;
-- Iron casting frame , to ensure the structure stability, low inertia and no distortion;
-- HIWIN guide and sliding block, Germany made dual screw-nut anti-gap rod, with high accuracy, low noise, and long life;
-- Equipped with high-speed spindle motor, high-performance division drive to ensure the long time and stable working;
-- High precision, the curving and linear speeds are consistent. Adopting execellent parts makes the fault rate to be the lowest one.
-- The machine adopts gantry movement, it can process any kinds of non-materials freely.
-- Humanized design, convenient for removing and installing;
Technical Parameter of cnc factory professional cnc mini machine 6090 with best quality
| Specifications option of the machine | ||||||
| Model No | TC-6090J | |||||
| Platform Size (mm) | 650*1100MM | |||||
| Engraving range (mm) | 600*900MM | |||||
| Z axis traveling height(mm) | 130MM | |||||
| Max feeding height | 250MM | |||||
| structure | iron Casting | |||||
| Table material | iron Casting | |||||
| Thickness of gantry | iron Casting | |||||
| Thickness of side wall | iron Casting | |||||
| Sheet metal | 2mm baking paint sheet metal | |||||
| Xyaxis Transmission | Ball Screw | |||||
| Z axis Transmission | Ball Screw | |||||
| Rail Configuration | circular guide way | |||||
| Positioning accruracy | ±0.1/300mm | |||||
| Spindle power | 1.5kw | |||||
| Spindle Rotating speed | 0-24000r/min | |||||
| Empty speed | 0-2000mm/min | |||||
| Processing speed | 0-2000mm/min | |||||
| Resolution | 0.00625/Pulse | |||||
| Converter | 1.5kw converter(sunfar Brand) | |||||
| Yaxis Driving Motor | shenzhenleadshine86 | |||||
| Xzaxis Driving motor | shenmzhenleadshine86 | |||||
| Movement control system | Ncstudio Control system | |||||
| Cooling | water Pump | |||||
| machine power | 380v50HZ±10(internal Power) | |||||
| Moving Pattern | Gantry moving | |||||
| Weight | 700kg | |||||
| Electric box | Computer Cabinet | |||||
| Remarks: We can freely clear customs for you . | ||||||
| Price term & Warranty | ||||||
| MOQ: 1 Set | ||||||
| Price term: EXW/ FOB Shenzhen (optional) | ||||||
| Payment term: 30% advanced by T/T, the balanced before shipping | ||||||
| Validity of quote is within 15 days. | ||||||
| Delivery time: In 10-15 days | ||||||
| Warranty: 1 year. With A full range of technical support | ||||||
----------------------------------------------------------------------------------------------------------------------------------------------------
Samples of embossing
----------------------------------------------------------------------------------------------------------------------------------------------------
Samples of acrylic
----------------------------------------------------------------------------------------------------------------------------------------------------
Samples of advertisement
----------------------------------------------------------------------------------------------------------------------------------------------------

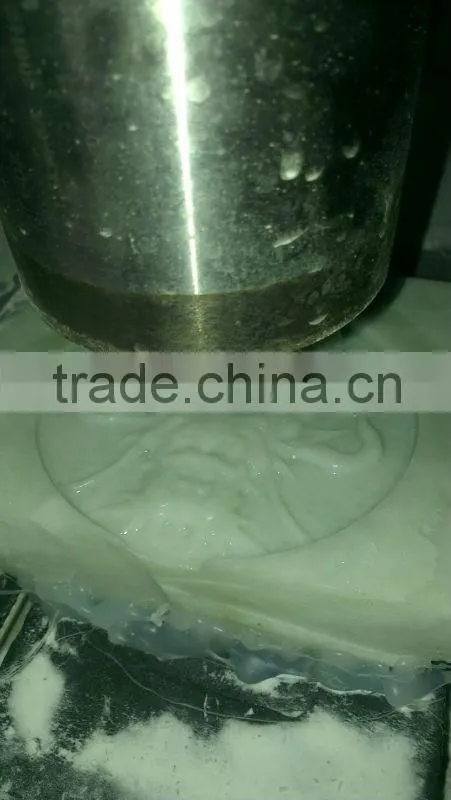

Samples of stone
------------------------------------------------------------------------------------------------------------------------
1)For quantities of Spindle:
Single Spindle CNC Router,2 Spindles CNC Router;3,4...12,15 Spindles and etc Multi-spinldes CNC Router Engraving/Carving/Cutting Machinery;
2)For Axies:
2 Axis CNC Machine,3 Axis CNC Router,4 Axis CNC Engraving Machine,5 Axis CNC Router,6 Axis CNC Router Machine;
3)For Spindle Power:
There are 2.0KW/3.0KW/4.5KW/5.5KW/7.5KW/9.0KW CNC Router Machine;
4)Others
Plane&Cylinder CNC Router Machine;ATC CNC Router;Automatic Tool Changed CNC Machine;Router Axis CNC Machine;Dual Z Axis CNC Machine;
Heavy-duty CNC Router,Low cost CNC Machine,Enconomic CNC Router;Vac-sorb CNC Engraving Machine;Ncstudio Control System CNC Router Machine;
CNC Laser Machine;CNC Plasma Cutter ;CNC Laser Cutting Machine ,MINI CNC Router and etc
Shipping Terms
1,EXW
2,FOB SZ
3,CIF+Destination port
4,If you need us to book shipping cargo or not and etc,pls notice us,we are more pleased to do so.
Payment terms
1,T/T 30%T/T in advance against the order confirmed and pay the balance 70% against goods ready.
2,Western Union Total amount should be below than 5000 USD,and the bank handling fee should be responsible for you.
3,L/C We would like to talk details with you if you really need L/C payment terms.
Other payment terms,pls mention us.
Why choose us
1.One year equipment warranty and maintenance for lifetime.
2.Free installation and test before shipping and free training for operators
3.Advice for the solutions best for customers requirements.
4.Free training and sample provided
5.Meet CE,FDA,ISO9001 standards
photos of packing

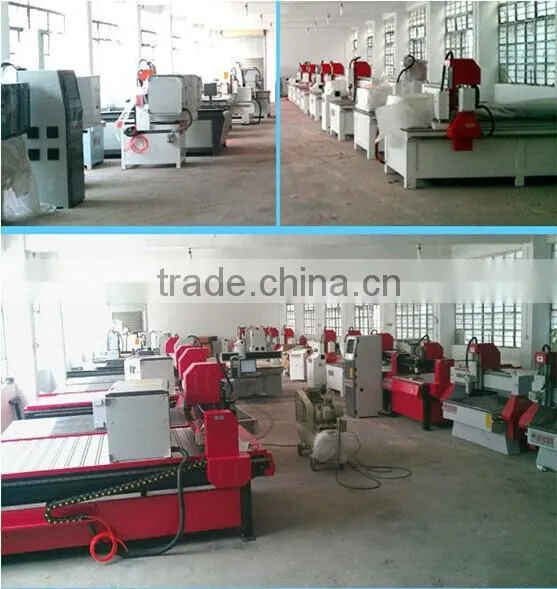

We are professional manufacturer of all kinds of CNC engraving machines, suitable for various of materials, such as: wood, stone, jade, acrylic, metal, ceramics, etc.
And we offer all kinds of CNC parts.
To know more about our products, please feel free to contact with us !
