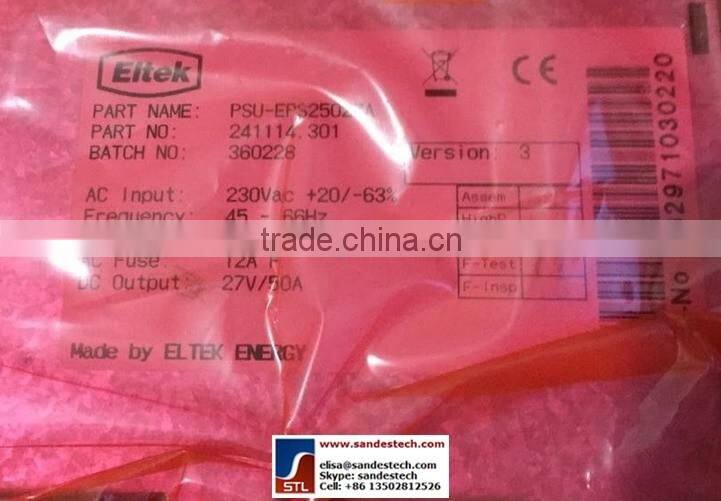

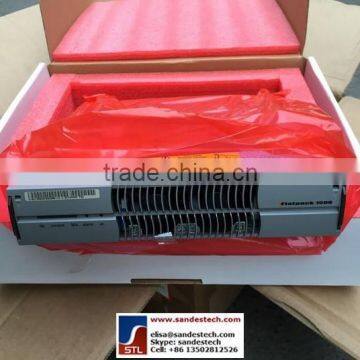

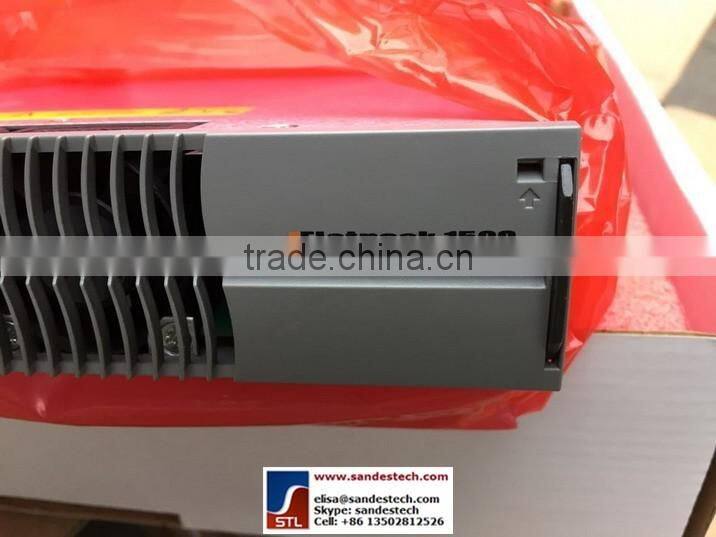

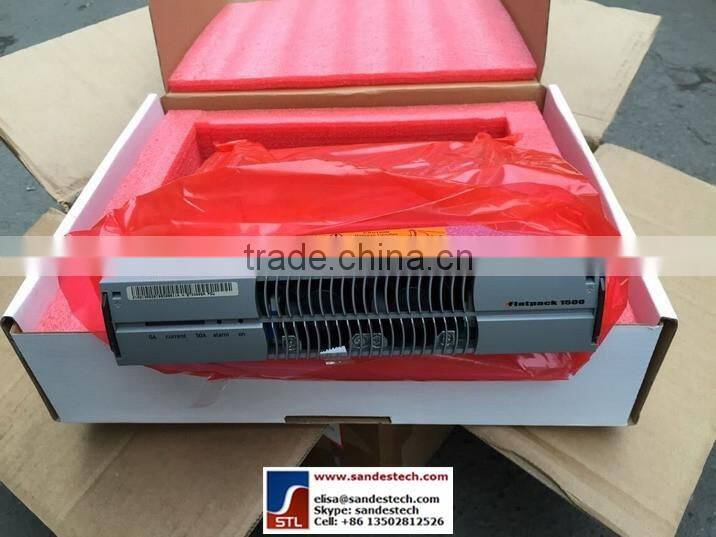

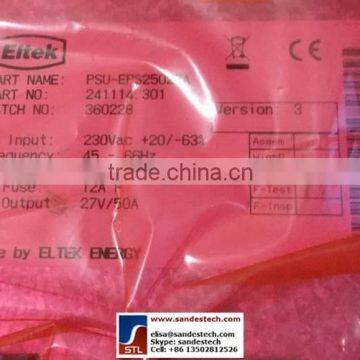

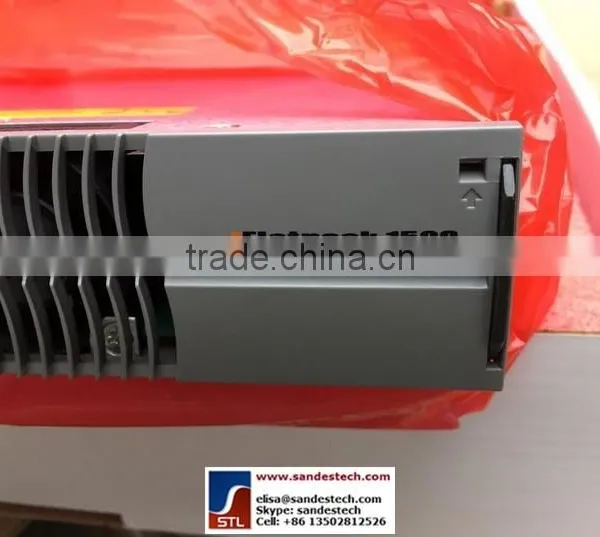

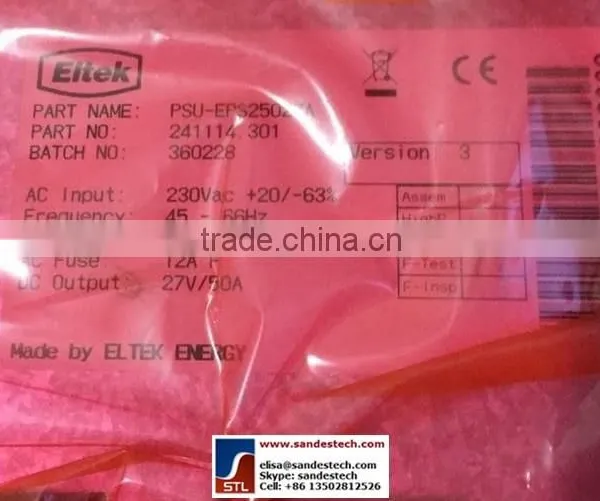

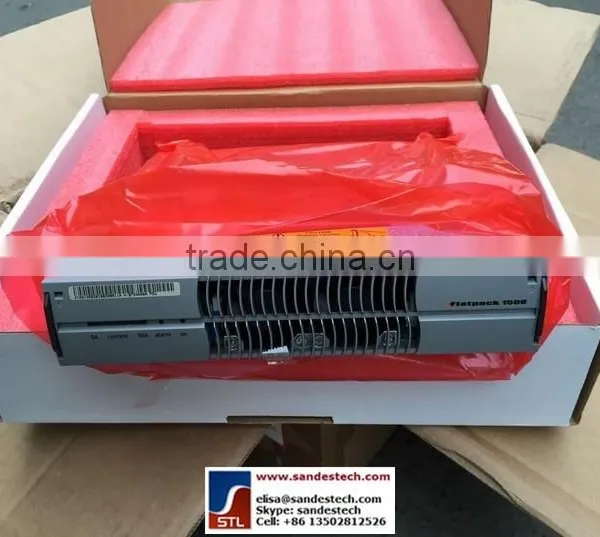

Eltek Flatpack 15000 27V 50A 1500W 241114.301 241114.100

Brand Eltek
Product Name Flatpack 1500 48V
Part No. 241114.100

INPUT
Input voltage 85-300 VAC
Frequency 45 to 66Hz
Maximum Current 9.2 Arms maximum at 185VAC and 1500 W output


OUTPUT
Voltage 48 VDC (range: 44-59 VDC)
Output power 550 W at 85-150 VAC
1100 W at 150-185 VAC
1500 W at 185-275 VAC
Maximum current 31.25 Amps at 48 VDC
(230 VAC nom.)

Applications

• Medium-small capacity access networks
• Switches
• Mobile communication deivices
• Data communication devices
• Transmission devices
• Satellite microwave stations

System Features

• Standard 19" structure design
• Full front access
• Modular system design, hot-swappable
• Compact and light weight, can be directly embedded into the rack
• Wide operating temperature range and strong environment adaptability
• RoHS compatible, EMC compliant with EN55022 CLASS B, suitable for residential environment
• Smart battery management, improving battery life effectively
• Certified by both home and abroad safety standards such as CE, TUV and UL
• Extra-wide input voltage range and strong grid adaptibility
• Adopting APFC technology, achieving high input power factor
• Smart interface available, realizing easy networking monitoring
• Surge protection, and provides multiple DC power distribution outputs
