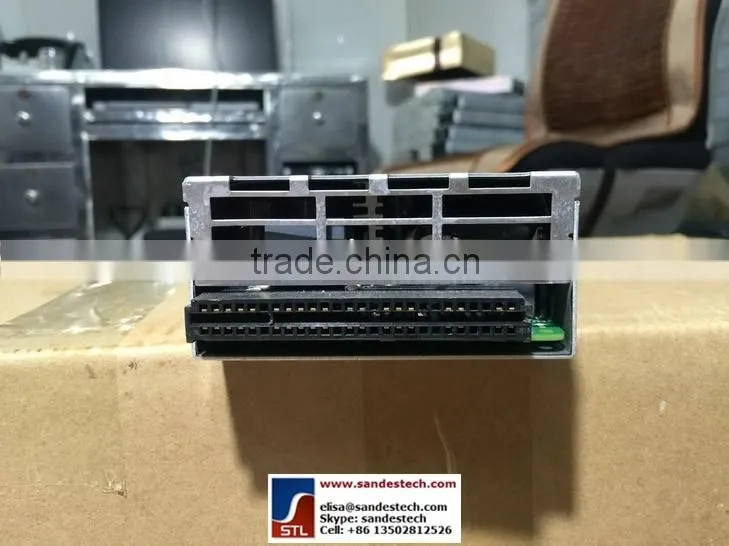

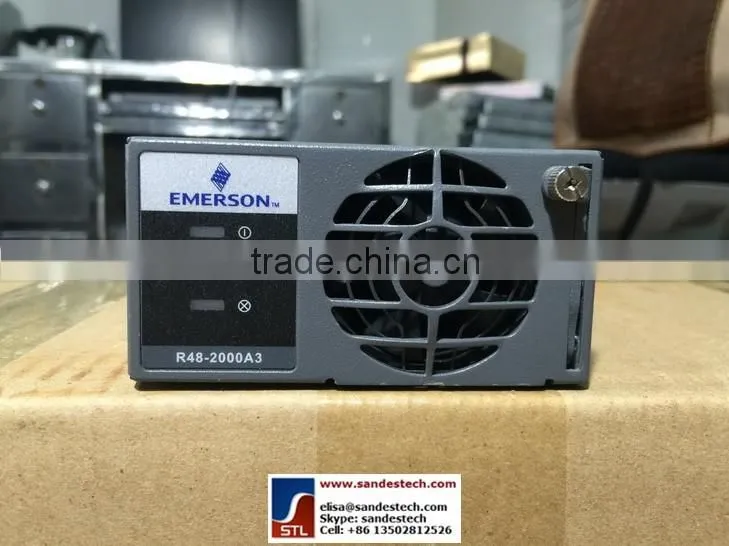

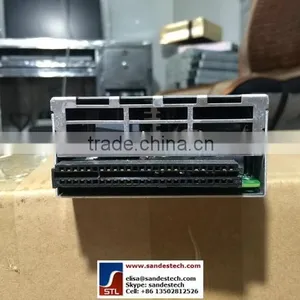

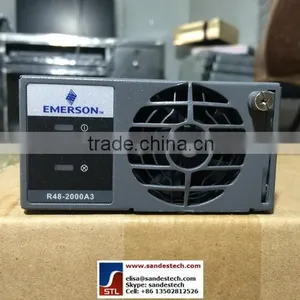

Emerson R48-2000A3 R48-2000e3 rectifier
The eSure™ R48-2000e rectifier converts standard AC supply voltages into stable nominal-48V DC voltage adjustable to the needs of the application. The R48-2000e is a constant power rectifier designed with the latest patented switch-mode technology using DSP (Digital Signaling Processor) functionality for efficient operation.
For a higher load capacity, rectifiers can be connected in parallel and intelligent control can be added with the help of a separate controller.
Features and Benefits
eSure™ Rectifier
-48 V DC, 2000 W
- Optimized depth-reduced footprint allows installation in short-depth racks and cabinets
- DSP (Digital Signaling Processor)-means fewer components, optimized operation and active load sharing for increased reliability
- Compliant with global standards-delivers quality, performance and reliability no matter what the application or location demands
- High efficiency, 96.5%-reduces power consumption for lower operating costs
- Hot pluggable-facilitates future extensions
- Wide input voltage range-operates in the most demanding environments where input voltage changes
- Wide temperature operating range (-40°C / -40 °F to +80°C / 176°F) -meets the harshest climatic environment requirements
AC Input |
|
Input Voltage, Nominal |
200 to 250 V AC |
Input Voltage, Permitted Variation |
85 to 300 V AC |
Line Frequency |
45 to 65 Hz |
Max Input Current |
13 A |
Power Factor |
0.99 |
THD (Total Harmonic Distortion) |
<5% from 50 to 100% of rated load |
DC Output |
|
Output Voltage, Adjustment Range |
-42 to -58 V DC |
Output Power |
2000W@Vout >48VDC |
Output Power, Derated for Input Voltage |
See Diagram |
Output Current |
41.7A@-48VDC |
Output Current limit set Point |
0 to 41.7A |
Efficiency |
96.5% peak |
Psophometric noise (system) |
<2 mV typical |
|
<38 dBrnc typical |
Temperature Derating |
See diagram |
Control and Monitoring |
|
Rectifier Alarm and Signaling |
Alarm and status reported via CAN bus to system Controller |
Visual Indications |
Green LED: Normal Operation |
|
Yellow LED: Alarm |
|
Red LED: Failure |
|
Flashing Red LED: Fan Failure |
Environmental |
|
Temperature Range, Operating |
-40 to +80°C, -40 to +176°F |
Temperature Range, Storage |
-40 to +80°C, -40 to +176°F |
Relative Humidity |
0 to 95% |
Altitude |
2000 m, 6560 ft at full power |
EMC |
ETSI EN 300 386 class B, FCC CFR 47 Part 15 class B, Telcordia GR-1089-CORE class B |
Safety |
IEC 60950, EN 60950, UL 60950 |
Mechanics |
|
Dimensions (H×W×D) |
86× 84.5×272mm / 3.39×3.33×10.71 inches |
Weight |
2.4kg/5.3lbs |
Other parts |
|
Load (% of rated load) |
Controller Units |
See separate ACU/ACU+ and SCU/SCU+ datasheets |
|
|
|
|
Ordering information |
|
|
Description |
Product Code |
|
Rectifier 48V,2000W |
1R482000eXXX |
|
About the Distribution:
As a golden distributor of Emerson, all of Emerson prodcucts from Polytrade/Sandes Technology are 100 % Original and Brandnew unless per clients' requests; customers could claim 10time cost if you find we offer used or fake products. We offer one year warranty for all on-display products.
The Emerson products by us are whole series of hot-sell products, and if you did not find what you need on alibaba web, please contact us via sales[at] to gain supports.

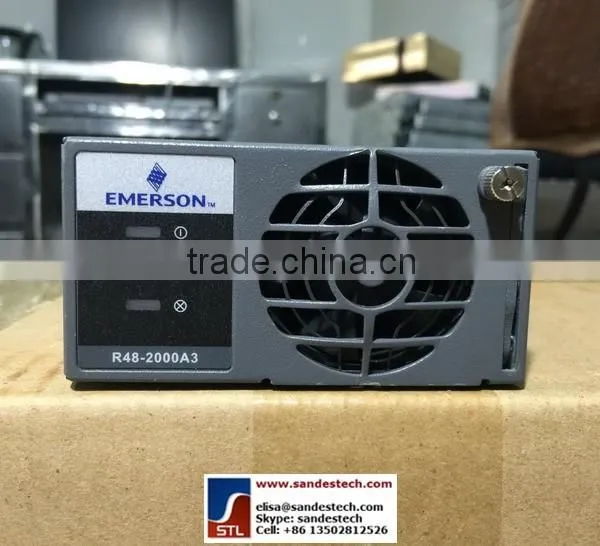

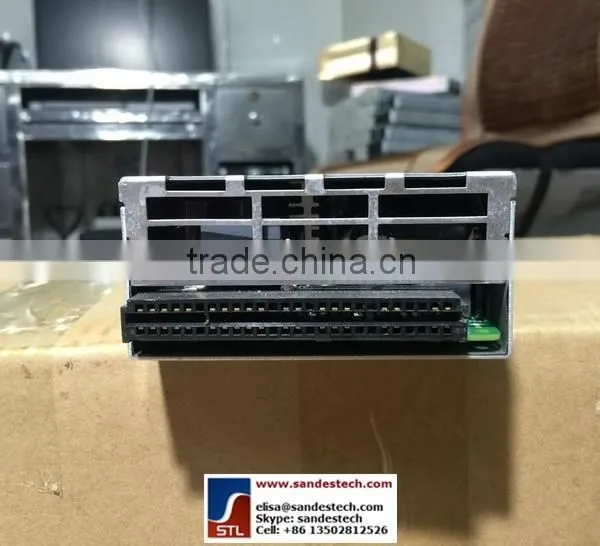

Products Photos:
