Help CenterTC-1325A Professional CNC Drilling Machine With ATC
Related Products
-
Hot Item CNC Diy Machine Price TC-1325US$ 6,000 - 8,000MOQ: 1 Set -
Stone CNC Engraver With Anti-dust Cover (6STC-1325HX)NegotiableMOQ: 1 Set
-
6 Spindles Stone Engraving Machine for Cutting/milling/engravingUS$ 14,530 - 15,500MOQ: 1 Set
-
Fanuc Cutting Machine At Good Price (TC-1325A)US$ 15,000 - 20,000MOQ: 1 Set
-
Hot Selling Stone Jade Acrylic Smart Cnc Router in China Quality ChoiceUS$ 4,000 - 6,000MOQ: 1 Set
| Platform Size (mm) | 1350mm* 2900mm | |
| Engraving range (mm) | 1300mm* 2500mm | |
| Structure options | 8mm thick Heavy-duty Tubular steel frame | |
| Platform material | Thickened aluminum alloy, max 23mm thick | |
| Table fixed type | Vacuum table for Maximun Fixturing Flexibility; 5.5KW vacuum pump | |
| X Axis structure | HIWIN 25 linear square guide rail& Germany gear rack | |
| Y Axis structure | HIWIN 25 linear square guide rail& Germany gear rack | |
| Z Axis structure | HIWIN 25 dual screw-nut anti-gap rod | |
| Z axis traveling height(mm) | 180mm | |
| Feeding height | 200mm | |
| Working Voltage | 220V 50Hz | |
| Spindle power (KW) | 5.5KW, water cooling; 7.5/ 9.0KW optional | |
| Spindle speed | 0-24000 (r/ min) | |
| Max Speed without material | 0-20000 mm/ min | |
| Max working speed | 0-15000 mm/ min | |
| X Axis Drive motor | Servo motor made by Schneider, Germany. | |
| Y Axis Drive motor | Steping moter made by Schneider, Germany. Dual drive | |
| Z Axis Drive motor | Steping moter made by Schneider, Germany. | |
| Resolution | 0.00625/ pluse | |
| Diameter of cutting tools (mm) | 3.175/ 4.0/ 6.0/ 8.0/ 10.0/ 12.7mm optional | |

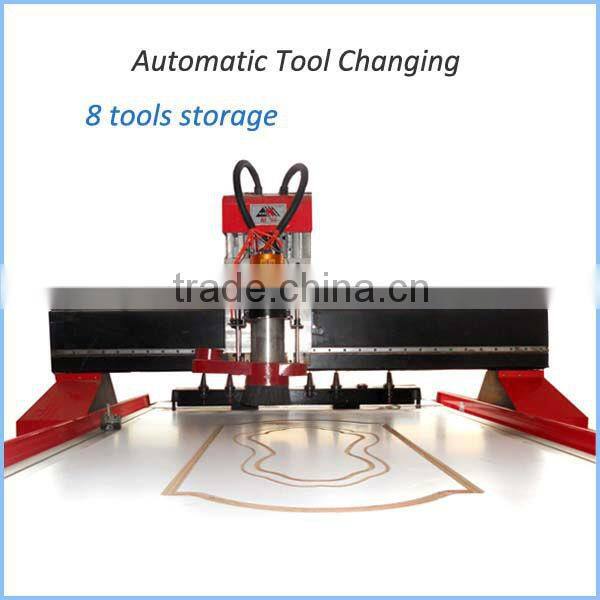

| ATC | Yes. 8 tools storage | |
| Control system option | WeiHong Motion Control System of Shanghai | |
| Code formats | G code, U00, mmg, nc | |
| Compatible software | CAD,CAM softwares such as MasterCAM/ Type3/ JDPaint/ ArtCAM/ Proe/ ArtCut, etc | |
Please feel free to tell us your detailed requests, then we can recommend you the most suitable machine!
Pictures of sample:
----------------------------------------------------------------------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------------------------------------
Optional parts:
1.The working range can be customized as per your requests;
2.The sturcture: can be Heavy-duty Tubular steel frame Or Lighter steel frame;
3.The table: can be T-slot Aluminum table Or Vacuum table for Maximun Fixturing Flexibility;
4. Spindle: the power of spindle can be 1.5KW/ 2.2KW/ 3.0KW/ 4.5KW/5.5KW/ 7.5KW/ 9KW, etc;
5. Drive Motor: can be Stepper Motor Or Servo Motor;
6. ATC(Automatic Tool Changing): Can be with Or without, Linear Or Hat shaped;
7. Control system: NcStudio with DSP Or computer cabinet;
8. Water cooling pipe: with Or without;

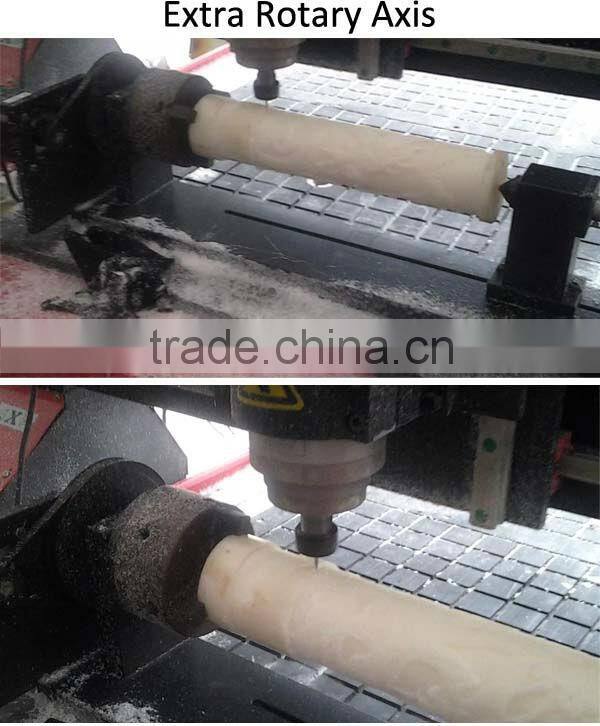

9. Rotary axis for 3D working: with Or without;
Remark: The cost will be different with different configurations.
-----------------------------------------------------------------------------------------------------------------------------------------------------
Product details with pictures:
Motion Control System | |||
|

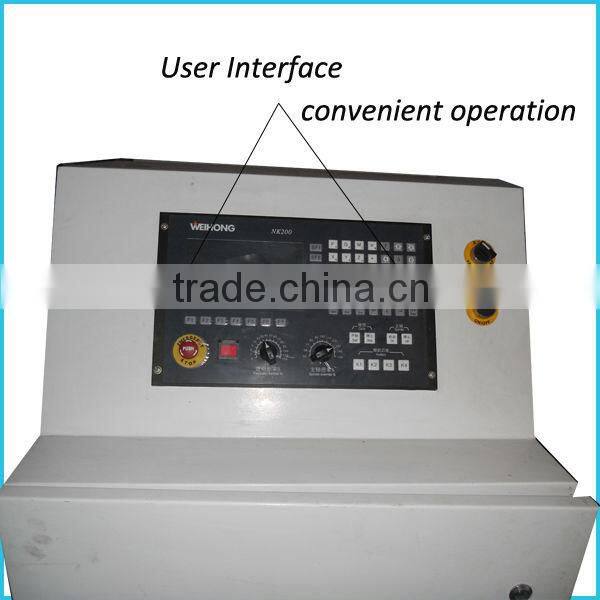

The PCIMC control card is designed by Weihong technology company of Shanghai, specialized for NC STUDIO Motion Control System. The card will be inserted into the PCI card slot of the computer, and the operation of the CNC engraver is controled by the control card. We have PCIMC-3D/6B/ 6A , optional | ||
| Driving Motor | |||
|
The Driving Motor is the executive component of the automatic control system, it works with the simple push of a button. The motor we use for our CNC engraver can be steping motor/ Servo motor, and the brand is optional. |
||
| Frequency Converter | |||
|
The frequency converter is an equipment to control the AC motor by adjusting the frequency of the motor power. So it can offer actual voltage to the motor as per the practical need of motor, to make sure of energy conservation and speed regulation. Besides, the converter can protect the motor from over current, over voltage, overloaded, etc. Each spindle motor is connected with a independent frequency converter, it's more safe and timeproof. | ||
| Main Spindle | |||
|

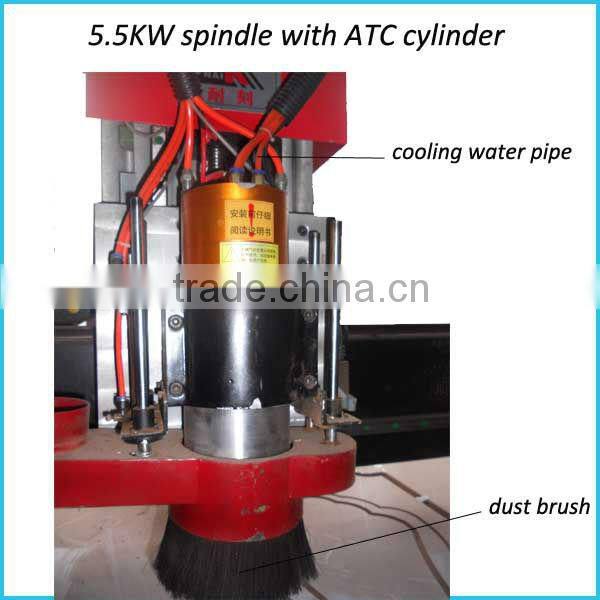

There are two kinds of spindle: Water cooling and Air cooling spindles. And with different power options: 1.5KW/ 2.2KW/ 3.0KW/ 4.5KW, etc. With AC220V voltage, and speed can be 0-24000(R/Min). The output voltage and frequency can be adjusted timely by a frequency converter. Advantage: work with high frequency, stable, low noise, fast heat dissipation, and long operating life. |
||
| Guide rail and sliding block | |||
|
|
We use Linear square guide rails offered by HIWIN of Taiwan. The coefficient of rolling friction |
||
| Dual screw-nut anti-gap rod | |||
|
|
The ball screw is an element to change the movements of the bearing from sliding to rolling. There are many roll balls between the screw shaft and the screw nut, and the balls rolling fast when the machine working. For the coefficient of rolling friction is smaller, the positioning accuracy is much higher. The accuracy of ball screw is higher than linear guide rail, and we have different brands optional. | ||
We are professional manufacturer of all kinds of CNC engraving machines, suitable for various of materials, such as: wood, stone, jade, acrylic, metal, ceramics, etc.
And we offer all kinds of CNC parts.
To know more about our products, please feel free to contact me !
Send Inquiry to This Supplier
