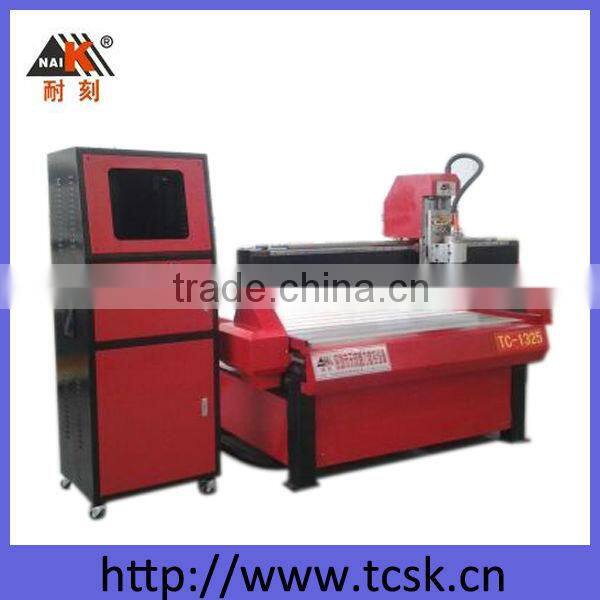

Hot Item CNC diy Machine price TC-1325
| Platform Size (mm) | 1380mm* 2900mm | |
| Engraving range (mm) | 1300mm* 2500mm | |
| Structure options | Steel/ T-shape steel struture | |
| Platform material | Aluminum/ Thickened aluminum optional | |
| Table fixed type | T-clip/ Vacuum absorption optional | |
| X Axis structure | 25mm linear square guide rail of HIWIN & Slanting gear rack | |
| Y Axis structure | 25mm linear square guide rail of HIWIN & Slanting gear rack | |
| Z Axis structure | 25mm dual screw-nut anti-gap rod | |
| Z axis traveling height(mm) | 200mm | |
| Working Voltage | 220V 50Hz | |
| Spindle power (KW) | 1.8/ 2.2/ 3.0/ 4.5/ 5.5KW optional | |
| Spindle speed | 0-24000 (r/ min) | |
| Max Speed without material | 0-20000 mm/ min | |
| Max working speed | 0-15000 mm/ min | |
| X Axis Drive motor | Steping moter / Servo motor, optional | |
| Y Axis Drive motor | Steping moter / Servo motor, optional | |
| Z Axis Drive motor | Steping moter / Servo motor, optional | |
| Resolution | 0.00625/ pluse | |
| Diameter of cutting tools (mm) | 3.175/ 4.0/ 6.0/ 8.0/ 10.0/ 12.7mm optional | |
| ATC | Yes/ No, optinal | |
| Control system option | WeiHong Motion Control System of Shanghai | |
| Code formats | G code, U00, mmg, nc | |
| Cooling system | Water cooling/ Air cooling, optional | |

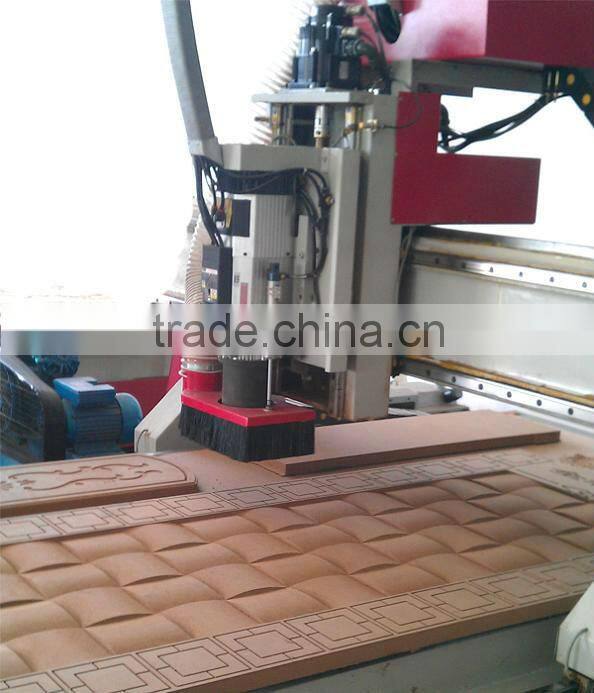

Pictures of sample:
| Motion Control System | |||
|
The PCIMC control card is designed by Weihong technology company of Shanghai, specialized for NC STUDIO Motion Control System. The card will be inserted into the PCI card slot of the computer, and the operation of the CNC engraver is controled by the control card. We have PCIMC-3D/6B/ 6A , optional | ||
| Driving Motor | |||
|
The Driving Motor is the executive component of the automatic control system, it works with the simple push of a button. The motor we use for our CNC engraver can be steping motor/ Servo motor, and the brand is optional. |
||
| Frequency Converter | |||
|
The frequency converter is an equipment to control the AC motor by adjusting the frequency of the motor power. So it can offer actual voltage to the motor as per the practical need of motor, to make sure of energy conservation and speed regulation. Besides, the converter can protect the motor from over current, over voltage, overloaded, etc. Each spindle motor is connected with a independent frequency converter, it's more safe and timeproof. | ||
| Main Spindle | |||
|
There are two kinds of spindle: Water cooling and Air cooling spindles. And with different |
||
| Guide rail and sliding block | |||
|
We use Linear square guide rails offered by HIWIN of Taiwan. The coefficient of rolling friction |
||
| Dual screw-nut anti-gap rod | |||
|
The ball screw is an element to change the movements of the bearing from sliding to rolling. There are many roll balls between the screw shaft and the screw nut, and the balls rolling fast when the machine working. For the coefficient of rolling friction is smaller, the positioning accuracy is much higher. The accuracy of ball screw is higher than linear guide rail, and we have different brands optional. | ||
All the specifications can be customized as requested!
----------------------------------------------------------------------------------------------------------------------------------------------------
We are professional manufacturer of all kinds of CNC engraving machines, suitable for various of materials, such as: wood, stone, jade, acrylic, metal, ceramics, etc. Platform material
And we offer all kinds of CNC parts.
To know more about our products, please feel free to contact with us !
