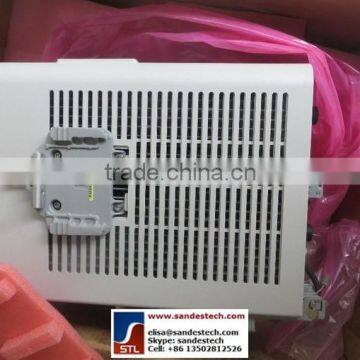

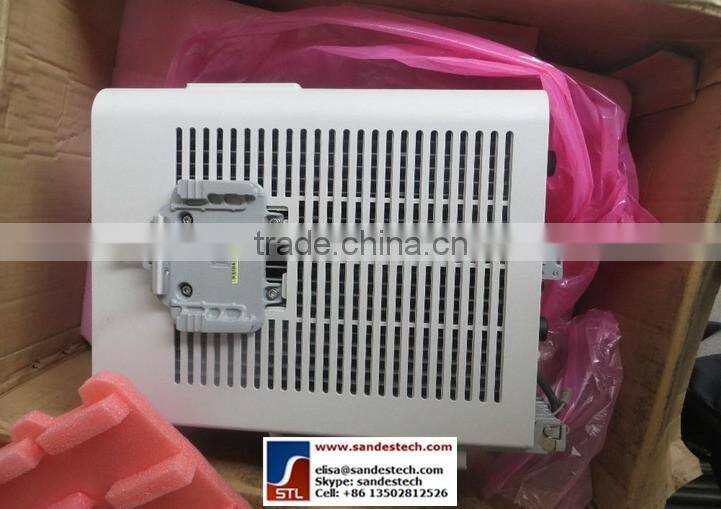

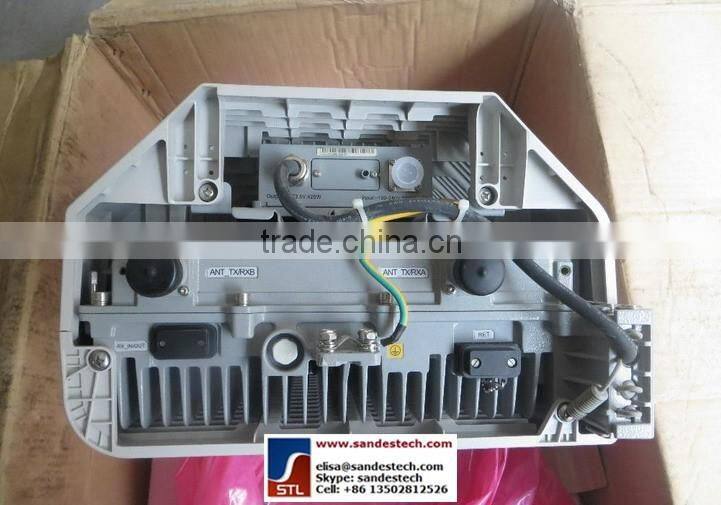

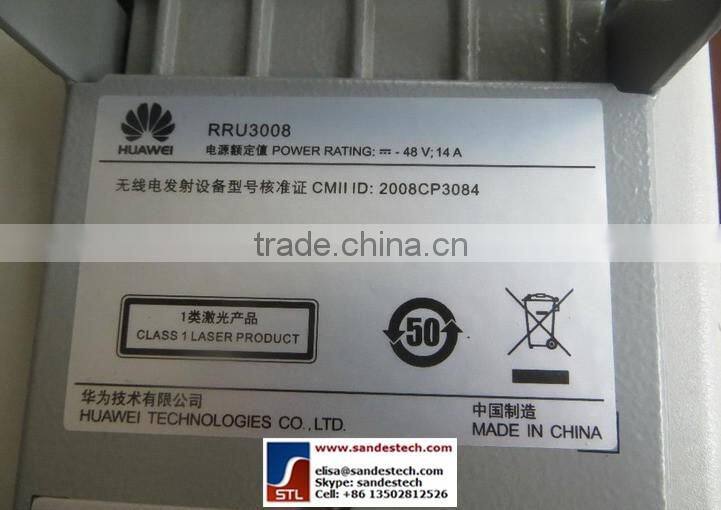

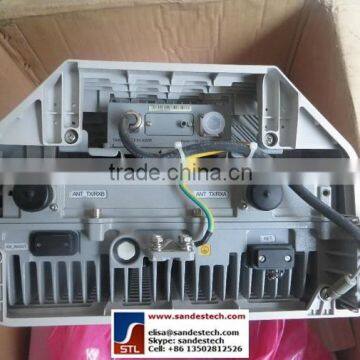

Huawei RRU3008 900M GSM900M for Huawei DBS3900 BBU3900
The BTS3900 is applicable to the indoor scenarios such as centralized installation and relocation of the macro BTS, as shown in Figure 1-1.
The BTS3900 supports –48 V DC power input and the modules. The modules of the BBU3900 and CRFU are installed in a centralized way in an indoor cabinet. As the most compact indoor macro BTS in the industry, the BTS3900 features a large capacity, good extensibility, light weight, and a small size.
In addition, the BTS3900 can be stacked and combined to save space, as shown in Figure 1-2.
Technical specifications of the BTS3900
Item |
Specification |
|||||
Working band |
Frequency band |
Receiving band |
Transmitting band |
|||
Band class 0 |
824 MHz to 849 MHz |
869 MHz to 894 MHz |
||||
Band class 15 |
1710 MHz to 1755 MHz |
2110 MHz to 2155 MHz |
||||
Band class 1 |
1850 MHz to 1910 MHz |
1930 MHz to 1990 MHz |
||||
Band class 14 |
1850 MHz to 1915 MHz |
1930 MHz to 1995 MHz |
||||
Band class 6 |
1920 MHz to 1980 MHz |
2110 MHz to 2170 MHz |
||||
|
Max. number of carriers supported by one CRFU |
8 |
|||||
|
Transmitter and receiver specifications |
Frequency band |
Receiver sensitivity |
Max. transmit power |
|||
Band class 0 |
–130 dBm |
100 W |
||||
Band class 15 |
–127 dBm |
80 W |
||||
Band class 1 |
–127 dBm |
80 W |
||||
Band class 14 |
–127 dBm |
80 W |
||||
Band class 6 |
–127 dBm |
80 W |
||||
Transmission ports |
Max. configuration |
Number of available ports |
||||
One CMPT (4E1) and two UTRPs |
One FE electrical port and one FE optical port (supporting a maximum of 20 E1/T1 links) |
|||||
One CMPT (8E1) and two UTRPs |
One FE electrical port (supporting a maximum of 24 E1/T1 links) |
|||||
NOTE | ||||||
External clock source |
GPS/GLONASS, RGPS, 1PPS +TOD, IP CLK |
|||||
|
Dimensions (height x width x depth) |
900 mm x 600 mm x 450 mm (35.43 in. x 23.62 in. x 17.72 in.) |
|||||
Weight |
Fully-configured cabinet: not more than 150 kg (330.75 lb) |
|||||
Input power supply |
Voltage range for –48 V DC: –57 V DC to –38.4 V DC |
|||||
Power consumption |
BTS type |
Configuration |
Max. power consumption |
Average power consumption |
||
BTS3900 |
S(1/1/1) |
559 W |
430 W |
|||
S(2/2/2) |
694 W |
514 W |
||||
S(3/3/3) |
884 W |
647 W |
||||
S(4/4/4) |
1037 W |
749 W |
||||
|
NOTE typical configuration at 800 MHz. | ||||||
- Trade terms: FOB,CIF,CFR,etc
- Price Terms: L/C,D/P,T/T,Western Union,PAYPAL
- Payment Terms: T/T in advance
- MOQ: 1 pcs
- Port: Hongkong / Shenzhen
- Lead time: Within 5 working days after receipt payment.
- Shipment: Express, Air, Sea
- Supply capability: 200 Piece/Pieces per Week
- Sample availability: Yes( not free)
- Package information: carton package with Huawei /Alcatel / ZTE/ Emerson original package
- All the products 100% New and Original
- Pre-sale&Post-sale Support from HUAWEI&ZTE
- Design and plan ability, low cost alternative solution
- Provide complete transmission product series
- Enough spart part stock
- 1 Year Warranty, Accept RMA
- Ready Stock, Fast Delivery
Sandes Technology Ltd.(STL)focus on the integration and distribution of telecommunication infrastructure and solution, and established the strategic cooperative relationship with Huawei, ZTE, Emerson, Fiberhome, Cisco, Juniper, HP, Alcatel-Lucent, H3C, Narada. Our aim is to provide one-stop purchasing platform for our customer.
Long-term supply Huawei, ZTE full series GSM/UMTS/LTE equipment and spare part:
