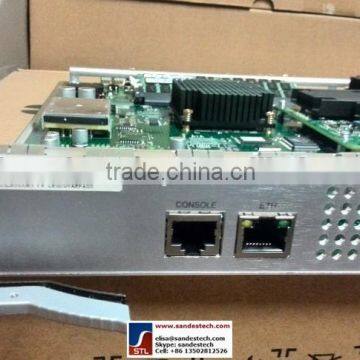

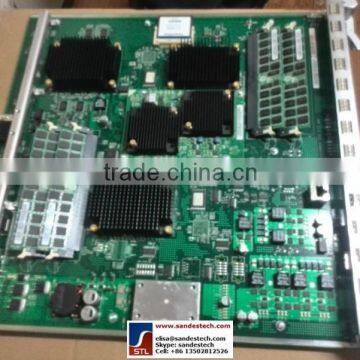

Huawei LE0D0VAMPA00 VAMPA00 03020RRN Value-added Service Unit for Huawei S7703 S7706 S7712

Huawei LE0D0VAMPA00 VAMPA00 03020RRN Value-added Service Unit for Huawei S7703 S7706 S7712 thumbnail-1
Huawei LE0D0VAMPA00 VAMPA00 03020RRN Value-added Service Unit for Huawei S7703 S7706 S7712 thumbnail-2
Huawei LE0D0VAMPA00 VAMPA00 03020RRN Value-added Service Unit for Huawei S7703 S7706 S7712 thumbnail-3
Huawei LE0D0VAMPA00 VAMPA00 03020RRN Value-added Service Unit for Huawei S7703 S7706 S7712 thumbnail-4
Huawei LE0D0VAMPA00 VAMPA00 03020RRN Value-added Service Unit for Huawei S7703 S7706 S7712 photo-1
Huawei LE0D0VAMPA00 VAMPA00 03020RRN Value-added Service Unit for Huawei S7703 S7706 S7712 photo-2
Huawei LE0D0VAMPA00 VAMPA00 03020RRN Value-added Service Unit for Huawei S7703 S7706 S7712 photo-3
Huawei LE0D0VAMPA00 VAMPA00 03020RRN Value-added Service Unit for Huawei S7703 S7706 S7712 photo-4
US$ 200 - 2,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Products Status:
Stock
Ports:
Other, ≥ 48
Transmission Rate:
10/100/1000Mbps
Contact Supplier Request Quote Chat Now
Polytrade Srl
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Hongkong/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Ports Other, ≥ 48
Transmission Rate 10/100/1000Mbps
Function LACP, POE, QoS, SNMP, Stackable, VLAN Support
Communication Mode Other, Full-Duplex & Half-Duplex
Certification FCC,CE
Switch Capacity 100G
Brand Name Huawei
Model Number Huawei LE0D0VAMPA00
Place of Origin Guangdong, China

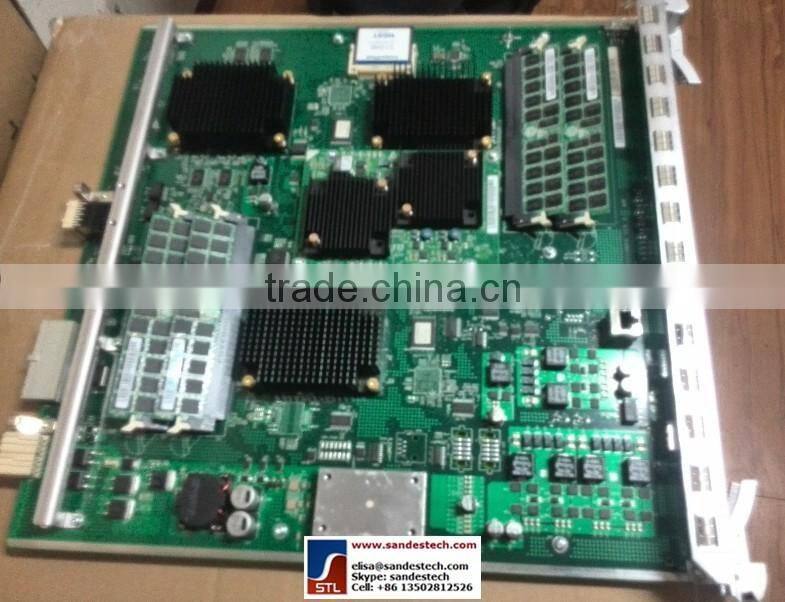

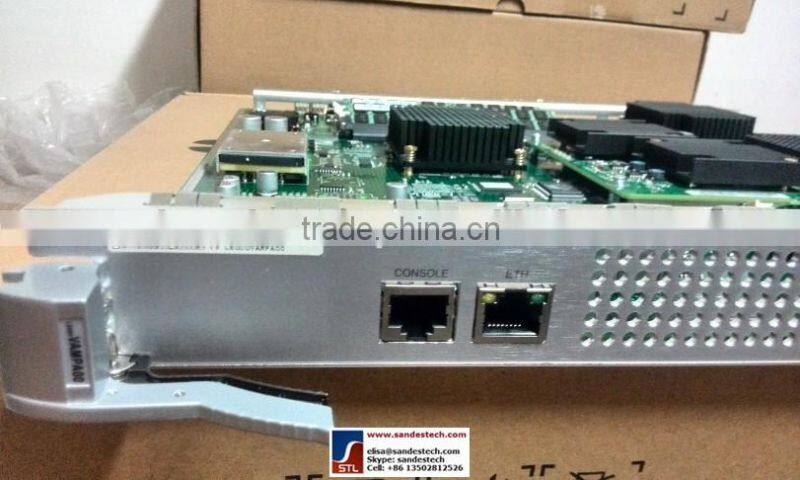

Huawei LE0D0VAMPA00 VAMPA00 03020RRN Value-added service unit  for Huawei S7703 S7706 S7712

Huawei LE0D0VAMPA00 VAMPA00 03020RRN Value-added service unit for Huawei S7703 S7706 S7712Huawei LE0D0VAMPA00 VAMPA00 03020RRN Value-added service unit for Huawei S7703 S7706 S7712Huawei LE0D0VAMPA00 VAMPA00 03020RRN Value-added service unit for Huawei S7703 S7706 S7712Huawei LE0D0VAMPA00 VAMPA00 03020RRN Value-added service unit for Huawei S7703 S7706 S7712



Product Description

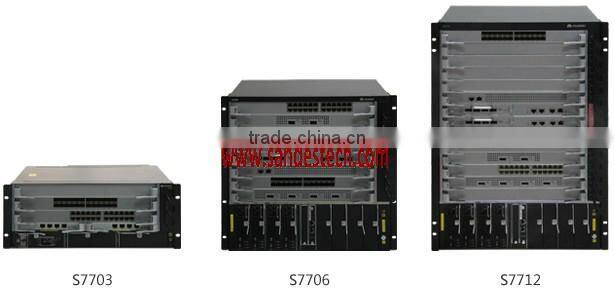

HUAWEI S7700 Routing Switch S7703 S7706 S7712



Huawei LE0D0VAMPA00 VAMPA00 03020RRN Value-added service unit for Huawei S7703 S7706 S7712Huawei LE0D0VAMPA00 VAMPA00 03020RRN Value-added service unit for Huawei S7703 S7706 S7712Huawei LE0D0VAMPA00 VAMPA00 03020RRN Value-added service unit for Huawei S7703 S7706 S7712Huawei LE0D0VAMPA00 VAMPA00 03020RRN Value-added service unit for Huawei S7703 S7706 S7712Huawei LE0D0VAMPA00 VAMPA00 03020RRN Value-added service unit for Huawei S7703 S7706 S7712



Item

S7703

S7706

S7712

Switching capacity

1.92 Tbps

3.84 Tbps/5.12 Tbps

3.84Tbps/5.12 Tbps

Forwarding performance

576 Mpps/1440 Mpps

1152 Mpps/2880 Mpps

1344 Mpps/3360 Mpps

Service Slot

3

6

12

VLAN

Three types of interfaces: access, trunk, and hybrid

Default VLAN

VLAN switching

QinQ and selective QinQ

MAC address-based VLAN assignment

MAC address

MAC address learning and aging

Static, dynamic, and blackhole MAC address entries

Packet filtering based on source MAC addresses

Limit on the number of MAC addresses learned on ports and VLANs

Ring Protection

STP(IEEE 802.1d), RSTP(IEEE 802.1w), and MSTP(IEEE 802.1s)

SEP

BPDU protection, root protection, and loop protection

BPDU tunnel

ERPS(G.8032)

IP routing

IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS

IPv6 dynamic routing protocols, such as RIPng, OSPFv3, ISISv6, and BGP4+

Multicast

IGMPv1/v2/v3 and IGMP v1/v2/v3 snooping

PIM-DM, PIM-SM, and PIM-SSM

MSDP and MBGP

Fast leave

Multicast traffic control

Multicast querier

Multicast packet suppression

Multicast CAC

Multicast ACL

MPLS

Basic MPLS functions

MPLS OAM

MPLS-TE

MPLS VPN/VLL/VPLS

CSS switch fabric clustering

CSS Switch Fabric Clustering (S7706 and S7712)

Service port clustering

Service Port Clustering (S7706 and S7712)

Reliability

LACP and E-Trunk between devices

VRRP and BFD for VRRP

BFD for BGP/IS-IS/OSPF/static route

NSF and GR for BGP/IS-IS/OSPF/LDP

TE FRR and IP FRR

Ethernet OAM (IEEE 802.3ah and 802.1ag)

ITU-Y.1731

DLDP

ISSU

QoS

Traffic classification based on Layer 2 protocol packet header,

Layer 3 protocol information, Layer 4 protocol information, and 802.1p priority

ACL, CAR, re-mark, and scheduling

Queue scheduling algorithms including SP, WRR, DRR, SP+WRR, and SP+DRR

Congestion avoidance mechanisms, such as WRED and tail drop

Traffic shaping

Configuration and maintenance

Easy Operation

Console and SSH terminals

Network management protocols, such as SNMPv1/v2/v3

File uploading and downloading using FTP and TFTP

BootROM upgrade and remote upgrade

Hot patches

User operation logs

Security and management

802.1x authentication and portal authentication

NAC

RADIUS and HWTACACS authentication

Different user levels for commands, preventing unauthorized users from using certain commands

Defense against DoS attacks, TCP SYN Flood attacks, UDP Flood attacks, broadcast storms, and heavy traffic attacks

1K CPU queues

Ping and traceroute

RMON

Value-added service

Firewall

NAT

Netstream

IPSec

Load balancing

AC

IPS

Energy conservation

IEEE 802.3az: Energy Efficient Ethernet (EEE)

Dimensions (W x D x H)

442 mm x 476 mm x 175 mm

442 mm x 476 mm x 442 mm

442 mm x 476 mm x 664 mm

Chassis weight (empty)

< 15 kg

<30 kg

< 45 kg

Working voltage

DC: –38.4 V to –72 V
AC: 90 V to 290 V

Maximum power consumption

of the entire equipment

≤800 W

≤1600 W

≤3000 W

Maximum PoE power

2200 W

8800 W

8800 W







Huawei LE0D0VAMPA00 VAMPA00 03020RRN Value-added service unit for Huawei S7703 S7706 S7712





Packaging & Shipping
  • Trade terms: FOB,CIF,CFR,etc
  • Price Terms: L/C,D/P,T/T,Western Union,PAYPAL
  • Payment Terms: T/T in advance
  • MOQ: 1 pcs
  • Port: Hongkong / Shenzhen
  • Lead time: Within 5 working days after receipt payment.
  • Shipment: Express, Air, Sea
  • Supply capability: 200 Piece/Pieces per Week
  • Sample availability: Yes( not free)
  • Package information: carton package with Huawei /Alcatel / ZTE/ Emerson original package

Huawei LE0D0VAMPA00 VAMPA00 03020RRN Value-added service unit for Huawei S7703 S7706 S7712

Our Services
  • All the products 100% New and Original
  • Pre-sale&Post-sale Support from HUAWEI&ZTE
  • Design and plan ability, low cost alternative solution
  • Provide complete transmission product series
  • Enough spart part stock
  • 1 Year Warranty, Accept RMA
  • Ready Stock, Fast Delivery
Huawei LE0D0VAMPA00 VAMPA00 03020RRN Value-added service unit for Huawei S7703 S7706 S7712
