Product Details
Products Status: | Stock | Ports: | Other, ≥ 48 | Transmission Rate: | 10/100/1000Mbps |
Function: | LACP, POE, QoS, SNMP, Stackable, VLAN Support | Communication Mode: | Other, Full-Duplex & Half-Duplex | Certification: | FCC,CE |
Switch Capacity: | 100G | Brand Name: | Huawei | Model Number: | Huawei S7703 S7706 S7712 |
Place of Origin: | Guangdong, China |

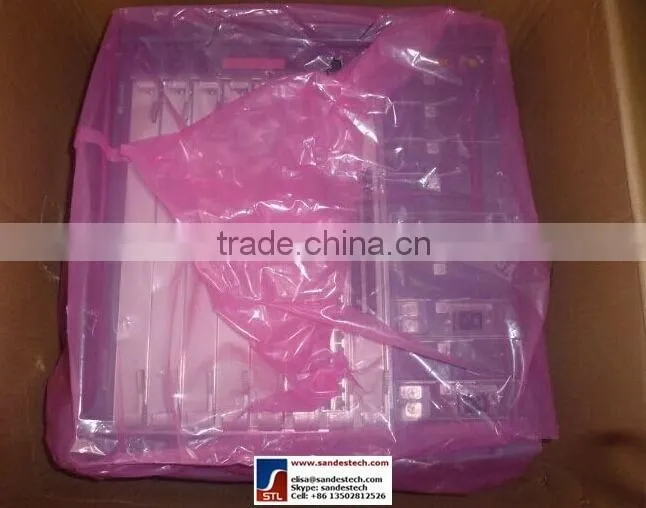

Packaging Details
Huawei Orginal Packaging
Product Description

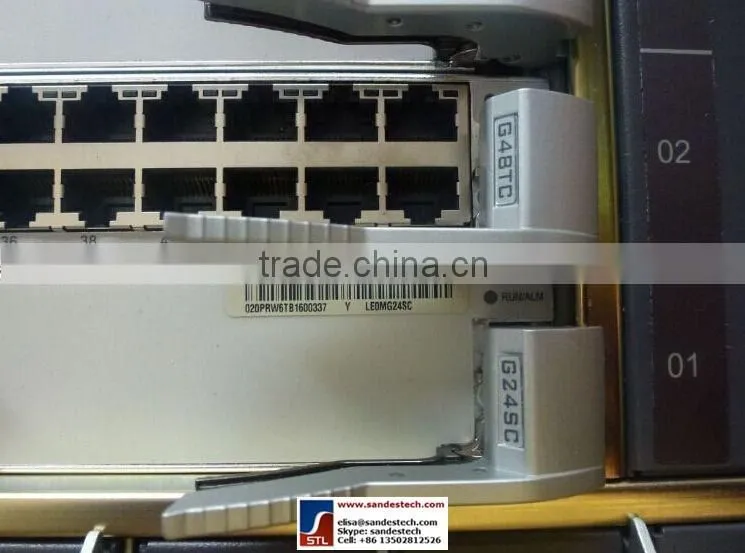

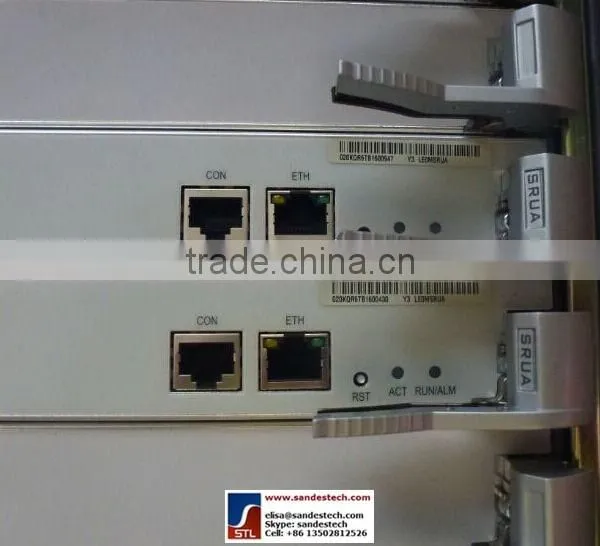

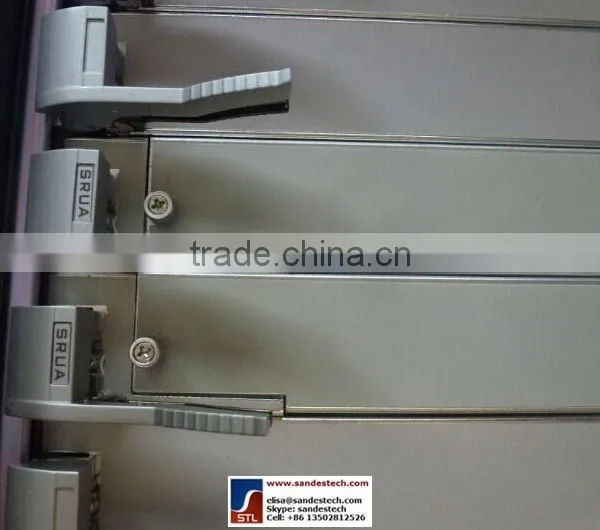

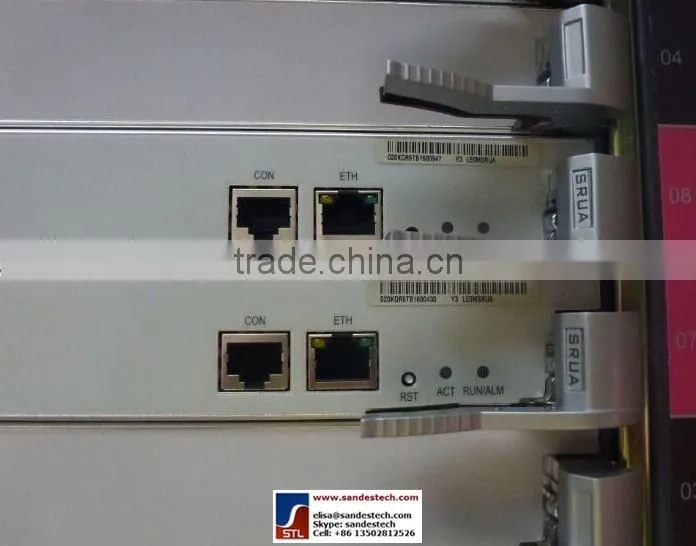

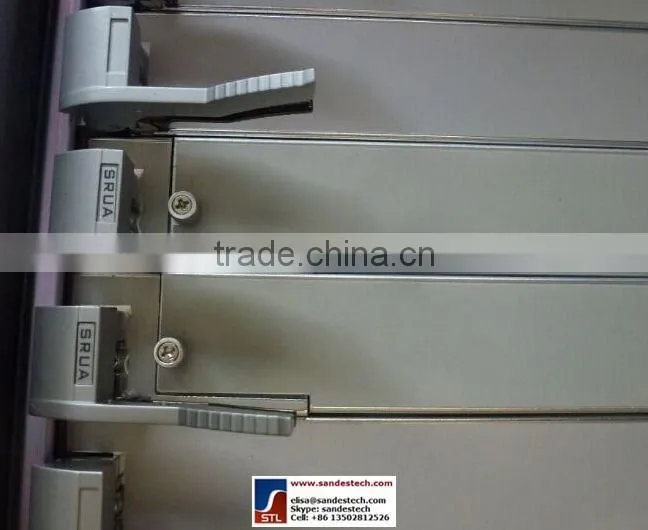

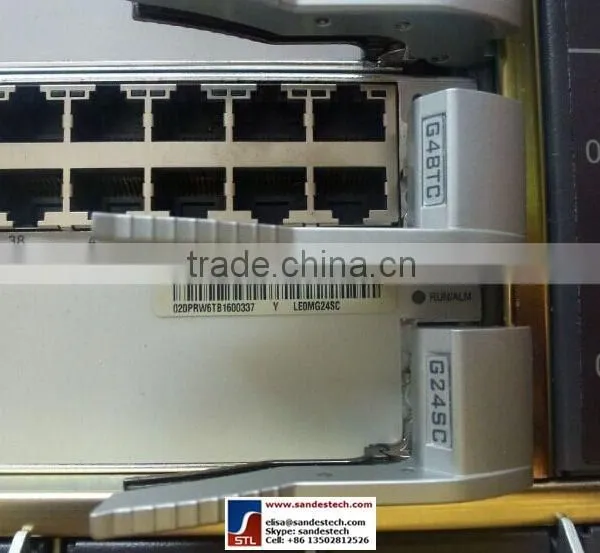

Huawei S7703 S7706 S7712 with ZTE S7700 SRUA ES0D0G48SA ES0D0G48SC ES0D0X2UXAC ES0D0X4UXA ES0D0X4UXC

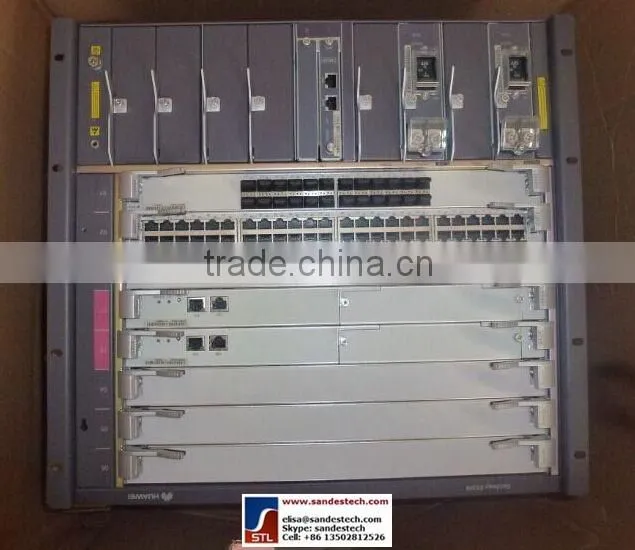

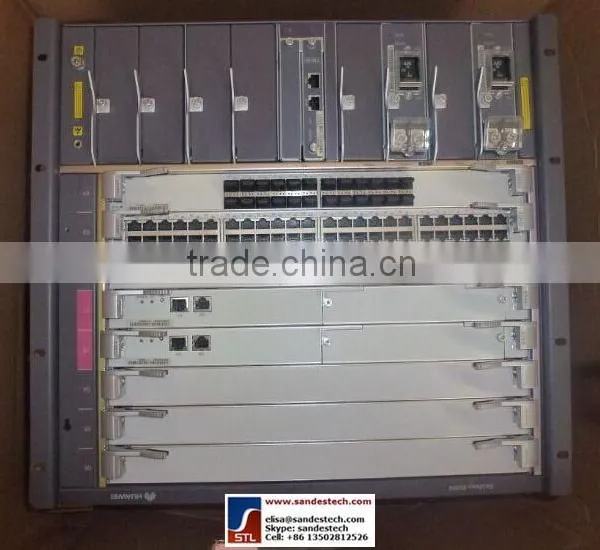

HUAWEI S7700 Routing Switch S7703 S7706 S7712
Item | S7703 | S7706 | S7712 |
Switching capacity | 1.92 Tbps | 3.84 Tbps/5.12 Tbps | 3.84Tbps/5.12 Tbps |
Forwarding performance | 576 Mpps/1440 Mpps | 1152 Mpps/2880 Mpps | 1344 Mpps/3360 Mpps |
Service Slot | 3 | 6 | 12 |
VLAN | Three types of interfaces: access, trunk, and hybrid | ||
Default VLAN | |||
VLAN switching | |||
QinQ and selective QinQ | |||
MAC address-based VLAN assignment | |||
MAC address | MAC address learning and aging | ||
Static, dynamic, and blackhole MAC address entries | |||
Packet filtering based on source MAC addresses | |||
Limit on the number of MAC addresses learned on ports and VLANs | |||
Ring Protection | STP(IEEE 802.1d), RSTP(IEEE 802.1w), and MSTP(IEEE 802.1s) | ||
SEP | |||
BPDU protection, root protection, and loop protection | |||
BPDU tunnel | |||
ERPS(G.8032) | |||
IP routing | IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS | ||
IPv6 dynamic routing protocols, such as RIPng, OSPFv3, ISISv6, and BGP4+ | |||
Multicast | IGMPv1/v2/v3 and IGMP v1/v2/v3 snooping | ||
PIM-DM, PIM-SM, and PIM-SSM | |||
MSDP and MBGP | |||
Fast leave | |||
Multicast traffic control | |||
Multicast querier | |||
Multicast packet suppression | |||
Multicast CAC | |||
Multicast ACL | |||
MPLS | Basic MPLS functions | ||
MPLS OAM | |||
MPLS-TE | |||
MPLS VPN/VLL/VPLS | |||
CSS switch fabric clustering | CSS Switch Fabric Clustering (S7706 and S7712) | ||
Service port clustering | Service Port Clustering (S7706 and S7712) | ||
Reliability | LACP and E-Trunk between devices | ||
VRRP and BFD for VRRP | |||
BFD for BGP/IS-IS/OSPF/static route | |||
NSF and GR for BGP/IS-IS/OSPF/LDP | |||
TE FRR and IP FRR | |||
Ethernet OAM (IEEE 802.3ah and 802.1ag) | |||
ITU-Y.1731 | |||
DLDP | |||
ISSU | |||
QoS | Traffic classification based on Layer 2 protocol packet header, Layer 3 protocol information, Layer 4 protocol information, and 802.1p priority | ||
ACL, CAR, re-mark, and scheduling | |||
Queue scheduling algorithms including SP, WRR, DRR, SP+WRR, and SP+DRR | |||
Congestion avoidance mechanisms, such as WRED and tail drop | |||
Traffic shaping | |||
Configuration and maintenance | Easy Operation | ||
Console and SSH terminals | |||
Network management protocols, such as SNMPv1/v2/v3 | |||
File uploading and downloading using FTP and TFTP | |||
BootROM upgrade and remote upgrade | |||
Hot patches | |||
User operation logs | |||
Security and management | 802.1x authentication and portal authentication | ||
NAC | |||
RADIUS and HWTACACS authentication | |||
Different user levels for commands, preventing unauthorized users from using certain commands | |||
Defense against DoS attacks, TCP SYN Flood attacks, UDP Flood attacks, broadcast storms, and heavy traffic attacks | |||
1K CPU queues | |||
Ping and traceroute | |||
RMON | |||
Value-added service | Firewall | ||
NAT | |||
Netstream | |||
IPSec | |||
Load balancing | |||
AC | |||
IPS | |||
Energy conservation | IEEE 802.3az: Energy Efficient Ethernet (EEE) | ||
Dimensions (W x D x H) | 442 mm x 476 mm x 175 mm | 442 mm x 476 mm x 442 mm | 442 mm x 476 mm x 664 mm |
Chassis weight (empty) | < 15 kg | <30 kg | < 45 kg |
Working voltage | DC: –38.4 V to –72 V | ||
Maximum power consumption of the entire equipment | ≤800 W | ≤1600 W | ≤3000 W |
Maximum PoE power | 2200 W | 8800 W | 8800 W |
- Trade terms: FOB,CIF,CFR,etc
- Price Terms: L/C,D/P,T/T,Western Union,PAYPAL
- Payment Terms: T/T in advance
- MOQ: 1 pcs
- Port: Hongkong / Shenzhen
- Lead time: Within 5 working days after receipt payment.
- Shipment: Express, Air, Sea
- Supply capability: 200 Piece/Pieces per Week
- Sample availability: Yes( not free)
- Package information: carton package with Huawei /Alcatel / ZTE/ Emerson original package
- All the products 100% New and Original
- Pre-sale&Post-sale Support from HUAWEI&ZTE
- Design and plan ability, low cost alternative solution
- Provide complete transmission product series
- Enough spart part stock
- 1 Year Warranty, Accept RMA
- Ready Stock, Fast Delivery
