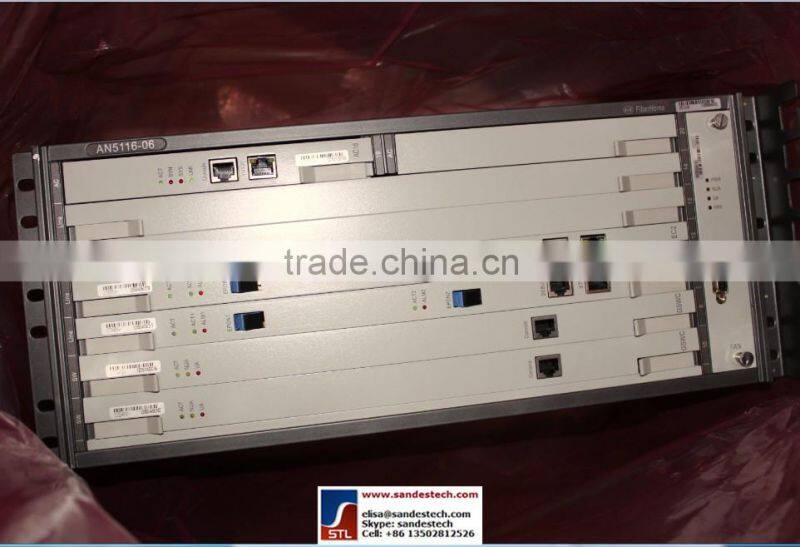

Fiberhome AN5116-06 gpon olt, gpon, gepon olt, epon olt, gepon, epon, Fiberhome olt
AN5516-04 platform produced by FiberHome is one of the most advanced FTTX equipment. The AN5516-04 is carrier class OLT equipment with large capacity. The AN5516-04 provides EPON/GPON/10G PON/P2P user interfaces and GE/10GE uplink interfaces.
Key Features
PON features
-- Unify platform for EPON/GPON/10G PON/P2P
-- Sharing service cards with AN5116-06B
-- Up to 32 PON ports per chassis
-- Flexible uplink card :2*10GE+2*GE,1*STM-1, 32*E1
Synchronization features
-- High precision sync-Ethernet & 1588v2
-- 1PPS+ToD output
Reliability features
-- Core card 1+1 redundancy
-- OSPF dual homing
-- STP/RSTP/MSTP ring protection
-- Trunk/LACP for uplink protection

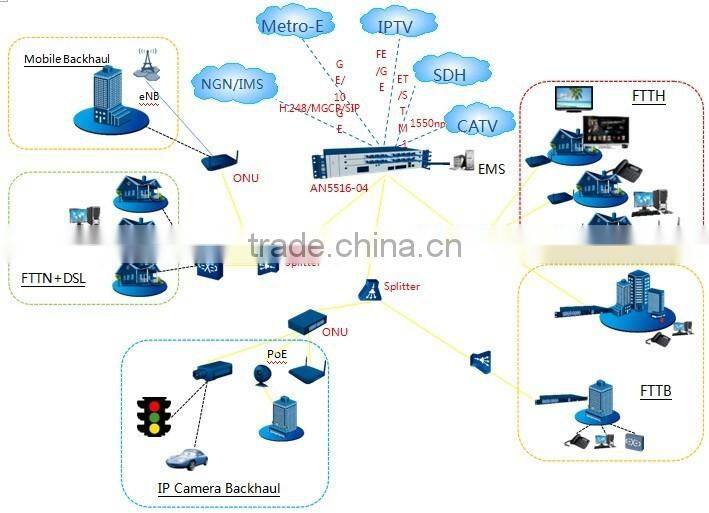

Typical Application Scenarios
Product Specifications
Item |
Specification |
|
Dimensions(mm) |
88(H)/ 239.5(D)/480(W) |
|
Total slot |
6 |
|
Service slot |
2 |
|
Service Interface |
Uplink |
2*10GE+2*GE,1*STM-1, 32*E1 |
EPON |
8/16 ports EPON cards |
|
GPON |
8/16 ports GPON cards |
|
10G GPON |
4 ports 10G GPON card |
|
10G EPON |
4/8 ports 10G EPON cards |
|
P2P Ethernet |
16 ports P2P Ethernet card |
|
Power inputs |
Equipment room voltage: -48V DC (-40V ~ -57V) |
|
Power consumption |
<200W(Fully loaded with EPON cards) |
|
<200W(Fully loaded with GPON cards) | ||
Weight |
Empty subrack (fans included):4.1kg |
|
Operation temperature |
-10 ℃ ~ +55 ℃ |
|
Operation relative humidity |
≤90% |
|
