Fiberhome AN5516-01 EPON GPON OLT PUBA GU6F HSWA HU1A GC8B GC4B EC8B EC4B

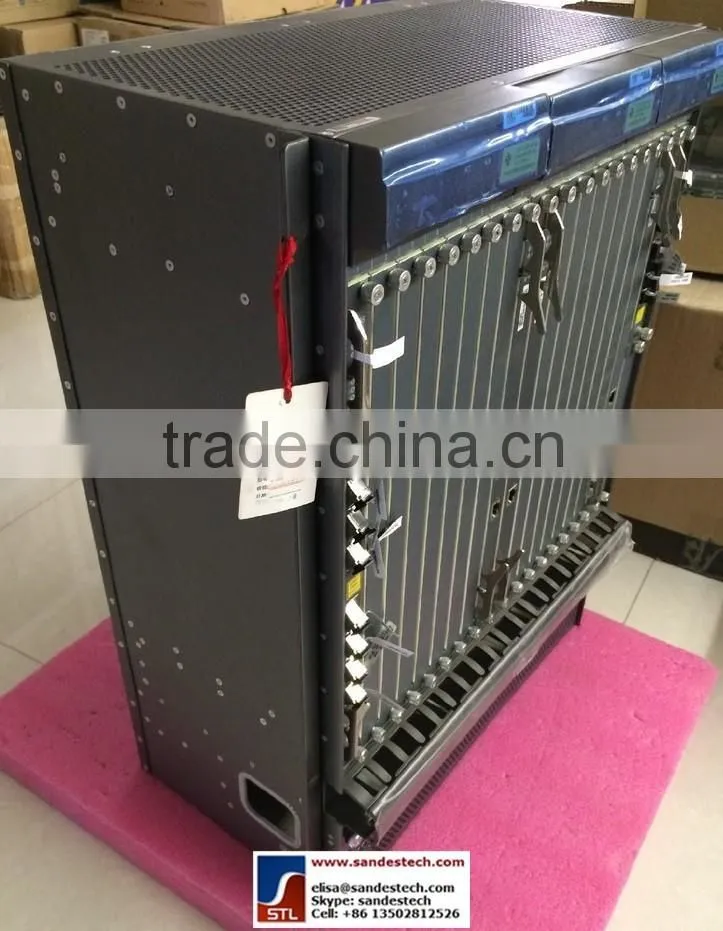

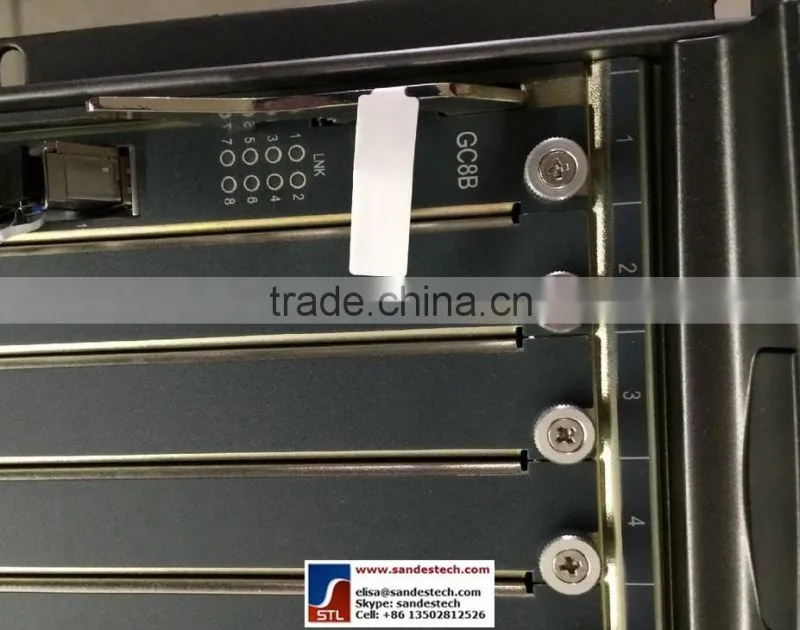

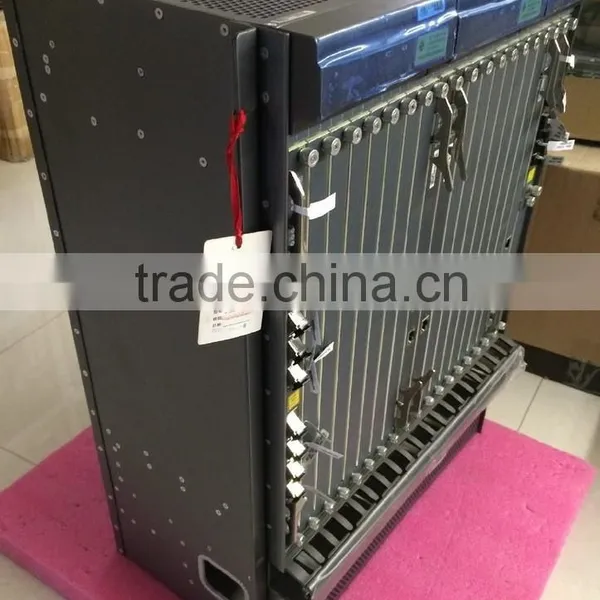

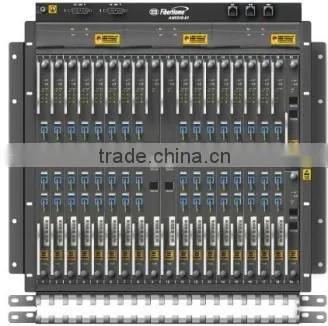

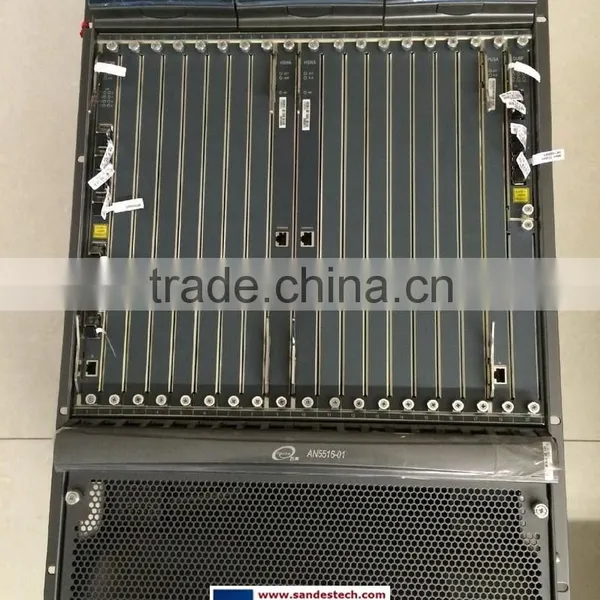

FiberHome AN5516-01 OLT
AN5x16 OLT equipment is carrier-class 10 Gigabit Platform PON central office equipment, which adopts industry-leading technology and supports full front card, front access design, as well as high-density XPON port cards. In addition, it supports GE/10GE/STM-1/E1 uplink interfaces, which can be shared on the same platform with GPON/EPON/10G PON/P2P for sustainable evolution to make the network construction more effectively. Using high performance chips makes it cost-effective, green and network reliable.
The AN5516-06 is an EPON / GPON integrated access product with intermediate capacity offered by FiberHome. It is compact carrier-class central office equipment. It caters for the requirements on networking for FTTH, FTTB, base station backhauling and private line services. It supports multiple services such as Vo IP, TDM, data, IPTV and CATV to meet the requirement of Triple-play. In addition, it is used together with the remote end ONU forming a complete convergence layer function.
Characteristics |
Descriptions |
||
AN5516-01 |
AN5516-06 |
AN5516-04 |
|
Overall performance |
|
|
|
Core switching capacity |
976G/bits |
400G/bits |
400G/bits |
Backplane bus switching capacity |
3.25TG/bits |
432G/bits |
80G/bits |
Transmission distance |
20KM |
20KM |
20KM |
Splitting ratio |
1:64 |
1:64 |
1:64 |
Core switching standby switchover time |
<50ms |
<50ms |
<50ms |
Uplink card standby switchover time |
<50ms |
<50ms |
<50ms |
Optical path protection switching time |
<200ms |
<200ms |
<200ms |
Operation temperature |
0°C~+50°C |
||
DBA |
|
|
|
Minimum bandwidth allocation granularity |
≤64kbit/s |
≤64kbit/s |
≤64kbit/s |
Configurable minimum bandwidth |
≤256kbit/s |
≤256kbit/s |
≤256kbit/s |
Precision |
±5% |
±5% |
±5% |
Ethernet Link Performance |
|
|
|
Throughput |
Uplink side ≥950Mbit/s |
||
Downlink side |
1.25G model: ≥980Mbit/s |
||
2.5G model: ≥1.8Gbit/s | |||
Transmission delay |
Uplink transmission delay: <1.5ms |
||
Downlink transmission delay: <1ms | |||
Packet loss Rate |
Uplink overload packet loss rate: <10% |
||
Downlink overload packet loss rate: <5% | |||
Long term packet loss rate |
Under the specific flow (Throughput:90%), long term (24H) Ethernet business packet loss rate: 0 |
||
Wavelength |
1310nm uplink, 1490nm downlink |
||
Access capability | |||
EPON ports (Max) |
128 |
48 |
16 |
Uplink ports (Max) |
4*10GE+4*GE/2*10GE+8*GE/12*GE |
4*10GE+4*GE/2*10GE+8*GE/12*GE |
6*GE |
STM-1 optical ports (Max) |
32 |
12 |
|
E1 (Max) |
512 |
192 |
|
Business characteristic | |
Redundancy protection |
Core switching card supports 1+1 standby protection switching Uplink card supports 1+1 standby protection switching, uplink ports supports Trunk and dual-homing protection C155A card supports 1+1 protection EC4B card supports optical line protection switching Power supply supports 1+1 protection AC, DC |
VLAN |
Support 4K IEEE 802.1Q VLAN, 802.1 P Support QinQ VLAN Support CoS copy functions Support VLAN conversion functions |
Interface performance |
IEEE 802.1D STP IEEE 802.Iw RSTP IEEE 802.3x Flow Control. DHCP Option 82 DHCP Relay IEEE 802.3ad Link Aggregation. SP, WRR, SP+WRR |
MAC |
16000 MAC Address Filtering |
Ports dynamic aggregation |
Support L2 ports dynamic aggregation functions, achieve LACP protocol |
L3 functions |
Routing: RIP v/1v2, OSPF; 8K ARP table: 8000 Port mirroring |
Multicast |
Support IGMP Proxy/Snooping Support controllable multicast Support multicast VLAN, can cross VLAN multicast Support online inquiry multicast information, multicast information statistics Support multicast business CDR Support multicast preview and pre-join group Support 4K multicast group |
