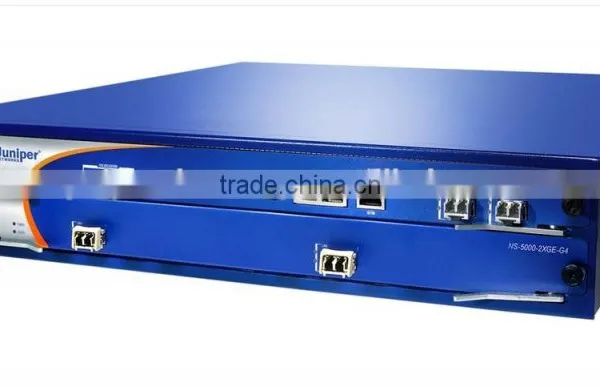

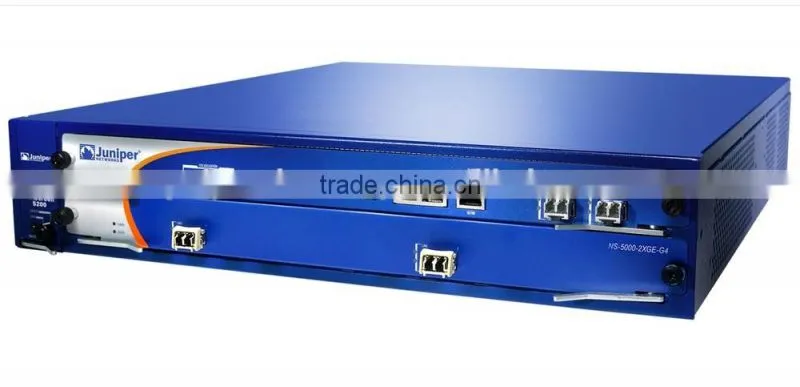

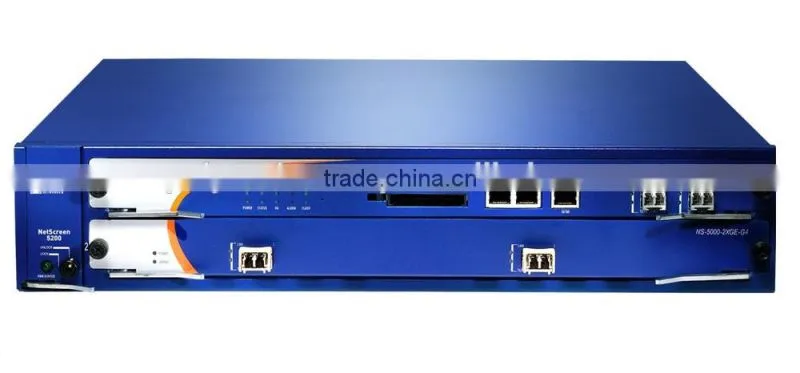

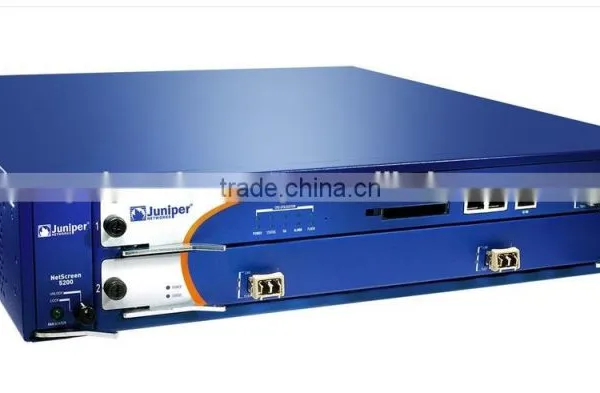

Juniper Firewall NetScreen-5200 NS5200 NS-5200 NetScreen 5200
Overview
NetScreen-5200 is a comprehensive security system suited for large enterprise network backbones including departmental or campus segmentation, enterprise data centers, and other high-density server environments and carrier-based managed services or core infrastructures.
Its two-slot chassis provides excellent flexibility and scalability, while providing high levels of security that integrate firewall security, VPN security, traffic management functionality, denial of service (DoS), and distributed denial of service (DDoS) protection.
Built around Juniper’s third-generation security ASIC and distributed system architecture, NetScreen-5200 delivers up to 10 Gbps of firewall throughput in a modular design for scale and flexibility in large enterprise and service provider networks.
Specs
| Number of Interfaces* | 8 mini-GBIC (SX, LX or TX), or 2 XFP 10 Gig (SR or LR) |
| Maximum Number of IP Addresses in Trusted Interfaces | Unrestricted |
| Maximum Throughput | 10 Gbps Firewall 5 Gbps 3DES VPN |
| Maximum Number of Sessions | 1,000,000 |
| Maximum Number of VPN Tunnels | 25,000 |
| Maximum Number of Policies | 40,000 |
| Maximum Number of Virtual Systems | 0 default, upgradeable to 500 |
Features
Modular Design supports scale and flexibility in large enterprise and service provider networks
High Availability is built in for sub-second failover between interfaces or devices
Full Mesh Configurations provide redundant physical paths in the network for maximum resiliency and uptime
Virtual Systems allow partitioning into unique security domains
Interface Flexibility accommodates varying network connectivity and future growth requirements
Virtual Routers provide alternate, concealed routes to final destinations
Security Zones can be customized to increase interface density without additional hardware
Transparent Mode offers firewall, VPN, and DoS protections with minimal network changes
Centralized Management is provided through a graphical Web interface, CLI, or Juniper Networks Network and Security Manager
