Newest machine popular in Guangdong automatic welded wire mesh fence machine
Adaptation range
Widely used in micro-circuit components,IT,automotive parts,pipe welding,sensors,kitchen handle welding,medical equipment welding.welding rod golf,frames,mobile MP3,MP4 shell welding,the lead and the printed circuit board,silion plate contacts connected,integrated circuits,CRT electron gun,relays.laser,coaxial device,optical fiber coupler,all kinds of batteries,advertising companies,glasses,saw blades and other fields.
Advantages
1.Fexibility-fast setups achieved with computer controls
2.Close tolerlance
3.Excellent repeatability
4.Unit cost reductions
5.Material versatility
6.Contact-free,very localized energy means low thermal and mechanical strain on parts
7.Cleaner than electric arc or gas welding
8.No consumables,unless filler material is used of welding
9.Low heat input/minimal heat affect
10.Fine grain structure.excellent weld quality
11.High energy density/high weld speeds
12.No filler material
13.Line of sight access for hard to reach aress
14.Very high precision welding or cutting
15.Little or no burring can make secondary finishing unnessary
16.90% less heat input results in welds with minimal distortion
17.Minimal distortion in heat affected zones
18.No tooling to wear out or change over
19.Non-contact processing eliminates unwanted stress on materials
Application Materia
The AD words laser welding machine use high-energy pulsed laser for welding,it makes the welding more clean than the traditional welding,and enquipment with high-bearing work platform,handle operation,and can wiely used in ad industry..
Technical Parameter
| Specifications option of the machine | ||||||

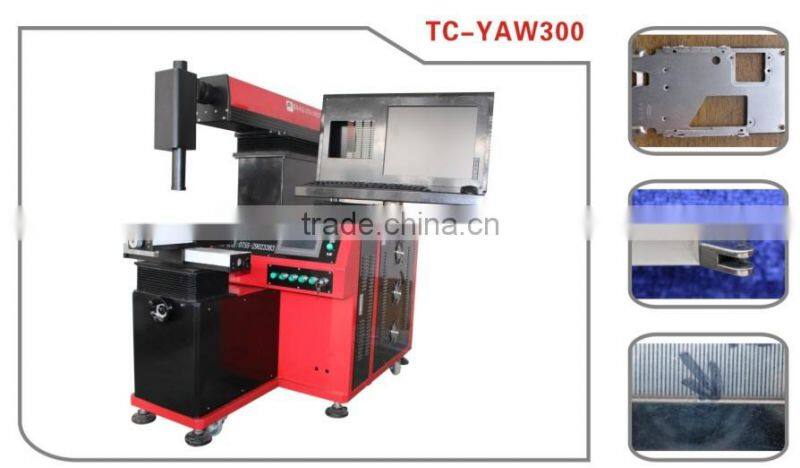

| Model No | TC-YAW300 | |||||
| Laser power | 300W | |||||
| Laser wavelength | 1064 | |||||
| Single pulse energy | 50J | |||||
| Frequency welder | 0~100Hz | |||||
| Pulse width | 0.2~20ms | |||||
| Welding depth | 0.1~2mm | |||||
| Adjustable spot | 0.1~3mm | |||||
| Aimed atpositioning system | Red, CCD surveillance system(optional) | |||||
| Table control system | PC | |||||
| Workbench(XY axis)travel | 300*200mm | |||||
| Rotary axis(C axis) | diameter 80/100mm | |||||
| Laser head vertical axis(Z-axis) | 120mm | |||||
| Table load | 60kg | |||||
| Positioning accuracy | 0.02mm | |||||
| Cooling | water cooling | |||||
| Electricity demand | 220V/50Hz | |||||
| Power consumption | ≤9KW | |||||
| Dlmensions | 1400*650*1320mm | |||||
| Remarks: We can freely clear customs for you . | ||||||
| Price term & Warranty | ||||||
| MOQ: 1 Set | ||||||
| Price term: EXW/ FOB Shenzhen (optional) | ||||||
| Payment term: 30% advanced by T/T, the balanced before shipping | ||||||
| Validity of quote is within 15 days. | ||||||
| Delivery time: In 10-15 days | ||||||
| Warranty: 1 year. With A full range of technical support | ||||||

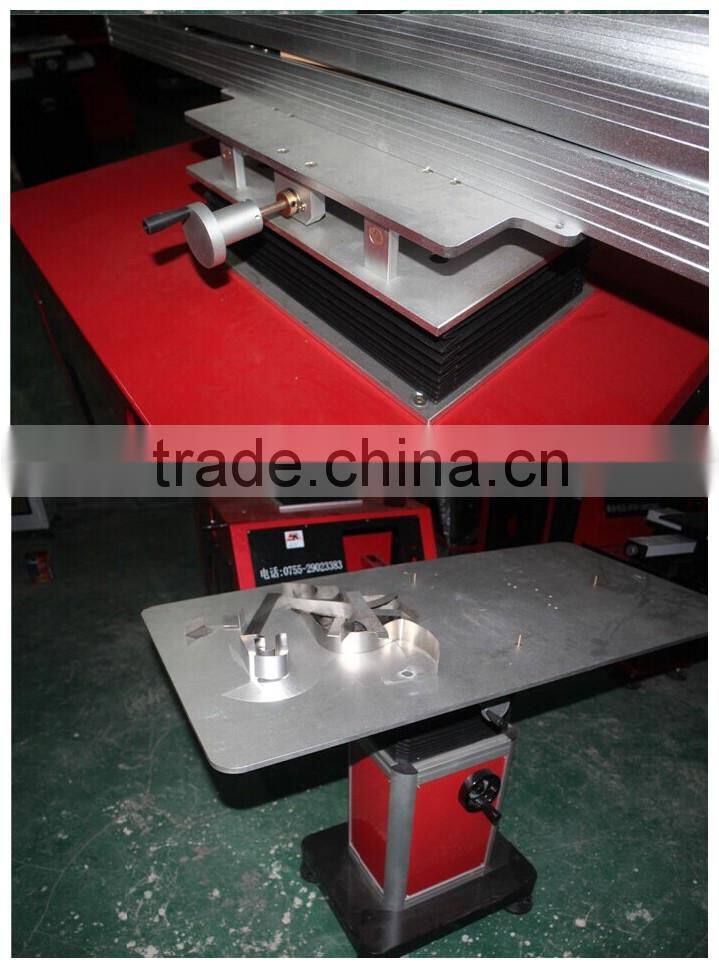

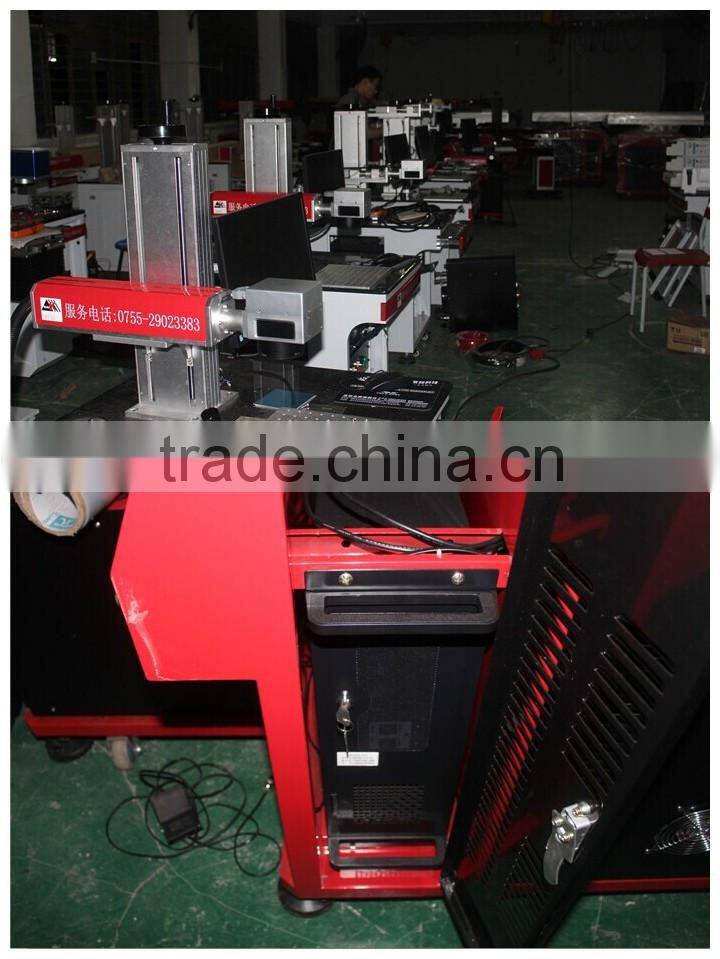

Machine parts

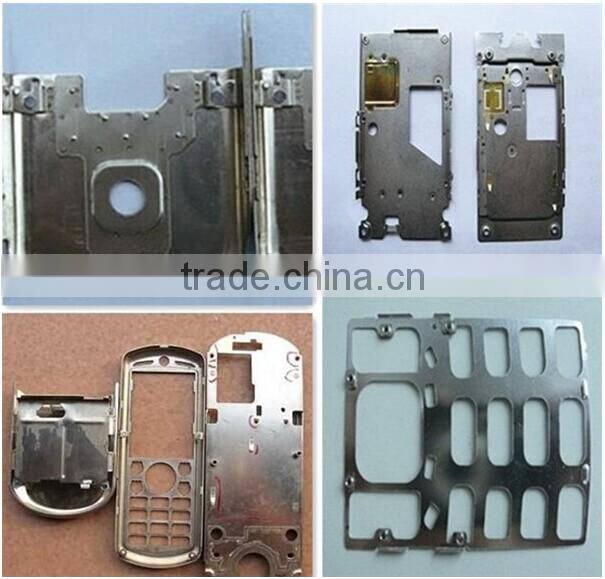

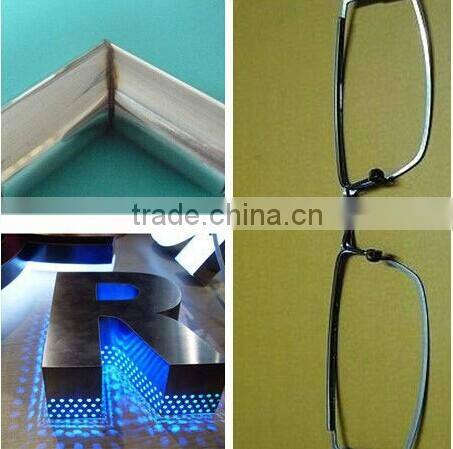

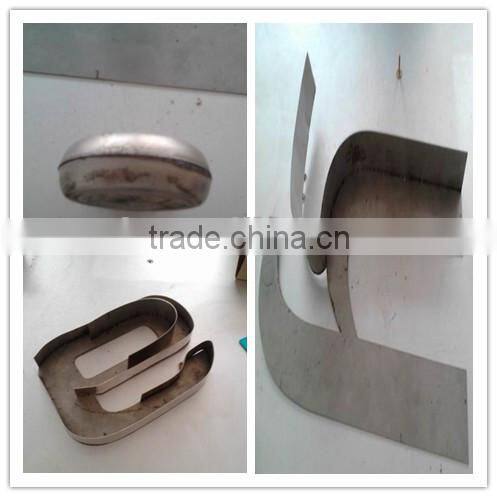

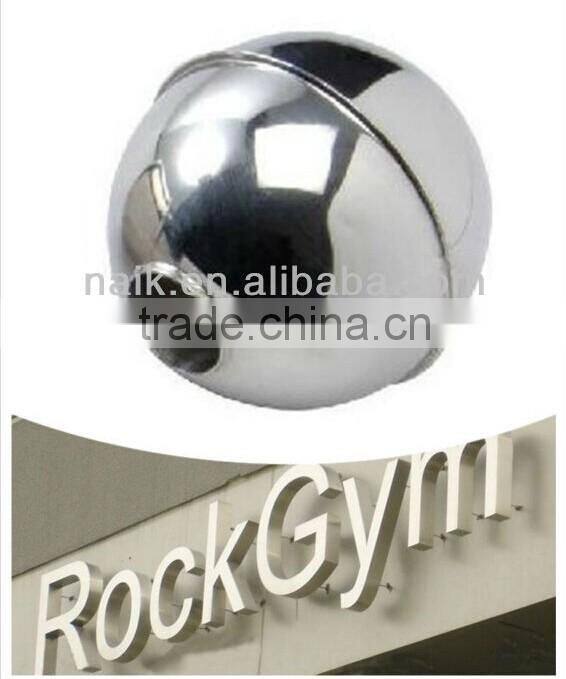

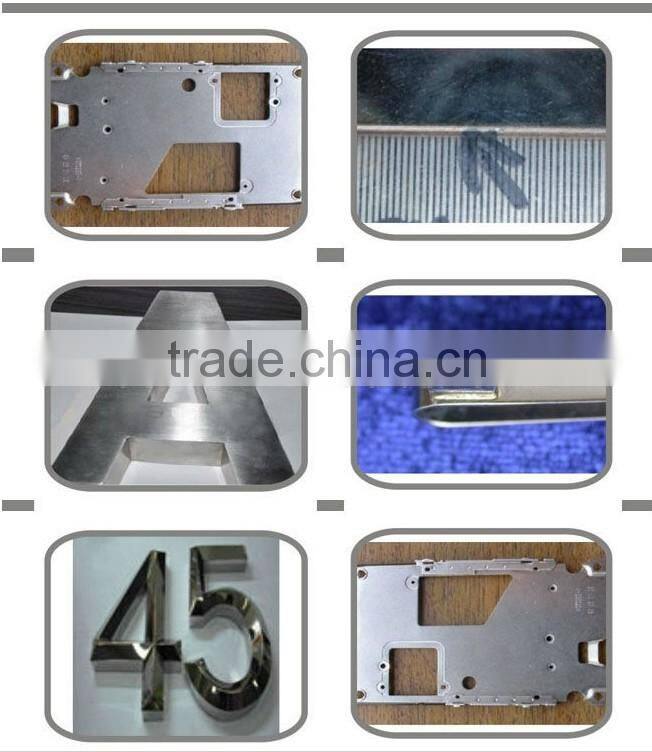

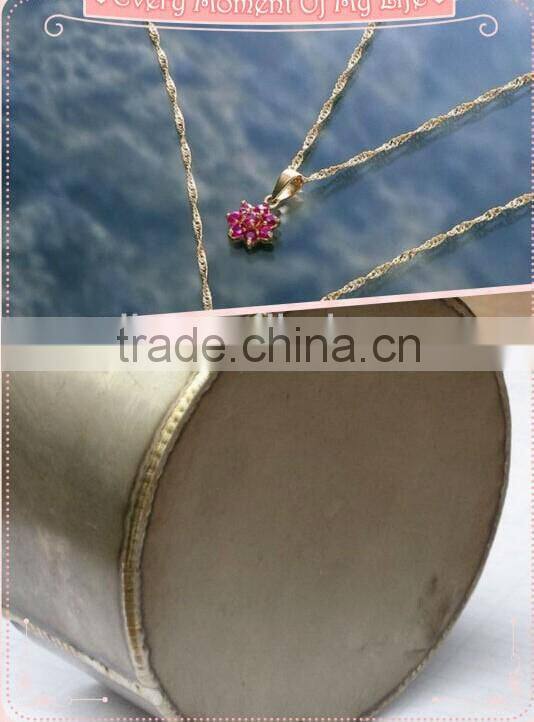

Pictures of sample
Shipping Terms
1,EXW
2,FOB SZ
3,CIF+Destination port
4,If you need us to book shipping cargo or not and etc,pls notice us,we are more pleased to do so.
Payment terms
1,T/T 30%T/T in advance against the order confirmed and pay the balance 70% against goods ready.
2,Western Union Total amount should be below than 5000 USD,and the bank handling fee should be responsible for you.
3,L/C We would like to talk details with you if you really need L/C payment terms.
Other payment terms,pls mention us.

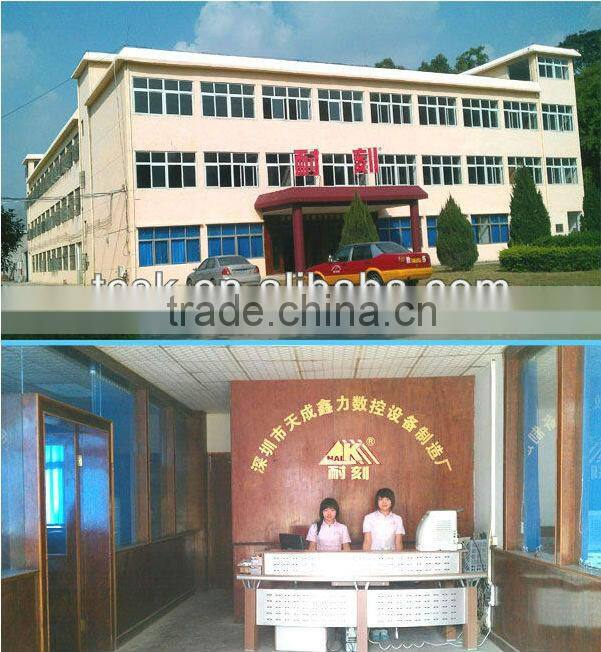

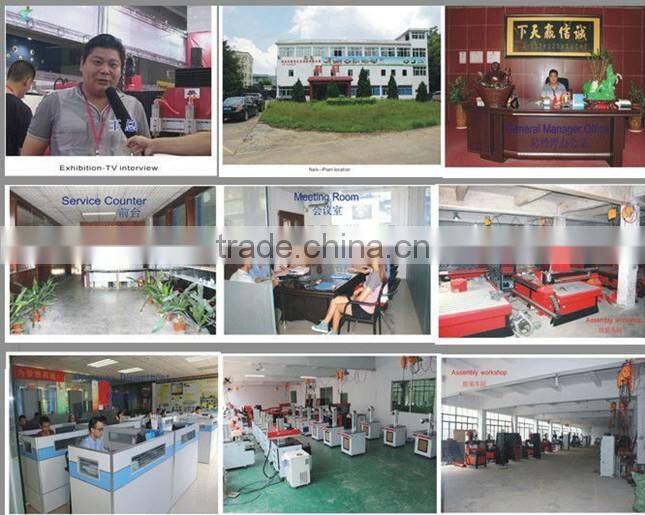

Photos of company
Why choose us
1.One year equipment warranty and maintenance for lifetime.
2.Free installation and test before shipping and free training for operators
3.Advice for the solutions best for customers requirements.
4.Free training and sample provided
5.Meet CE,FDA,ISO9001 standards
Package
We are Professional CNC Router Manufacturer located in Shenzhen city, China. We have been making cnc routers for more than 14 years. Now we have enough experience on customized machine, for example, larger working size machine.
We are now sincerely seeking for Global Exclusive Agent/Distributor, please feel free to contact me if you have any enquiries or questions. Thanks.
