cnc router machine for gypsum
1.CE, ISO9001
2.Working size: Dia500*1200mm
3.High precision
4.gypsum moulding
Price cnc router engraver machine/cnc router machine for gypsum
Product Description of cnc router machine for gypsum
Specifications
| Item | 8STC-1250 |
| Platform Size | Dia 500mm |
| Max Working Range | Dia 500mm*1200mm |
| Z-Axis Traveling Height | 300mm |
| Feeding Height | 1400mm |
| Structure | 12mm square tube |
| Table Material | Iron casting |
| Thickness of gantry | 10mm square tube |
| Thickness of the side wall | 10mm square tube |
| Sheet metal | 2mm baking paint sheet metal |
| Fixing mode | T-clip (vacuum table , pressure roller for option) |
| X,Z Axis Transmission | Taiwan Hiwin 2510 Automatic Anti-gap & double nut ball screw |
| Y Axis Transmission | Rotary axis |
| Rail Configuration | HIWIN 25 Linear Square Guide |
| Positioning Accuracy | ±0.05/300mm |
| Spindle Power | 2.2KW(3.0/5.5/6KW for option) |
| Spindle Rotating Speed | 0-24000 r/min |
| Idle Speed | 0-20000 mm/min |
| Processing Speed | 0-20000 mm/min |
| Resolution | 0.00625/pulse |
| Converter | 2.2KW converter ( best brand ) |
| X.Z,Y Axis Dual Driving Motor | Shenzhen Leadshine 110 stepper motor |
| Movement Control System | Original 53B Ncstudio Control System |
| Cooling System | pump |
| Code formats | G-code , ENG , U00 MMG , NC |
| Stainless Steel Water Tank | 2mm thick |
| Collet Diameter | 3.175mm,4mm,6mm,8mm,10mm,12.7mm |
| Movement Way | Table moving |
| N.W | 2500KGS |
| Machine Power | 110/220/380V 50HZ ±10(Internal Switch Power) |
| Electric Box | computer cabinet |
Application Materials of cnc router machine for gypsum
Suitable for plaster, gypsum, wood etc
Advantages of Plaster of cnc router machine for gypsum
1. Taiwan double nuts ball screw, linear square guide rail.
2. With heavy-duty machine frame, to ensure the structure stability, low inertia and no distortion.
3. Powerful compatibility for most of software such as: MasterCam, ProE, UG etc;
4. Suitable for various kinds of material engraving, such as styrenefoam, plaster, gypsum, wood, PVC etc.

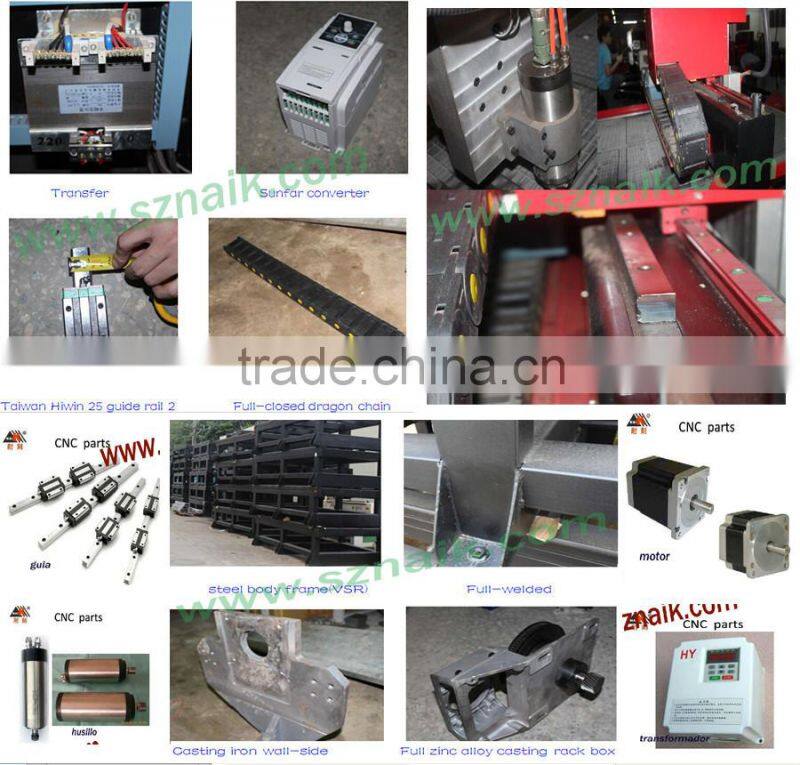

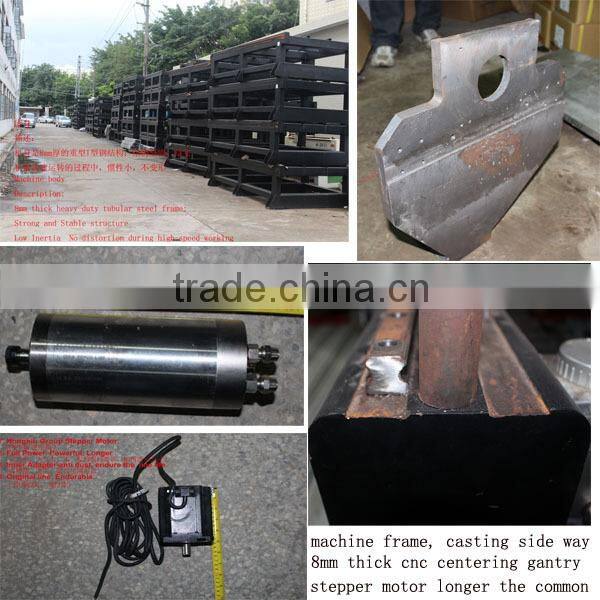

Components of Plaster of cnc router machine for gypsum

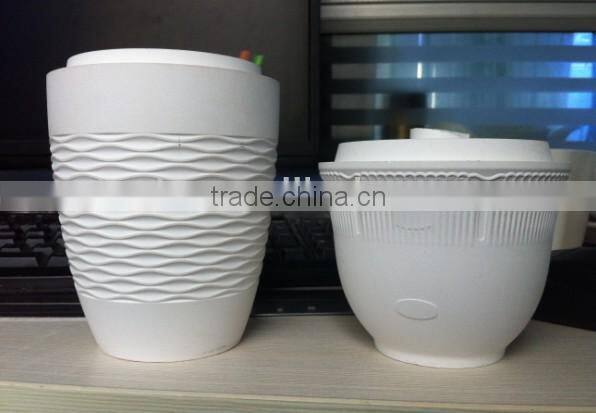

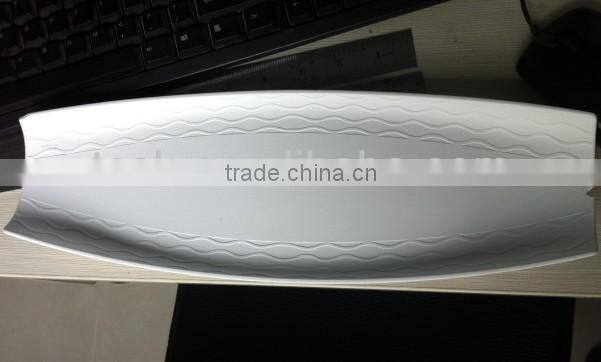

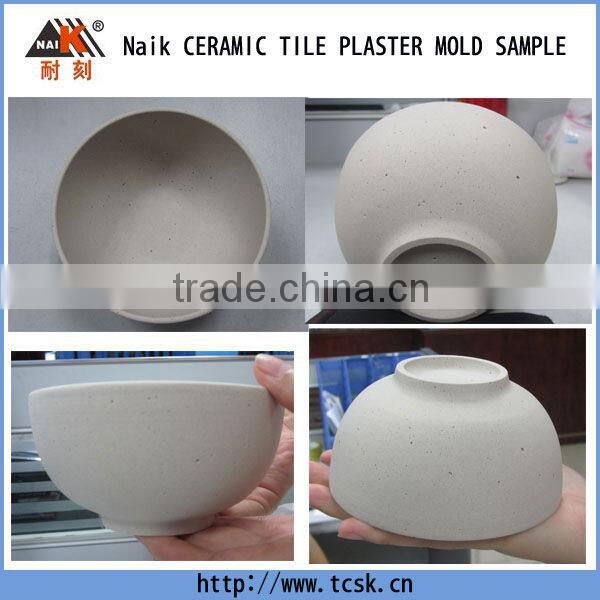

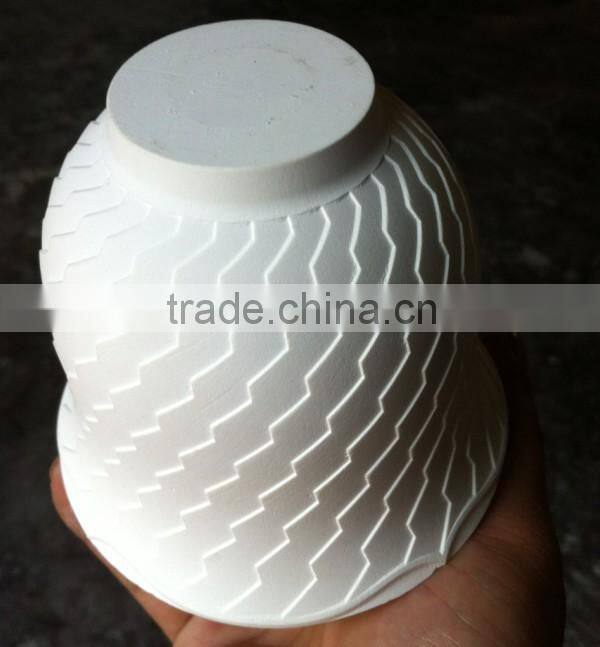

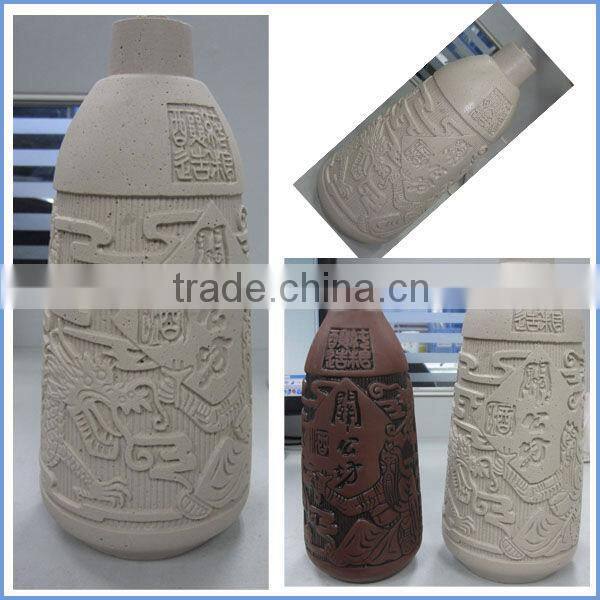

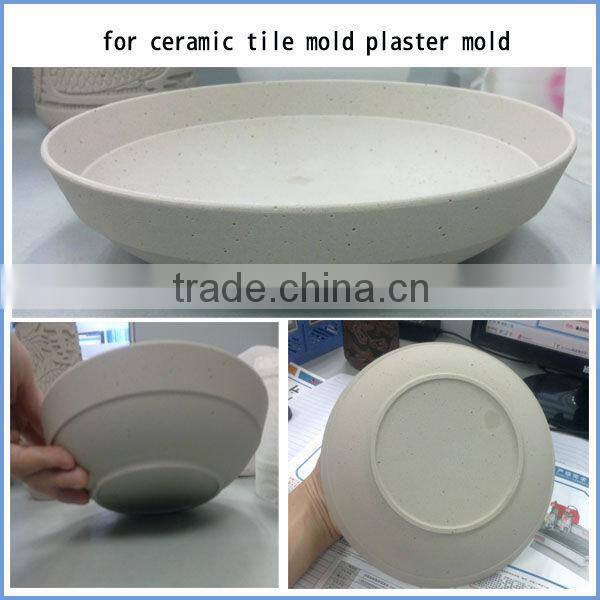

Samples showing of cnc router machine for gypsum
Packaging & Shipping
Our Services
Why choose us ?
1.One year equipment wanranty and maantenance for lifetime.
2.Free installation and best before shipping and free trianing for operators.
3.Advice for the solutions best fr customers requirements.
4.Free trianing and sample provided.
5.Meet CE,FDA,ISO9001 standards
After-sales service
1.24 hours technical surport by phone,email and other contact way.
2.Friendly English version manual and operation video CD diso.
3.365days guarantee.
4.If you meet any problem, can contact us at any time by email or Skype. We will help you solve the problem as soon as possible. And if we can't solve it by interenet, we will send the engineer to your place.

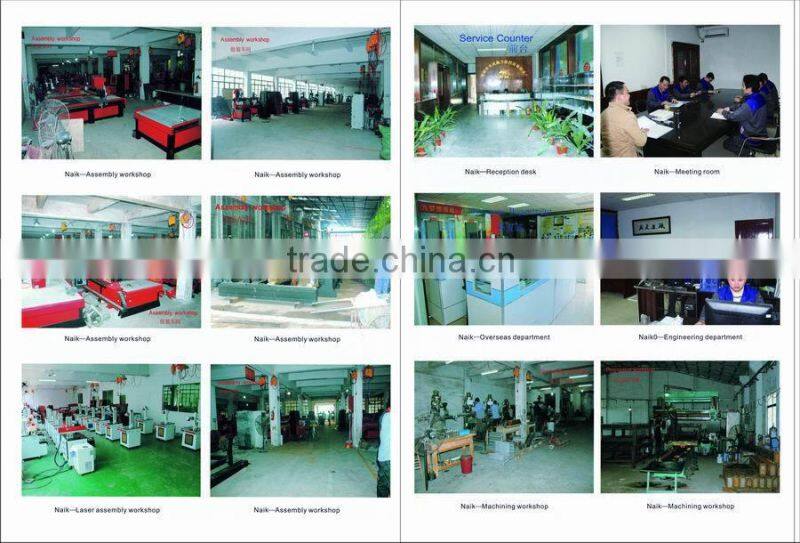

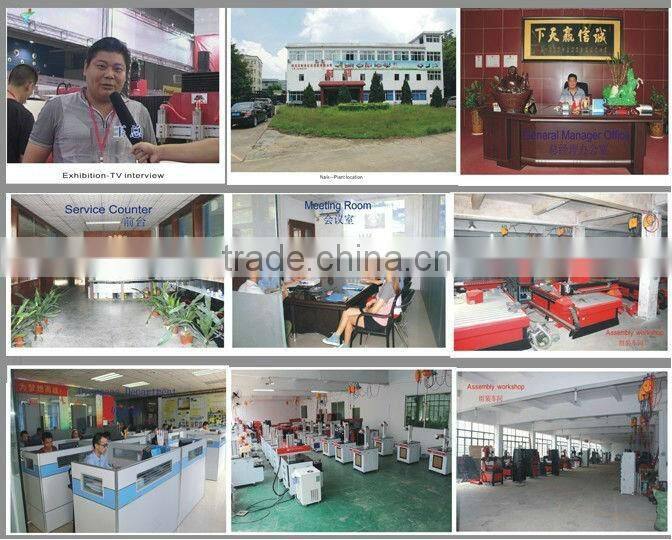

Company Profile
Shenzhen Tiancheng Xin Li CNC Equipment Co., Ltd. is a professional factory which is
specialized in developing and producing Naik brand of CNC engraving machines. We have 14 years production experience in the cnc router industrial .
We have devoted ourselves into research and development of carving CAD/CAM CNC
technology since our factory was built. At the same time, we have got great progress
in the aspect of precise engraving machine designing theory and technical skills, and
have realized industrialization of the computerized numerical control technology.
Company Information
Shipping Terms
1. EXW
2. FOB Shenzhen
3. CIF+ Destination port
Payment terms
1.T/T: 30%T/T in advance against the order confirmed and pay the balance 70% against goods ready.
2.Western Union: Total amount should be below than 5000 USD,and the bank handling fee should be responsible for you.
3.L/C: We would like to talk details with you if you really need L/C payment terms.
we are looking for the agents all overthe world, Pls join us ASAP!!!, More detailed information pls refer to our website:
If any more detailed information needed,pls feel free to contact me!
