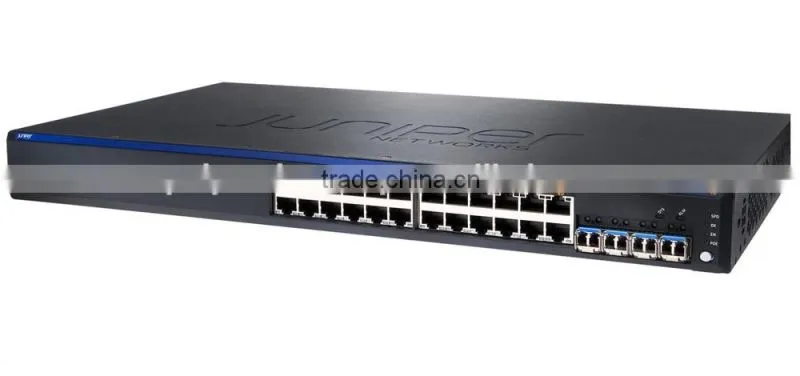

Juniper EX2200 Switches EX2200-24P-4G EX2200-24T-4G EX2200-48P-4G EX2200-48T-4G GE POE Switch
EX2200
For wiring closet and open office installations
EX2200 Switches are ideal for access-layer deployments in branch offices and campus networks, delivering performance usually associated with more expensive products.
Overview
EX2200 and EX2200-C Ethernet Switches are low power, low acoustic 1 U devices designed for wiring closets and open office installations. They are an economical solution for low density access business needs.
The EX2200 offers 24 or 48 10/100/1000BASE-T port models; the EX2200-C offers 12 ports. Both models are available with or without 802.3af Power over Ethernet (PoE) or 802.3at PoE+ for supporting networked devices.
Both devices are scalable and can be deployed with Juniper’s Virtual Chassis technology, connecting up to four EX2200 or EX2200-C Switches as a single device. The switches easily connect to the backbone through front panel Gigabit Ethernet uplink ports.
Specs
| EX2200 / EX2200-C | |
| Form Factor | Fixed platform Virtual Chassis configuration consisting of up to four switches |
| Dimensions (W x H x D) | EX2200: 17.4 x 1.7 x 10 in (44.1 x 4.4 x 25.4 cm) 1 rack unit EX2200-C: 10.6 x 1.7 x 9 in (26.9 x 4.4 x 22.8 cm) 1 rack unit |
| Backplane Speed | N/A |
| Data Rate | EX2200-24P/24T: 56 Gbps EX2200-48P/48T: 104 Gbps EX2200-C-12T/12P-2G: 28 Gbps |
| Throughput | EX2200-24P/24T: 42 Mpps (wire speed) EX2200-48P/48T: 77 Mpps (wire speed) EX2200-C-12T/12P-2G: 21 Mpps |
| 40GBASE QSFP + Port Densities | N/A |
| 100GBASE CFP Port Densities | N/A |
| Resiliency | EX2200: Integral power supply and fans; external power supply option EX2200-C: Fanless design improves MTBF by eliminating moving parts that can fail |
| Operating System | Junos |
| Traffic Monitoring | sFlow |
| QoS Queues / Port | 8 |
| MAC Addresses | 16,000 |
| Jumbo Frames | 9,216 Bytes |
| IPv4 Unicast / Multicast Routes | 6,500 / 1000 |
| IPv6 Unicast / Multicast Routes | N/A |
| Number of VLANs | 1,024 |
| ARP Entries | 2,000 |
| Warranty | EX2200: Enhanced limited lifetime hardware warranty EX2200-C: Enhanced limited lifetime hardware warranty |
Features
Field-proven Juniper technology: A carrier-class architecture, coupled with the Junos OS, enables EX Series Switches to provide carrier-class reliability for every application.
Security risk management integrates Unified Access Control to help EX Series Switches dynamically deliver network protection, guest access, and identity-based QoS.
Wire-speed performance at high 1GbE, 10GbE, 40GbE, and 100GbE port densities dramatically simplifies network topologies and operations.
Eight QoS queues per switch port ensure proper prioritization of voice, video, and multiple levels of data traffic, with room to converge other networks, such as building automation and video security systems.
Innovative, cost-effective switch design enables new architectures that reduce cost and complexity, while unified management and automation tools consolidate system monitoring.
-
Virtual Chassis and Virtual Chassis Fabric technologies on select models allow interconnected EX Series and QFX Series Switches to operate as a single, logical device, reducing operational expenses and simplifying management.
