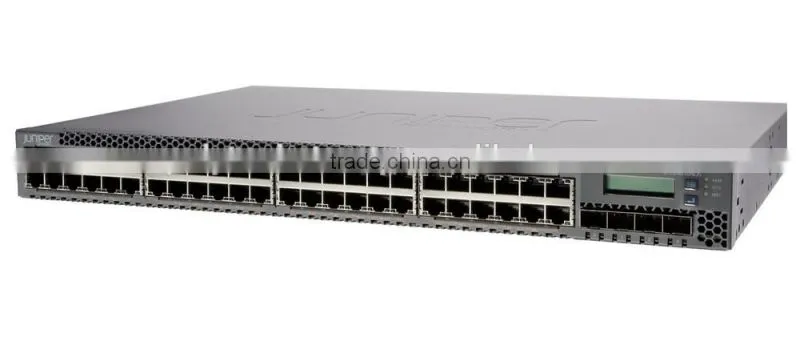

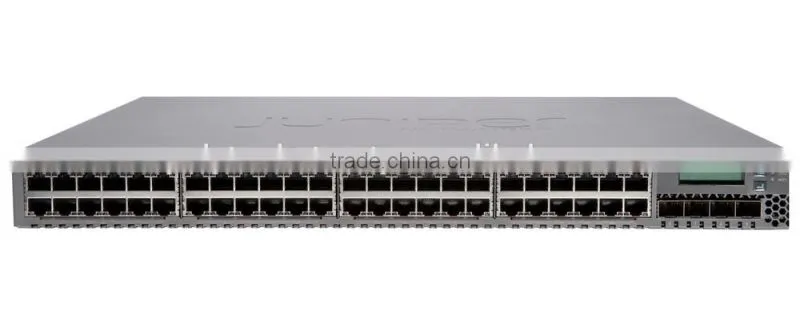

Juniper EX3300 Switches EX3300-24P EX3300-24T EX3300-24T-DC EX3300-48P EX3300-48T EX3300-48T-BF
EX3300
Support for converged data, voice, and video
The EX3300 Ethernet Switch is a compact, scalable solution for demanding converged enterprise access environments.
Overview
EX3300 Ethernet Switches are flexible, cost-effective enterprise access solutions for data center environments that support converged data, voice, and video. Models come with 24 or 48 10/100/1000BASE-T ports and four dual-mode Gigabit Ethernet (GbE)/10 GbE SFP/SFP+ uplink ports.
The EX3300 Switches support IEEE 802.3af Power over Ethernet (PoE) or 802.3at PoE+. Optimized for the data center, the switches offer front-to-back and back-to-front cooling options, and they can be configured with a DC power supply. Up to 10 EX3300 Switches can be interconnected and operated as a single device using Juniper’s Virtual Chassis technology, delivering a scalable, pay-as-you-grow solution for expanding network environments.
Specs
| EX3300 | |
| Form Factor | Fixed platform Virtual Chassis configuration consisting of up to 10 switches |
| Dimensions (W x H x D) | 17.4 x 1.7 x 12 in (44.1 x 4.3 x 31 cm) 1 rack unit |
| Backplane Speed | 40-80 Gbps |
| Data Rate | EX3300-24P/24T/24T-DC: 128 Gbps EX3300-48P/48T/48T-BF: 176 Gbps |
| Throughput | EX3300-24P/24T/24T-DC: 95 Mpps (wire speed) EX3300-48P/48T/48T-BF: 130 Mpps (wire speed) |
| 40GBASE QSFP + Port Densities | N/A |
| 100GBASE CFP Port Densities | N/A |
| Resiliency | Graceful Route Engine Failover (GRES) in Virtual Chassis configuration; external power supply option |
| Operating System | Junos |
| Traffic Monitoring | sFlow |
| QoS Queues / Port | 8 |
| MAC Addresses | 16,000 |
| Jumbo Frames | 9,216 Bytes |
| IPv4 Unicast / Multicast Routes | 8,000 / 0 |
| IPv6 Unicast / Multicast Routes | N/A |
| Number of VLANs | 4,096 |
| ARP Entries | 4,000 |
| Warranty | Enhanced limited lifetime hardware warranty |
Features
Field-proven Juniper technology: A carrier-class architecture, coupled with the Junos OS, enables EX Series Switches to provide carrier-class reliability for every application.
Security risk management integrates Unified Access Control to help EX Series Switches dynamically deliver network protection, guest access, and identity-based QoS.
Wire-speed performance at high 1GbE, 10GbE, 40GbE, and 100GbE port densities dramatically simplifies network topologies and operations.
Eight QoS queues per switch port ensure proper prioritization of voice, video, and multiple levels of data traffic, with room to converge other networks, such as building automation and video security systems.
Innovative, cost-effective switch design enables new architectures that reduce cost and complexity, while unified management and automation tools consolidate system monitoring.
Virtual Chassis and Virtual Chassis Fabric technologies on select models allow interconnected EX Series and QFX Series Switches to operate as a single, logical device, reducing operational expenses and simplifying management.
