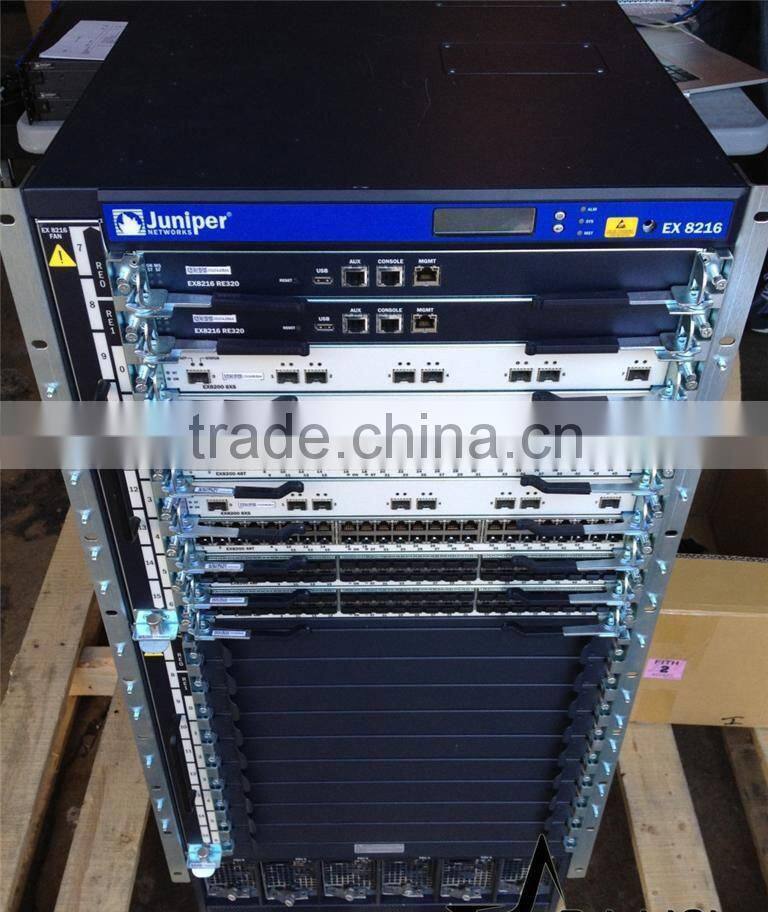

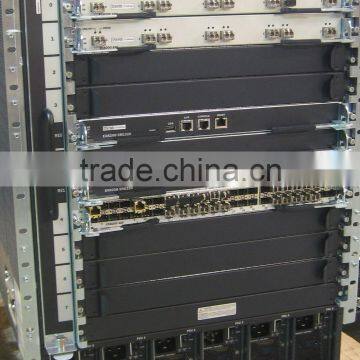

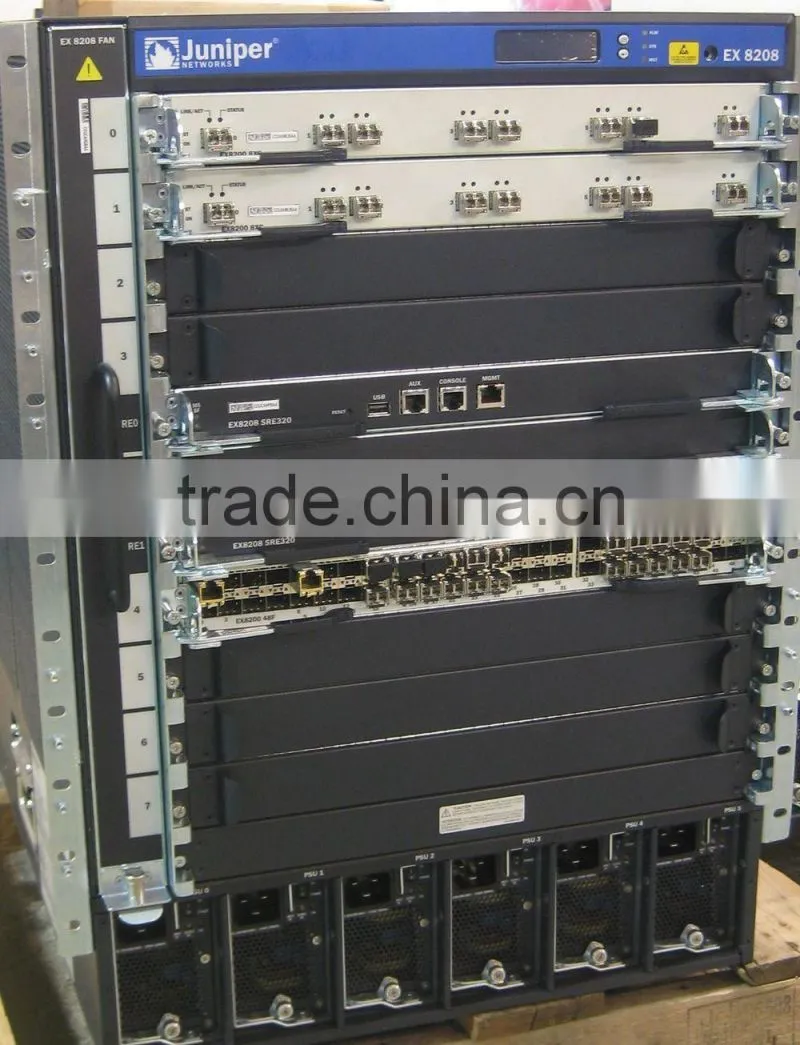

JUNIPER EX8208-SRE320 Switch and Routing Engine for EX8208, redundant
High availability EX8200 Ethernet Switch for data center and campus core environments
The EX8200 modular switches offer flexible platforms that deliver the port densities, scalability, and high availability required for today’s demanding data center and campus core environments.
Overview

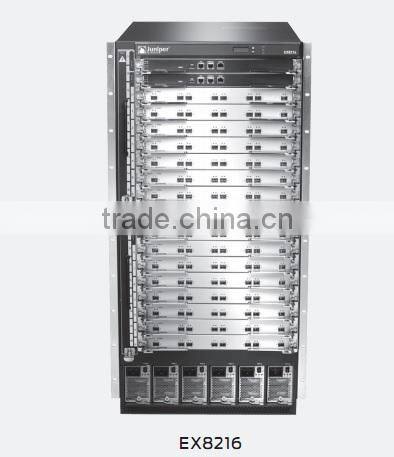

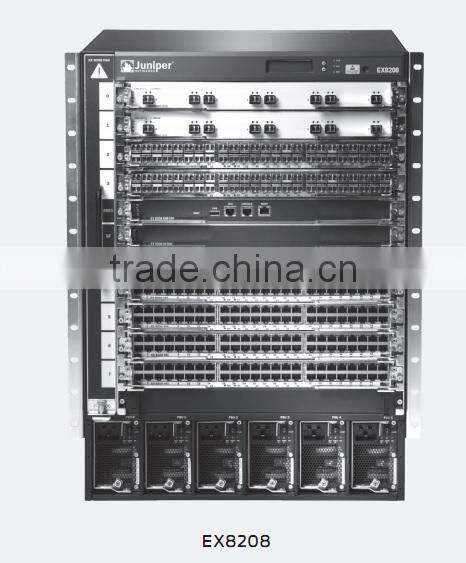

High-performance, highly available EX8200 modular switches are designed for data centers, campus aggregations, and core networks. The EX8208, an eight-slot 14 U chassis, delivers up to 320 Gbps per slot and wire-rate forwarding of 960 million packets per second (pps). The EX8216, a 16-slot 21 U chassis, delivers 1.92 billion pps.
The same line cards work in both EX8200 models, offering a variety of 10/100/1000BASE-T, 100BASE-FX/1000BASE-X, and 10GbE interfaces. An EX8208 can support 384 GbE or 64 10GbE ports at wire speed, or 320 10GbE ports in shared bandwidth applications. An EX8216 can support twice that number.
Juniper Virtual Chassis technology enables up to four interconnected EX8200 Switches to operate as a single device, using standards-based Ethernet link aggregation groups to create a network fabric for interconnecting access switches, routers, and service-layer devices in distributed campus and data center environments.

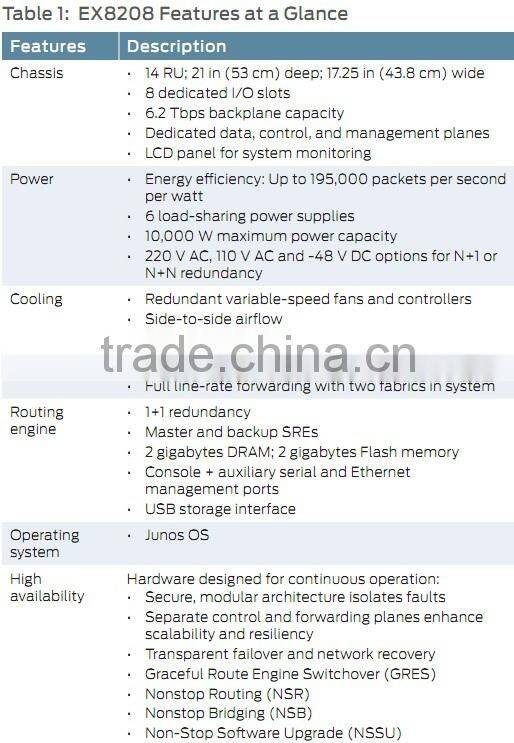

Specs
| EX8200 | |
| Form Factor | EX8208: Eight-slot modular chassis EX8216: 16-slot modular chassis Virtual Chassis configuration consisting of up to four switches |
| Dimensions (W x H x D) | EX8208: 17.25 x 24.25 x 21 in (43.82 x 61.6 x 53 cm) 14 rack units EX8216: 17.3 x 36.5 x 26.5 in (43.9 x 92.7 x 67.4 cm) 21 rack units |
| Backplane Speed | 320 Gbps (full duplex) per line card with current switch fabric 6.2 Tbps (EX8208) or 12.4 Tbps (EX8216) per chassis |
| Data Rate | EX8200-48T / EX8200-48T-ES: 48 Gbps EX8200-48F / EX8200-48F-ES: 48 Gbps EX8200-8XS / EX8200-8XS-ES: 80 Gbps EX8200-40XS / EX8200-40XS-ES: 80 Gbps EX8200-48PL / EX8200-48TL: 20 Gbps EX8200-2XS-40P / EX8200-2XS-40T: 40 Gbps |
| Throughput | 120 Mpps per line card (wire speed) 960 Mpps (EX8208) or 1.92 Bpps (EX8216) per system |
| 40GBASE QSFP + Port Densities | N/A |
| 100GBASE CFP Port Densities | N/A |
| Resiliency | 6 power supply bays for N+1 or N+N redundancy; field-replaceable fan trays; redundant Routing Engines and Switch Fabrics; GRES |
| Operating System | Junos |
| Traffic Monitoring | sFlow |
| QoS Queues / Port | 8 |
| MAC Addresses | 160,000 |
| Jumbo Frames | 9,216 Bytes |
| IPv4 Unicast / Multicast Routes | Standard: 500,000 / 100,000 ES models: 1 million / 100,000 |
| IPv6 Unicast / Multicast Routes | EX8208: 250,000 (500,000 with extra-scale line cards) / 100,000 (200,000 with extra-scale line cards) EX8216: 250,000 (500,000 with extra-scale line cards) / 100,000 (200,000 with extra-scale line cards) |
| Number of VLANs | 4,096 |
| ARP Entries | 100,000 |
| Warranty | Standard one-year warranty |
Features
Field-proven Juniper technology: A carrier-class architecture, coupled with the Junos OS, enables EX Series Switches to provide carrier-class reliability for every application.
Security risk management integrates Unified Access Control to help EX Series Switches dynamically deliver network protection, guest access, and identity-based QoS.
Wire-speed performance at high 1GbE, 10GbE, 40GbE, and 100GbE port densities dramatically simplifies network topologies and operations.
Eight QoS queues per switch port ensure proper prioritization of voice, video, and multiple levels of data traffic, with room to converge other networks, such as building automation and video security systems.
Innovative, cost-effective switch design enables new architectures that reduce cost and complexity, while unified management and automation tools consolidate system monitoring.
Virtual Chassis and Virtual Chassis Fabric technologies on select models allow interconnected EX Series and QFX Series Switches to operate as a single, logical device, reducing operational expenses and simplifying management.
