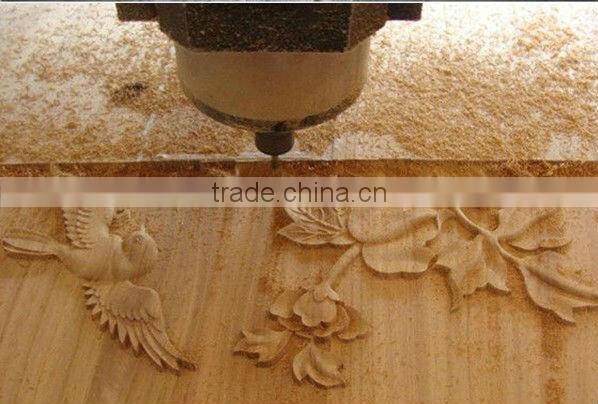

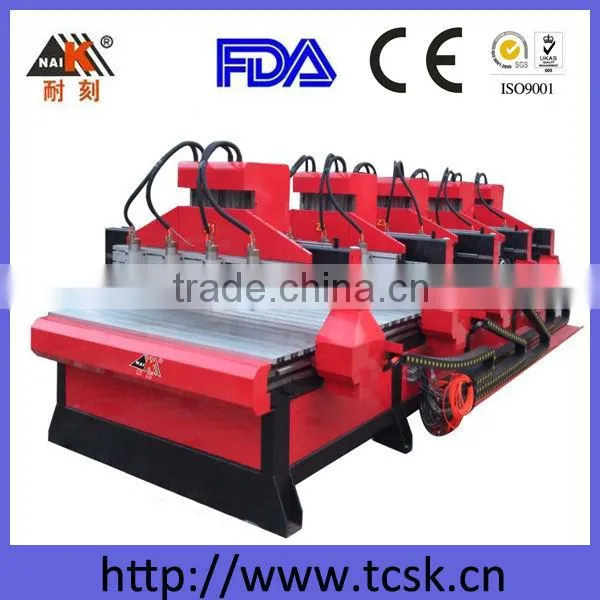

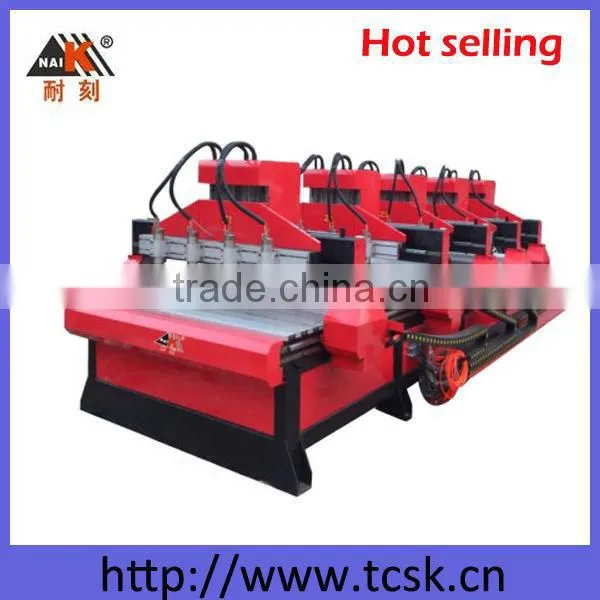

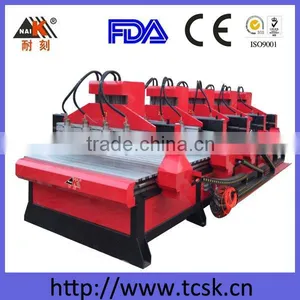

Heavy duty CNC Wood Routers Engravers

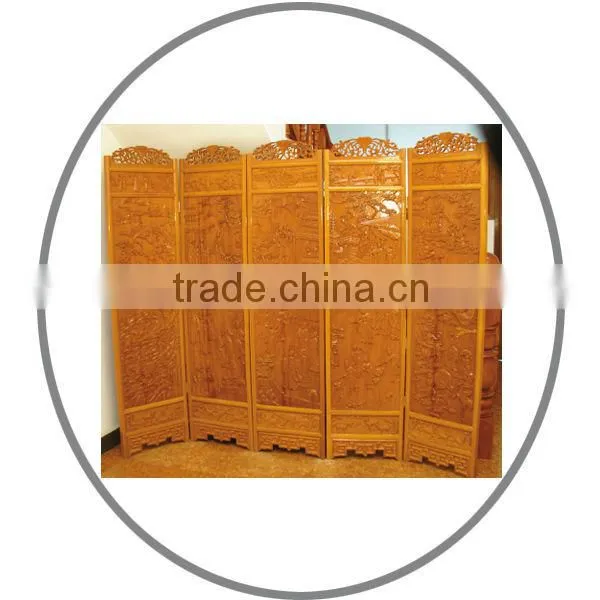

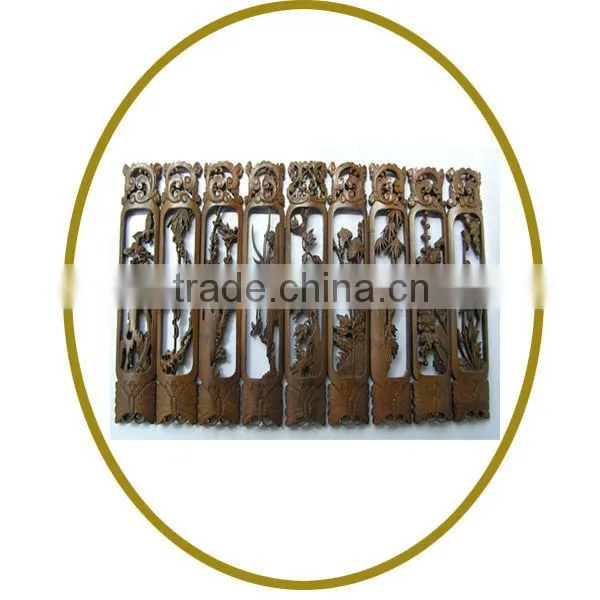

Application Materials of CNC Router
Foam, Styrofoam, EPS Foam, Wood, MDF, Solid wood, Hardwood, Artificial stone, Marble, Granite, Ceramic Tile, Tombstone, milestone, Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Slate, grindstone ,Jade, crystal, plexiglass, aluminum composite panel, aluminum block, copper and so on.
Specification of CNC Router
Model No |
20STC-2060-5L-20 |
Table Size |
1700mm×7000mm |
Effective Engraving Size |
1700mm×7000mm |
Z Axis Travelling |
180mm |
Feeding Height |
200mm |
Body Frame/Structure |
T-Steel(Steel structure 8mm Steel Pine) |
Table Material |
Thickness Aluminum |
Portal Side Wall Configuration |
Cast Iron |
Z Axis Movement Hardware Configuration |
Cast Aluminum |
Transmission Configuration |
Rack Gear(Germany Slanting Rack) |
Rail Configuration |
Ball screw transmiss |
Z Axis Screw |
Taiwai PMI 25 Screw C4 Grade,Double nut |
Positioning Accuracy |
±0.15/300mm |
Spindle Rotating Speed |
0-24000(rmp/min) |
Processing Speed |
0-30000mm/min |
X Axis Motor Drive |
Leisai 110(Shenzhen) |
Y Axis Motor Drive |
Leisai110(Shenzhen)(Dual Drive Double Motor) |
Z Axis Motor Drive |
Leisai110(Shenzhen) |
Movement Control |
NCstudio Control System |
Carving Instruction |
G Code*,U00*,mmg*,nc |
Resolution |
0.0025/Pulse |
Collet |
3.175mm,4mm,6mm,8mm, 12.7mm |
Spindle Rotating Power |
2.2KW Bearing Water Cooling Motor(20 pcs) |
Conventor |
Best,Independent conventor 20cs |
Power |
220V/380v50HZ±10(Internal Switch Power) |
Weight |
Appro45000KGS |
Electric Box Configuration |
Computer capinet |
Movement Method |
Gantry Moving |
Shipping Terms
1,EXW
2,FOB
3,CIF
4,If you need us to book shipping cargo or not and etc,pls notice us,we are more pleased to do so.
Why choose us
1.One year equipment warranty and maintenance for lifetime.
2.Free installation and test before shipping and free training for operators
3.Advice for the solutions best for customers requirements.
4.Free training and sample provided
5.Meet CE,FDA,ISO9001 standards
If you want to know more details,pls contact me!
