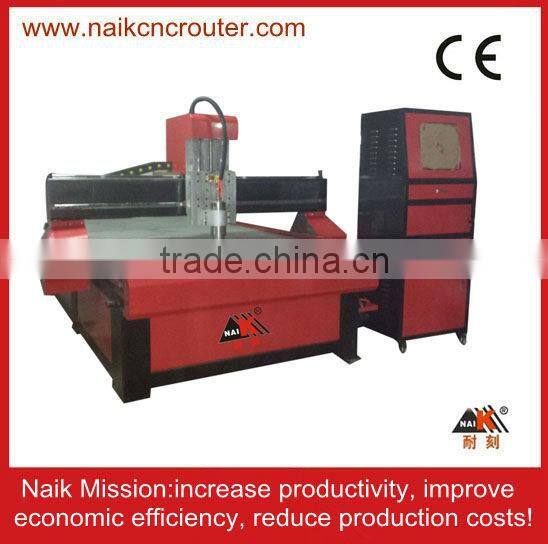

CNC acrylic cutting machine 4STC-1325B
1.1 Features of CNC acrylic cutting machine
- Heavy duty steel frame, no distortion , no shake While working at high speed, the machined surface is smooth, and the tool is not easy to break; The full-weld and VSR process is used to make sure the structure stable, low inertia and no distortion during high-speed working;

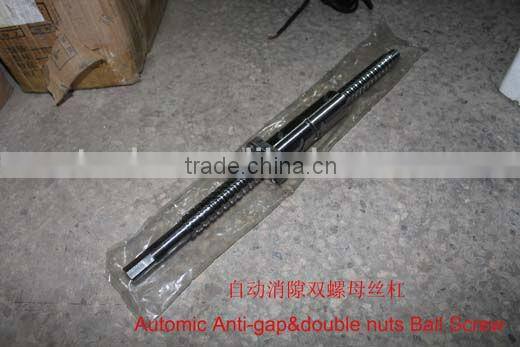

- Assembled with original HIWIN linear square guide rail& dual -nut anti-gap rod ball screw, and Germany made slanting rack, to ensure high accuracy, low noise, and long life;
- Adopt high-speed spindle with constant torque, big bearing.Strong Cutting capacity.
- Original NcStudio OS, with friendly Ul, with simple operating software, it's convenient and easy to learn.
1.2 specification of CNC acrylic cutting machine
Machine Model |
4STC-1325B |
Platform size |
1380x2900mm |
Working range |
1300x2500mm |
Z-axis range |
180mm |
Max Height of material |
200mm |
Fuselage Structure |
8mm thick heavy-duty tubular steel frame |
Surface material |
Thicken aluminum |
Adsorption method |
T-slot for clamp fixture (Vaccum table for options) |
X,Y Transmission |
Germany Slanting rack |
Z-axis Transmission |
Taiwan HIWIN 25 Ball Screw |
Rail configuration |
HIWIN 25 Square guide rail |
Spindle speed |
0-24000(r/min) |
Y-axis dual drive |
Stepper Motor LeiSai 86 |
X,Y axis drive |
Stepper Motor LeiSai 86 |
Control System |
NcStudion Control System |
Code Formats |
G code,U00,mmg, nc |
Idle speed |
0-20000mm/Minute |
Working speed |
0-15000mm/Minuter |
Resolution |
0.00625/Minute |
Positioning accuracy |
±0.15/300mm |
Spindle power |
3kw(other available) |
Cooling System |
Water cooling |
Weight |
1500KGS |
Power |
220V/380V 50HZ/60HZ(Internal Power) |
Electric Box |
Electric Box |
Mode of motion |
Grantry moving |
1.3 Parts of CNC acrylic cutting machine
|
We use the original HIWIN square guide rail as our transmision part. it can make the machine working more accuracy and make the gantry move more smoothly. |
|

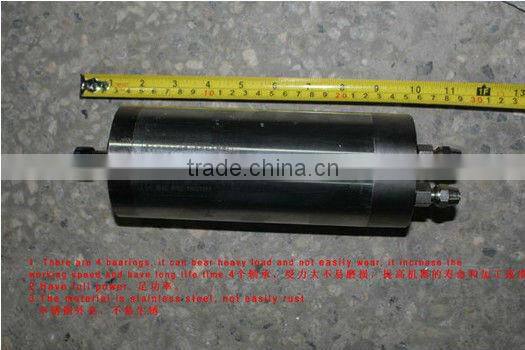

the 4-bearing spindle is more bigger and more longer than the normal spindle , which means it can provide you more power for work and it have water cooling system inside |
|

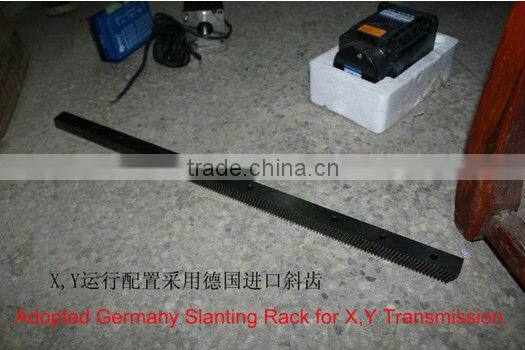

we use the Germany Slanting Rack for X, Y Transmission, which means this can improve the accuracy machine |
|

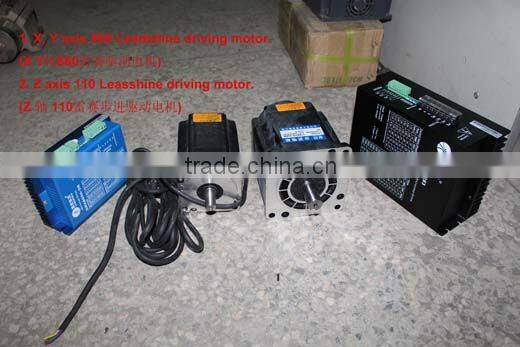

the stepper is good quality and powerful, so it can make the gantry reflect more faster and improve the working efficiency |
|

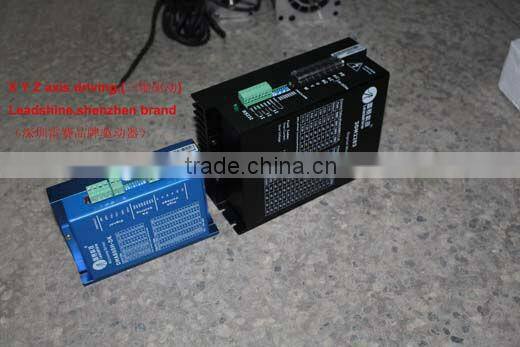

the leadshine is a very famous brand in China,it can make the motor controlling more easy |
2.1 the application of CNC acrylic cutting machine
Embossing, debossing, cutting, 3D sheet processing, expensive redwood, aluminium, plastic sheets etc.
2.2 the sample of CNC acrylic cutting machine
3.1 the qulification of CNC acrylic cutting machine
3.2 Naik factory & office show
3.3 Packing of CNC acrylic cutting machine
You can see from the picture that we will provide you the strong wooden package to protect the machine
3.4 Suggetion to my customer
If your work are connecting to cut acrylic, this is the very one machine that suit your demands .The CNC acrylic cutting machine can make your product categories more various, make your design more flexible and improve the woking efficiency, lower the cost of labor and help you occupy more share of the market. The cnc foam cutting machine can bring you more profit and you can use it to establish your own brand very quickly. We are not only to provide you a machine but also to provide you a solution to the problem which you are facing at.
If you are not satisfy with the cnc route for its function which can only be used for plane material. we have solution for this problem, we will install the dust collector, the water tank, the water cooling system, the rotary axis to make the 3d carving to be a multi-function 4 axis 3D cnc router.
If you are a businessman who are searching for a way to develop the machine market of your country. The very cheap cnc router would be your best choice for you to open up your market. The very cheap cnc router is not expensive but it have high accracy, 3KW powerful high-speed spindle, heavy-duty steel frame, HIWIN ballscrew, High accuracy square guide rail and etc, it have such beatiful shape and bright color (If you don't satisfy the shape and the color we also accept the customized service). I believe our cooperation will make your business more big and more success !
3.5 what kinds of service we can provide to you ?
1. One year equipment warranty and maintenance for lifetime.
2. Free installation and test before shipping and free training for operators
3. Advice for the solutions best for customers requirements.
4. provide you thousands of embossment design for free
5. we can send our engineer to your place to help you with the machine.
4.1 Payment terms of CNC acrylic cutting machine
--T/T : 30% T/T in advance and pay the balance 70% when goods are ready before shipping.
--Western Union: Total amount is better to be below USD$5000
--L/C: We accept payment by L/C.
4.2 Custom Services of CNC acrylic cutting machine
1.One year equipment warranty and maintenance for lifetime.
2.Free installation and test before shipping and free training for operators
3.Meet CE,FDA,ISO9001 standards
Now we are seeking distributors worldwide. If you are interested, please feel free to contact us.
