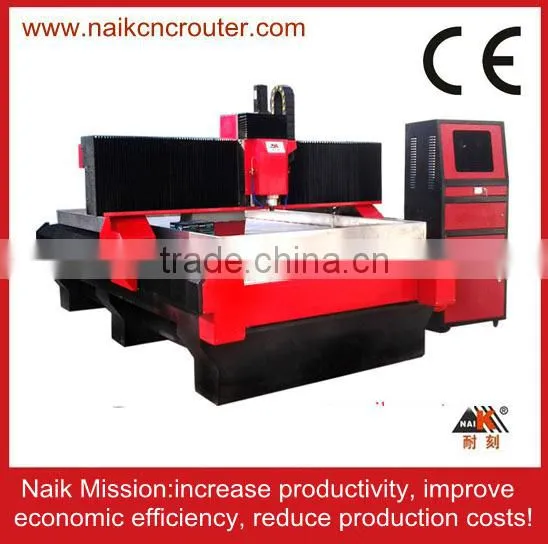

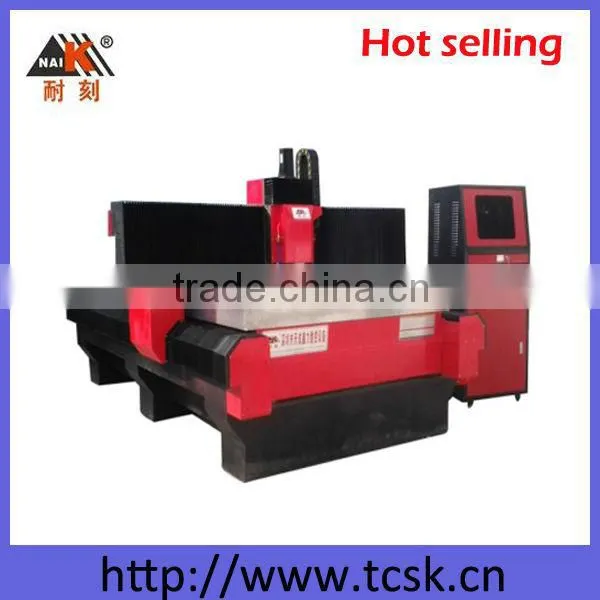

Professional Acrylic Cheap CNC Router Machine

Professional Acrylic Cheap CNC Router Machine thumbnail-1
Professional Acrylic Cheap CNC Router Machine photo-1
US$ 5,000 - 25,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Shenzhen Tiancheng Xin Li CNC Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not CNC
Place of Origin Guangdong, China
Brand Name NAIK
Model Number TC-1325
Voltage 110/220/380V 50±10HZ
Power(W) 4.5kw
Dimension(L*W*H) 1300*2500*180
Weight 2500KGS
Certification CE,FDA,ISO9001
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas

Professional Acrylic cheap CNC Router Machine



Product Description

1. T-gantry, with high precision linear guide rails and double nuts ball screw for transmission.

2. Cutting size: 1300*2500 mm.

3. Control system: NcStudio control system, easy to learn and convenient to use.

4. Color is optional, Rotary axis, vacuum table and dust collector can be added as your demand.

5. 8mm thick heavy-duty tubular steel main body to ensure the stability while working at high speed.



Application Materials

Plastic Plate, PVC sheet, Artificial stone, Marble, Granite, Foam, Styrofoam, EPS Foam, Wood, MDF, Solid wood, Hardwood, Ceramic Tile, Tombstone, milestone, Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Slate, Grindstone, Jade, Crystal, Plexiglass, Aluminum sheet, Copper sheet etc.



Application Industries

Suitable for Furniture Industry, Moulding Industry, Craft Industry, Stone processing factories, Advertising Industry etc.





Guarantee & After-sales service:

 Guarantee for one year

 24 hour technical support by email or calling

 User friendly English manual for machine using and maintenance



Professional Acrylic cheap CNC router machine


Technical Parameter



Model No.

TC-1325

Table Size

1380mm×2900mm

Effective Working Area

1300mm×2500mm

Z Axis Travelling

180mm

Feeding Height

200mm

Body Frame/Structure

8mm Heavy-duty Steel

Table

Aluminum alloy, T-slot

X,Y Transmission

Taiwan HIWIN 3210 dual-nut ball screw

Z Transmission

Taiwan HIWIN 2510 dual-nut ball screw

Rail Configuration

Taiwan HIWIN 25 Linear square guide rails

Positioning Accuracy

±0.05/300mm

Spindle Rotating Speed

0-20000rpm

Spindle power

4.5KW(3.0,5.5,6kw for option)

Y Axis Drive Motor

France Schneider Servo Motor(Double Motor)

X,Z Axis Drive Motor

France Schneider Servo Motor

Movement Control

NCSTUDIO Control System

Carving Instruction

G code*,U00*,mmg*,nc

Resolution

0.00625/pulse

Collet

3.175mm,4mm,6mm,8mm,10mm,12.7mm

Cooling system

Water pump

Power

380V,50HZ±10(Internal Switch Power)

Movement Pattern

Gantry Moving



Product details with pictures:

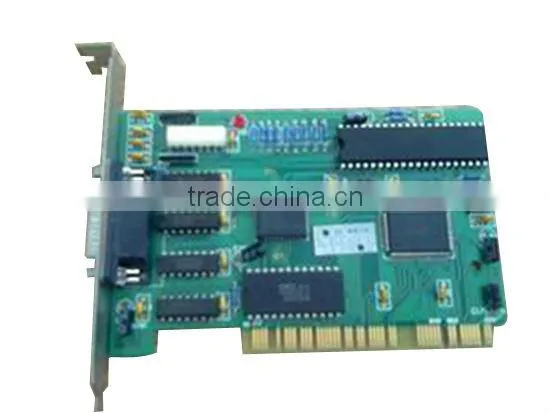

Motion Control System
Professional Acrylic cheap CNC router machine The PCIMC control card is designed by Weihong technology company of Shanghai, specialized for NC STUDIO Motion Control System. The card will be inserted into the PCI card slot of the computer, and the operation of the CNC engraver is controled by the control card. We have PCIMC-3D/6B/ 6A etc. for optional
Driving Motor
Professional Acrylic cheap CNC router machine

The Driving Motor is the executive component of the automatic control system, it works with the simple push of a button. The motor we use for our CNC engraver can be steping motor/ Servo motor, and the brand is optional.
AC Servo motor is more popular for its advantages on performance and accuracy, but more costly. The brand can be Schneider/ Yaskawa etc. With different prices.
Frequency Converter
Professional Acrylic cheap CNC router machine The frequency converter is an equipment to control the AC motor by adjusting the frequency of the motor power. So it can offer actual voltage to the motor as per the practical need of motor, to make sure of energy conservation and speed regulation. Besides, the converter can protect the motor from over current, over voltage, overloaded, etc. Each spindle motor is connected with a independent frequency converter, it's more safe and stable.
Main Spindle
Professional Acrylic cheap CNC router machine

There are two kinds of spindle: Water cooling and Air cooling spindles. And with different
power options: 1.5KW/ 2.2KW/ 3.0KW/ 4.5KW/5.5KW/6KW/7.5KW etc. The output voltage and frequency can be adjusted timely by a frequency converter. Advantage: work with high frequency, stable, low noise, fast heat dissipation, and long operating life.
Guide rail and sliding block
Professional Acrylic cheap CNC router machine

We use Linear square guide rails offered by HIWIN of Taiwan. The coefficient of rolling friction
is small and positioning accuracy is much higher than sliding friction. The accuracy can be at μm level. It can work with high speed and low power dissipation, and can easily be assembled and replaced.

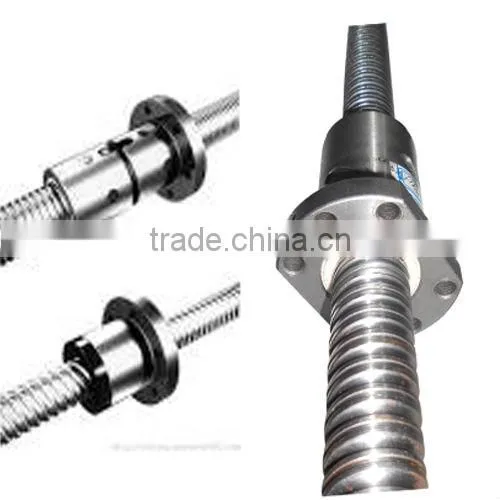

Dual screw-nut anti-gap rod
Professional Acrylic cheap CNC router machine The ball screw is an element to change the movements of the bearing from sliding to rolling. There are many roll balls between the screw shaft and the screw nut, and the balls rolling fast when the machine working. For the coefficient of rolling friction is smaller, the positioning accuracy is much higher.


 All the specifications can be customized as requested!

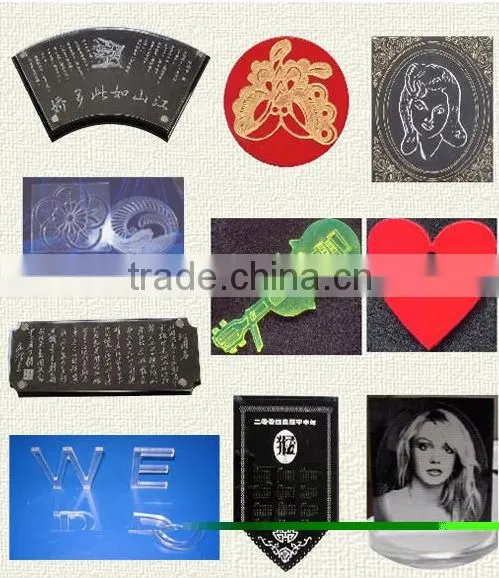

Pictures of sample:

 Professional Acrylic cheap CNC router machine



 Professional Acrylic cheap CNC router machine



Company Certificates

Professional Acrylic cheap CNC router machine

 Professional Acrylic cheap CNC router machine



Packing

Professional Acrylic cheap CNC router machine



Pictures of our company

Professional Acrylic cheap CNC router machine



We are professional manufacturer of all kinds of CNC engraving machines, suitable for various of materials, such as: wood, stone, jade, acrylic, metal, ceramics, etc.

And we offer all kinds of CNC parts.

To know more about our products, please feel free to contact us !
