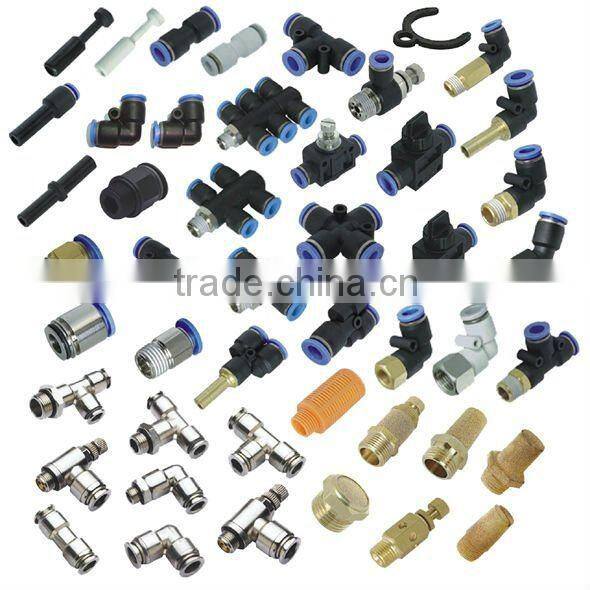

Metric one touch style TPC6-02 straight male tube pneumatic fitting

Specifications

TPC6-02 one touch pneumatic fitting
2.Tube Size:in Inch,metric tube
3.NPT,BSP,Metric straight male
Pneumatic fitting,plastic

1.Metric one touch style pneumatic fitting
2.Size:in Inch,metric tube
3.NPT,BSP,Metric straight male

4.Material : Nylon ,plastic

5.Model:Pneumatic TPC6-02
Pneumatic fitting,plastic ,quick pneumatic fitting

Order  code : Pneumatic fitting-Order code :TPC6-02
"6 " means the tube size 6mm diameter ,02 means the thread
size 1/4" BSPT thread .

NPT        – National (American) Pipe Tapered Thread

BSPT (R) – British Standard Pipe Tapered Thread

BSPP (G) – British Standard Pipe Parallel Thread

Both the tube size and thread size can be changed.
 The tube size range can be 2.5mm -16mm . Or from 1/10 inch
to 3/4 inch .
 The thread is from M8 to 1/2" BSPT (NPT )thread .
 Normally the BSP thread fittings have a O-ring on the send
of the thread to improve the seal .
Also can be NPT thread , BSP thread . Can be choosed by
customers .
This is a kind of the normal penumatic fitting. It's made
of plastic and brass .
The working pressure is from 0-o.8Mpa , Max 1.3Mpa
Can be used in the food industry with high pressure aie
push systerm , printing systerm

Media	Air or Vacuum
Operating Pressure	0 ~ 1.0 MPa
Negative Pressure	-750mmHg
Pressure Proof	1.5 MPa
Operating Temperature Range	5 ~ 60°C
The Material of Tube	Polyurethane or Nylon



The Outer Diameter of Tube				Thread Size
Metric Size		Inch Size
Code	Dia. (mm)	Code	Dia. (inch)	R (BSPT)	G (BSP)	NPT
4	4	5/32	5/32	M5X0.8P	G01: G1/8	N01: 1/8”NPT
6	6	3/16	3/16	M6X1.0P	G02: G1/4	N02: 1/4”NPT
8	8	1/4	1/4	01: R1/8	G03: G3/8	N03: 3/8”NPT
10	10	5/16	5/16	02: R1/4	G04: G1/2	N04: 1/2”NPT
12	12	3/8	3/8	03: R3/8
16	16	1/2	1/2	04: R1/2
