AMF Series Electro-magnetic Solenoid Pulse Valve

Name: AMF Series Electro-magnetic Solenoid Pulse Valve
Brand: FESCOLO
SKU: 119165295

US$ 9 - 90 MOQ: 20 Pieces

Key Specifications

Standard or Nonstandard:

Standard

Structure:

Diaphragm

Pressure:

Low Pressure

Ningbo Fescolo Pneumatics Manufacturer

Payment & Shipping

Payment Methods:

Port of Shipment:

All of china port

Delivery Detail:

Delivery time depends on order quantity.

Standard or Nonstandard Standard

Structure Diaphragm

Pressure Low Pressure

Power Solenoid

Material Alloy

Temperature of Media Medium Temperature

Media Gas

Port Size 1-3 Inch

Place of Origin Zhejiang, China

Model Number AMYF-76.

Brand Name FESCOLO

Specifications

1.AMYF-76. solenoid pulse valve
2.Available from 1" to 3"
3.High Flow,electromagnetic power
4.CE certificate,good price

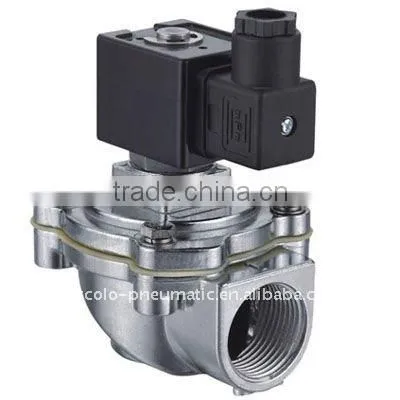

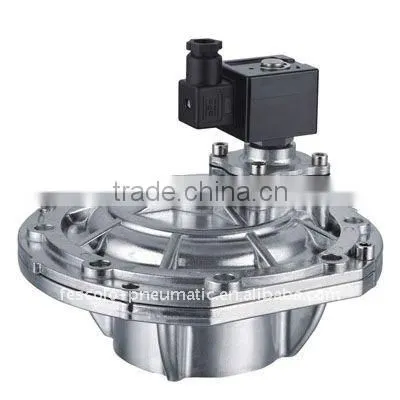

AMF Series Solenoid Pulse Valve

AMYF-76

1.Electromagnetic pulse valve is controlled through electric signal control valve body.

2.DMF Series Embedded Electro-magnetic Pulse Valve

3.DMF Series Right-angle Electro-magnetic Pulse Valve Thread type

4.DMF series Explosion-proof Electro-magnetic Pulse Valve

5.QMF Series Gas Control Electro-magnetic Pulse Valve

6.MCF Series Electro-magnetic Pulse Valve

7.AMF Series Electro-magnetic Pulse Valve

8.YMF Series Embedded Electro-magnetic Pulse Valve

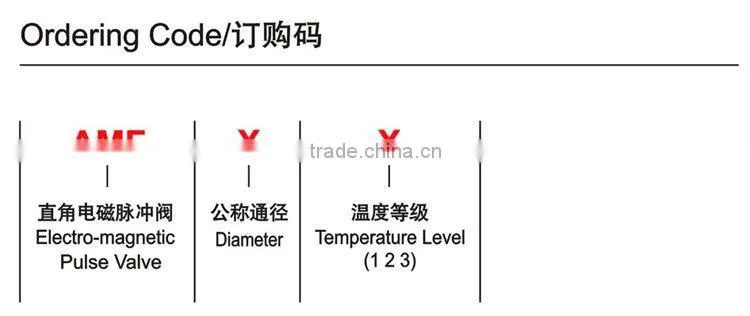

Order code :

Valve Solenoid Pulse Parameter:

Actuating Pressure	0.2~0.6Mpa
Actuating Medium	clean air
Temperature	High:230°C ,Medium:150°C, low:80°C ; >-25°C
Voltage	DC24V,AC220V/50HZ,AC110V
Current	0.8A ;0.46;0.23
Operating Environment	1,Temperature: -25°C~80°C~150°C~230°C 2, Relative air humidity not greater than 85%
Service Life of Membrane	One million times
Service Life of Electromagnetic Pulse Valve	3years in the condition of standard installation, proper use and reasonable maintenance
