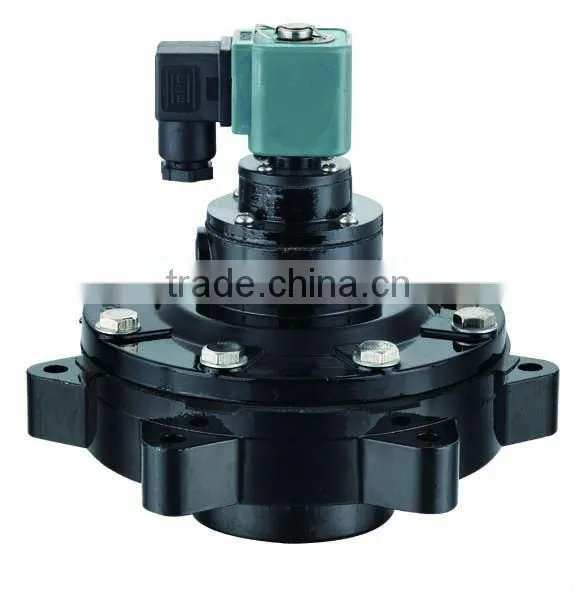

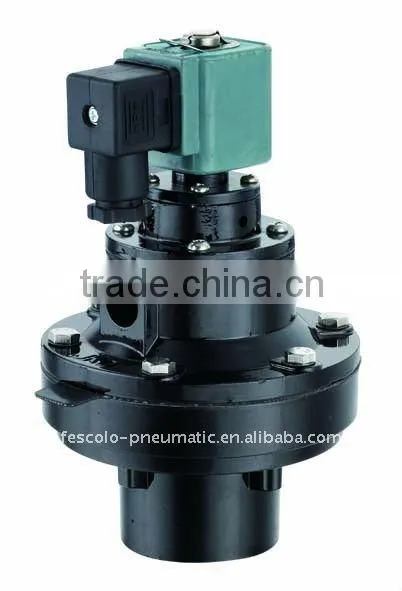

DMF Series Electromagnetic Embedded Pulse Valve

Name: DMF Series Electromagnetic Embedded Pulse Valve
Brand: FESCOLO
SKU: 119165263
Availability: InStock

US$ 9 - 90 MOQ: 20 Pieces

Key Specifications

Standard or Nonstandard:

Standard

Structure:

Diaphragm

Pressure:

Low Pressure

Ningbo Fescolo Pneumatics Manufacturer

Payment & Shipping

Payment Methods:

Port of Shipment:

All of china port

Delivery Detail:

Delivery time depends on order quantity.

Standard or Nonstandard Standard

Structure Diaphragm

Pressure Low Pressure

Power Solenoid

Material Alloy

Temperature of Media Medium Temperature

Media Gas

Port Size 1-3 Inch

Place of Origin Zhejiang, China

Model Number DMF-Y-50S

Brand Name FESCOLO

Specifications

1.Embedded pulse valve
2.Available from 1" to 3"
3.High Flow,electromagnetic power
4.CE certificate
5.Long life,good price

Embedded pulse valve

1.Electromagnetic pulse valve is controlled through electric signal control valve body.

2.DMF Series Embedded Electro-magnetic Pulse Valve

3.DMF Series Right-angle Electro-magnetic Pulse Valve Thread type

4.DMFseries Explosion-proof Electro-magnetic Pulse Valve

5.QMFSeries Gas Control Electro-magnetic Pulse Valve

6. MCFSeries Electro-magnetic Pulse Valve

7.AMF Series Electro-magnetic Pulse Valve

8.YMF Series Embedded Electro-magnetic Pulse Valve

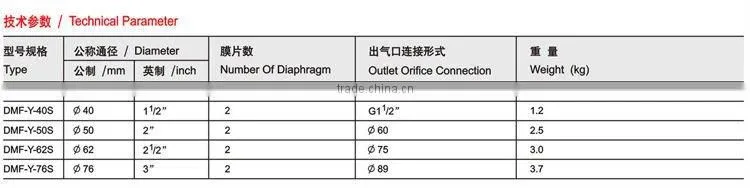

Order code :

Actuating Pressure	0.2~0.6Mpa
Actuating Medium	clean air
Temperature	High:230°C ,Medium:150°C, low:80°C ; >-25°C
Voltage	DC24V,AC220V/50HZ,AC110V
Current	0.8A ;0.46;0.23
Operating Environment	1,Temperature: -25°C~80°C~150°C~230°C 2, Relative air humidity not greater than 85%
Service Life of Membrane	One million times
Service Life of Electromagnetic Pulse Valve	3years in the condition of standard installation, proper use and reasonable maintenance
