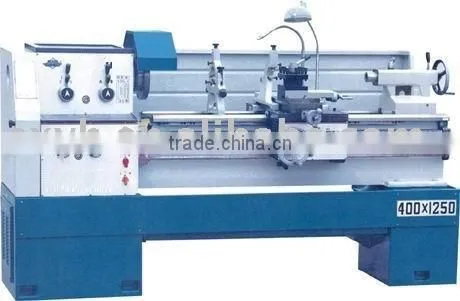

GAP BED LATHE HC6240

Name: GAP BED LATHE HC6240
Brand: YuanHang
SKU: 119155409
Availability: InStock

US$ 1,000 - 1,001 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Turning Center

CNC or Not:

Normal

Shaanxi Yuan Hang Machinery Equipment Import & Export Corp., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Turning Center

CNC or Not Normal

Place of Origin Shaanxi, China

Brand Name YuanHang

Model Number HC6240

Automatic Grade Automatic

Specifications

1.CE,standard
2.No.1 quality in the market
3.High quality to price ratio
4.spare parts support

	HC6240
	Max.distance of between centers	1000mm 1250mm 1500mm
	Height of centers	200mm
	Max.swing over bed	φ400mm
	Max.swing over tool-post	φ220mm
	Max.swing over gap	φ585mm
	Max.bar stock	φ50mm
/	Metric thread number/pitches range	30/0.45-20mm
/	withworth thread number/pitches range	35/80-1 3/4t.p.i
	Bore of spindle	φ52mm
	range of spindle spedds	19-1700rpm
	Taper of bore in spindle center sleeve	morse no.6
/	range of spedds of per revolution of spindle cross/longitudinal	0.02-1.95mm/0.04-3.91mm
	Max.travel of top tool-post	130mm
/	Max.travel of cross tool-post longitudinal/cross	900/255mm 1400/255mm
	Max.size of tool shank section	20×25mm
	rotating angle range of tool-post	±45°
	Max.travel of tailstock center sleeve	120mm
	bore taper of tailstock center sleeve	Morse no.4
	Power of main motor	4/5.5kw
	Power of cool pump	90w
	Deilvery of cool pump	25L/min
	overall dimensions(l×w×h)mm	242110531463 292110531463
	packing size(l×w×h)mm	252011001730 302011001730
/	weight net/gross kg	1800/2200 1900/2360
