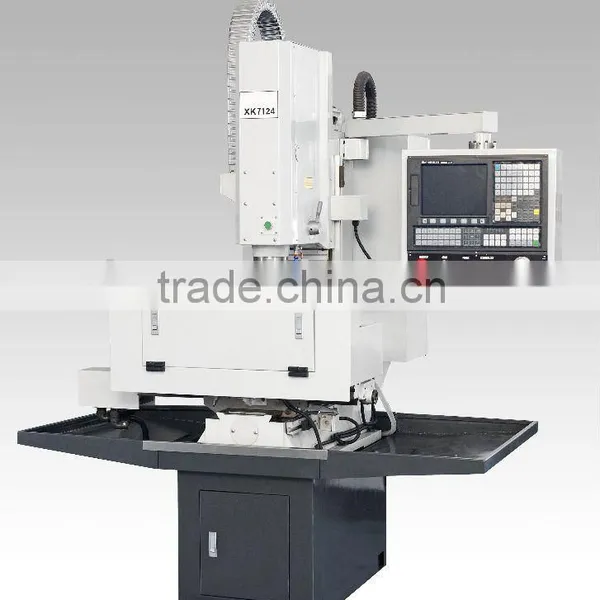

Help CenterHXK7124B CNC Milling Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Horizontal
CNC or Not
CNC
Place of Origin
Shaanxi, China
Brand Name
Yuanhang
Model Number
HXK7124B
Specifications
1.CE,standard2.No.1 quality in the market
3.High quality to price ratio
4.spare parts support
4 PCS tool stations on worktable with high efficiency. It can finish all process of surface machining, hole machining and tapping by clamping workpiece only once.
| Model and specification | XK7124B | ||
| Size of worktable(LxH) | 800×240mm(900×240mm) | ||
| T slot(Width x Qty x Spaces) | 16mm×3×60mm | ||
| Max. loading weight on worktable | 60Kg | ||
| X/Y/Z-Axis travel | Table 800 x 240mm | Column980mm | 430×290×400mm |
| Column1080mm | 430×290×500mm | ||
| Table 900 x 240mm | Column980mm | 530×290×400mm | |
| Column1080mm | 530×290×500mm | ||
| Distance between spindle nose and table | Column980mm | 50-450mm | |
| Column1080mm | 50-550mm | ||
| Distance between spindle center and column | 297mm | ||
| Spindle taper | BT30 | ||
| Max.spindle speed range | 5000r/min | ||
| Spindle motor power | 2.2/3.7Kw | ||
| Feeding Motor power:X/Y/Z axis | 1Kw/1Kw/1Kw | ||
| Min.set unit:X/Y/Z axis | 6m/min | ||
| Feeding speed | 0-2000mm/min | ||
| Rapid feeding speed:X/Y/Z axis | 0.01mm | ||
| Tool spec.max.dia | φ60×175mm | ||
| Tool magazine | 4 Stations | ||
| Tool loosing and clamping way | Clamping by disk spring and tool-released pneumatically | ||
| Max loading weight of tool | 3.5Kg | ||
| Net weight | 760Kg | ||
| Overall size | 1640×1205×1950mm(2050mm) | ||
