Help Center57-3C Knee-Type Milling Machine
Related Products
Specifications
1.CE,standard2.No.1 quality in the market
3.High quality to price ratio
4.spare parts support

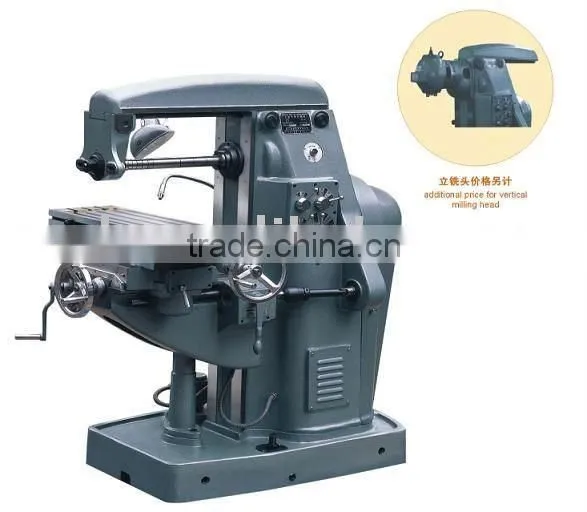

57-3C Milling Machine is one kind middle and small type metal cutting milling machine, and is suitable for the disk milling cutter, the angular cutter, the form cutter and the end cutter, can the milling plane, the incline, the perpendicular plane and the trench, and so on, after the vertical milling head is equipped, this machine may do the multi-direction milling work. If the rotary table is equipped in this machine, it may do the milling ring-like trench and the circular arc curve. In addition, if this machine is equipped with dividing head, it may make the modulus m=3mm following straight tooth, the helical tooth, the bevel gear milling work, and so on.
Worktable Size |
mm |
240×810 |
|
T Slot× Width × Slot Distance |
mm |
3×14×54 |
|
Worktable |
Longitudinal travel X |
mm |
480 |
Cross travel Y |
mm |
165 |
|
Vertical travel Z |
mm |
300 |
|
Max. Rotary Angle of Worktable |
|
±45º |
|
Milling Arbor Diameter |
mm |
φ22, φ27 |
|
Distance Spindle Center to Table |
mm |
60-360 |
|
Spindle Taper |
|
MT3 or 7: 24 30# |
|
Spindle Speed Series |
|
6 |
|
Spindle speed range |
r/min |
31~570(Horizontal )/1250(Vertical) |
|
Distance from Spindle Center to Cantilever |
mm |
160 |
|
Table Feed Motor Series |
|
6 |
|
Worktable Feeding |
Longitudinal X |
mm/min |
7.3~111.9 |
Cross Y |
mm/min |
14.9~226.3 |
|
Vertical Z |
mm/min |
6~90.4 |
|
Main Motor Power |
Kw |
1.5 |
|
Main Motor Speed |
r/min |
1430 |
|
Cooling Pump Motor Power |
Kw |
0.12 |
|
Overall Size |
mm |
1400×1240×1478 |
|
Package Size |
mm |
1500×1310×1760 |
|
Machine’s Weight |
Kg |
1200 |
|
Power Supply |
V/Hz |
380/50 |
|
