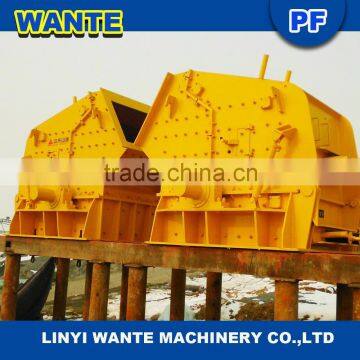

Large capactiy 220-280 tons per hour Stone Impact Fine Crusher quarry machine
APPLICATION OF IMPACT CRUSHER | |
Application Fields |
Processing Objects |
|
SECONDARY CRUSHING: Mining Quarry Metallurgy Building Material processing Road and Bridge Construction |
Gypsum, Shael Iron Ore,Gold mineral Coal Gange,Quarze Stone Basalt,Granite, Marble Stone
|
| |
ADVANTAGES OF IMPACT CRUSHER | |
|
1. Meet high standard requirement for aggregate grain form 2. Crushing high-compressive strength materials under 320Mpa 3. Easily controlling about the output size 4. Big feeding sizeHigh crushing ratioLarge processing capacity 5. Low power consumption, Less wearing parts, low maintenance cost | |
|
|
WORKING PRINCIPLE OF IMPACT CRUSHER | |
The rotor is taken to do high-speed rotatory movement under the lead of the motor,when the raw materials entered the functional section of plate hammer,they are crushed by the plate hammer and throwed constantly to the reaction device installed on the rotor , then sprung back to the back board, and crushed again.The stones are broken from big size to the demanded grain size,then discharged from the bottom of the machine. | |
|
|
| TECHNICAL PARAMETERS | |||||||
| Model |
Rotor Specification (mm) |
Feed Opening Size (mm) |
Max.Feeding Size (mm) |
Processing Capacity (t/h) |
Power (kw) |
Overall Dimension (L×W×H) (mm) |
Weight (t) |
| PF-1007 | Φ1000*700 | 400*730 | ≤70 | 37-45 | 55-75 | 2400*1558*2136 | 5.7 |
| PF-1010 | Φ1000*1050 | 590*1040 | ≤100 | 50-90 | 75-90 | 2400*1558*2137 | 8.5 |
| PF-1210 | Φ1250*1050 | 755*1040 | ≤120 | 60-130 | 110-132 | 2400*1558*2138 | 13.2 |
| PF-1214 | Φ1320*1400 | 755*1440 | ≤140 | 70-180 | 132-160 | 2400*1558*2139 | 17.15 |
| PF-1315 | Φ1320*1500 | 855*1600 | ≤160 | 90-250 | 180-220 | 2400*1558*2140 | 21.6 |
| PF-1320 | Φ1320*2000 | 855*2100 | ≤180 | 120-350 | 280-315 | 2400*1558*2141 | 24 |
| PF-1515 | Φ1500*1500 | 900*1600 | ≤200 | 220-280 | 280-315 | 2400*1558*2142 | 29.5 |
PACKAGING & SHIPPING |
|
1.Sand blasting coat with high quality paint; 2.Product wrapped by PP-Bubble; 3.Load container,spear Parts in wooden case 4.Transportation by sea; |
|
COMPANY INTRODUCTION |
|
|
Linyi Wante Machinery Co., Ltd was established in 1996, located in Linyi City North District National Grade Economic Development Zone. It is a high-tech enterprise collection of crusher machines, wearing-resisting materials R&D, manufacture, sales and service. For ten years, taking our enterprise spirits of “Good faith, being pragmatic, innovation, development”, through our unremitting efforts, rapidly become an important crusher and wear resistant material manufacture and export base. |
Quality Control |
|
|
Our Team |
|
|
Customers' Visit |
|
|
So far ,there are so many customers from all over the world to visit our company. They are mainly from Middle East ,such as : Egypt,Syria,Yemen,Oman,Jordan; Southeast Asia,for example: Philippines, Vietnam,Singapore,Myanmar, and other countries,for instance:Canada,Russian,Mongolia,Afghanistan,etc. |
OUR COOPERATION |
|
After the purchase contract signing ,we will arrange production at once,and inform you everything about the entire manufacturing process. Cooperation one day ,good friends forever. |
FAQ |
Q:Installation and Commissioning |
|
A: At the client’s request, we can provide installation Technicians to supervise and assist in the assembly and commissioning of the equipment. |
Q: What will we do if the machine is broken down? |
|
A:The warranty period for all of structural and mechanical equipment is one year. Wear parts are not covered by warranty unless the component part is found to be flawed. |
Q:What shall we need to do if we want to get a better quotation? |
|
A: If you want to get a suitable machine from us ,please let us know the details as follows: 2).the output size 3).the stone type |
Q:Can I visit your factory? |
A:Certainly,you are always welcome here to know more details and get more trust. |
