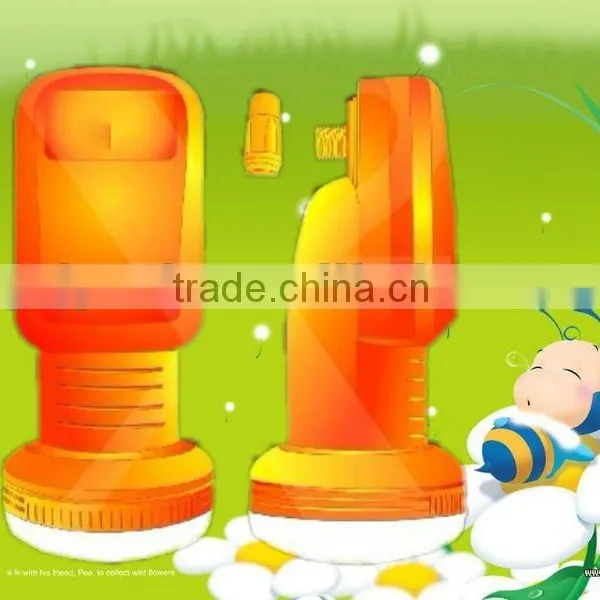

Universal Ku-band Single Lnb
US$ 1.2 - 1.5
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
jpark
Model Number:
jk 401
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
jpark
Model Number
jk 401
FTA(Free To Air)
Yes
Type
Digital
High Definition
Yes
Specifications
1 wide band&high gain quality2 low noisy
3 competitive price
4 one year the warrantly
| Input Frequency | low band:10.7--11.7GHz high band11.7--12.75GHz |
| Output Frequency | low band:950--1950MHz high band:1100--2150MHz |
| Output VSWR | 2.2:1@25oC |
| Output Impedance | 75Ω |
| Output Connector | Type F Female |
| L.O.Frequency | low band:9.75GHz high band:10.6GHz |
| L.O.Frenquency Stability | low band: 1MHzMax@25oC high band:3MHzMax@25oC |
| Phase Noise | -70dBc/Hz@1KHz offset |
| -90dBc/Hz@10KHz offset | |
| -110dBc/Hz@100KHz offset | |
| Conversion Gain | 55dB (Typ.)@25oC |
| Gain Flatness | ±3[±0.5dB/27MHz](Typ.) |
| P 1dB Gain Compression | 3 dBm (Typ.) |
| Noise Figure | 0.5 dB (Typ.) |
| F/D Ratio | 0.6 |
| Image Rejection | 45dB (Typ.) |
| Power Supply | DC:12.0V--18.0V |
| Band Select Control : | Low Band: 0 Hz |
| High Band: 22 KHz | |
| Polarity Select Control : | V: 12~14V DC |
| H: 15.5~20V DC | |
| Work Current : | 90 mA |
