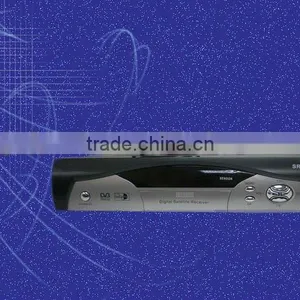

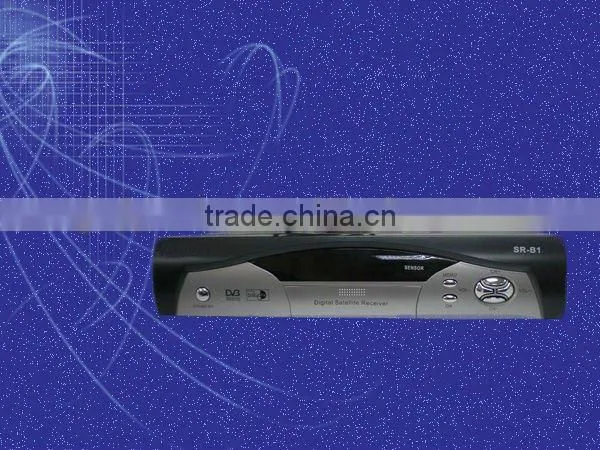

FTA DVB SR-B1 old receiver

Specifications

FTA DVB
1.DVB-S /MPEG-2 Compliant
2.Supports DiSEqC 1.0/1.2
3.SR-B1
4.Low Price



FTA DVB SR-B1 OLD



1,Fully DVB-S /MPEG-2 Compliant

2,Supports DiSEqC 1.0/1.2

3,0/22Khz Tone

4,SCPC/MCPC Receivable from C/KU band satellite

5,3 Operation Modes ( Digital TV, Digital Radio, Favorite)

6,950-2150 Mhz Input Frequency

7,Wide Symbol Rate 4~45 Mbps

8,MPEG~2 Main Profile at Main Level

9,Easy Graphic Menu Interface.

10,OSD Color Style

11,16/256 color on screen display (OSD) supported.

12,PAL -NTSC auto -conversion

13, Up to 9 Picture on screen.

14,Software upgrade via RS-232 Serial port A25



TUNER

Input Frequency : 950 to 2150 MHz

Input Level : -65 to -25 dBm

LNB Supply  : 13 V / 18V / OFF , Max 400 mA

Demodulation Type : QPSK

Symbol Rate : 4 - < 45 MS/s

AUDIO /VIDEO PROCESSING

Audio Standard  : ISO/IEC 13818-3

Audio Channel : Mute, Left, Right and Stereo.

Audio Decoding : MPEG-1 & MPEG-2 layer I and II

Video Standard : ISO/IEC 13818-2,MPEG-2 MP@ML.

Aspect Ratio : 4:3

Video Resolution : 720 x 576 ( PAL ),720 x 480 (NTSC)

Video Format : 4:3

POWER SUPPLY

Type  : Switching mode

Input Voltage : 100-240V,50/60Hz

Power consumption : 18W max

PHYSICAL CHARACTERSTICS

Rear Panel
