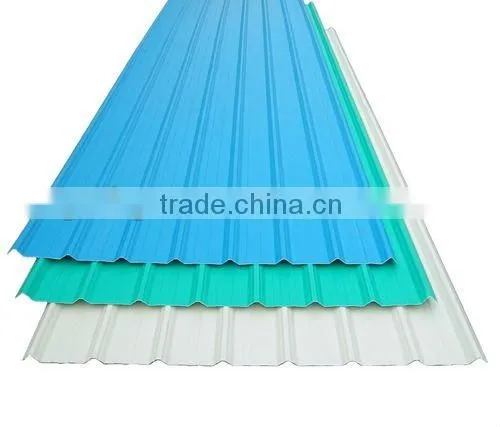

Yaohua frp panels are made of fiberglass and polyester resin and continuously molded by machine. They are characterized by high-light transmittance, light-weight, high-strength, corrosion resistance, impact resistance, anti-ultraviolet, anti-static, heat preservation and insulation, accurate section dimensions and controllable cutting length. They can be used with various profiling panels and galvanized sheets.
Properties:
- High light transmittance, with a higher index of transmitting than ordinary FRP sheet, the color free sheet can reach the transmitting index above 85%;
- Soft sunlight shooting in house without the existence of light drizzling since the fiberglass is well distributed in the sheet;
- Low ultra-violet transmission, which can reduce the harm for the plants and is very useful for the green house skylight;
- Good weather resistance, with the special coat covered on the surface of the skylight sheet, and a working life of over 15years is available;
- Strong strength and strong impact resistance, being resistant for hail without the effect on the normal use the sheet;
- Low thermal conductivity, with the heat loss 34-48% lower than that of single glass of the single plastics film, showing much better thermal insulation effect than glass and plastics, and at present double skylight sheet has been developed and applied for the severe cold area to meet the requirement for the thermal insulation, its index of light transmission can also reach above 75%;
Applications:
- Match with the asbestos-cement corrugated sheet and the galvanized steel corrugated sheet, which is generally used;
- Mach with the roller-pressing steel sheet;
- Mach with concealed roller-pressing steel sheet as skylight sheet;
- Mach with thermal insulation roller-pressing steel sheet as skylight sheet.
We also have other corrugated/flat sheet, including:
Light transmittance (colorless, diffused light)
Half light transmittance (colored, diffused light)
Flame retarded type
Various colors and types are available by the requirement of users.
Technical specifications:
Tensile strength |
80-100Mpa |
Flexural strength |
0-110 Mpa |
Pasteur |
≥40 |
Heat conductivity factor |
0.67-0.96kv/m.h.°C |
Water absorption |
24 hours ≤0.32% |
Wind loading rating |
below 8 level |
Density |
1.4-1.6g/cm³ |
Temperature range |
-40°C—+60°C |
Curing degree |
≥82% |
Warranty |
15 years |
Product classifications:
Plate type |
|
thickness(mm) |
width(mm) |
Flat plate |
0.7-4.0 |
≤1400 |
|
Sine wave |
0.7-4.0 |
≤1200 |
|
Trapezoidal wave |
0.7-4.0 |
Mating with pressure plate |
|
Fire resistance |
Ordinary type |
||
Flame retarded type | |||
The technical standards of FRP sheet:
1. Good tenacity. No cracking phenomenon when driving nails in roof installation.
2. Having close combing with color steel plate. Cross-section thickness is uniform. The shape of FRP is consistent with steel plate.
3. Transmittance loss rate is low. No yellowing phenomenon after long term service.
4. Thermal expansion coefficient is close to that of steel plate. No cracking and water leakage in nail driving place because of expand with heat and contract with cold.
5. Light through FRP assumes scattering shape and gentle.
6. Bright and clean appearance. No distinct air bubble and cracking on FRP.
7. Anti-ultraviolet and anti-chemistry corrosion.
8. Anti-aging and anti-pulverization.
9. Long service life.
