HBD3.0 grp composite light pickets

Specifications

1.Ambient temperature: -40~60 degrees celsius
2.Wind loading rating: 36 m/s of wind speed(12 levels)
3.Service life: 10 years

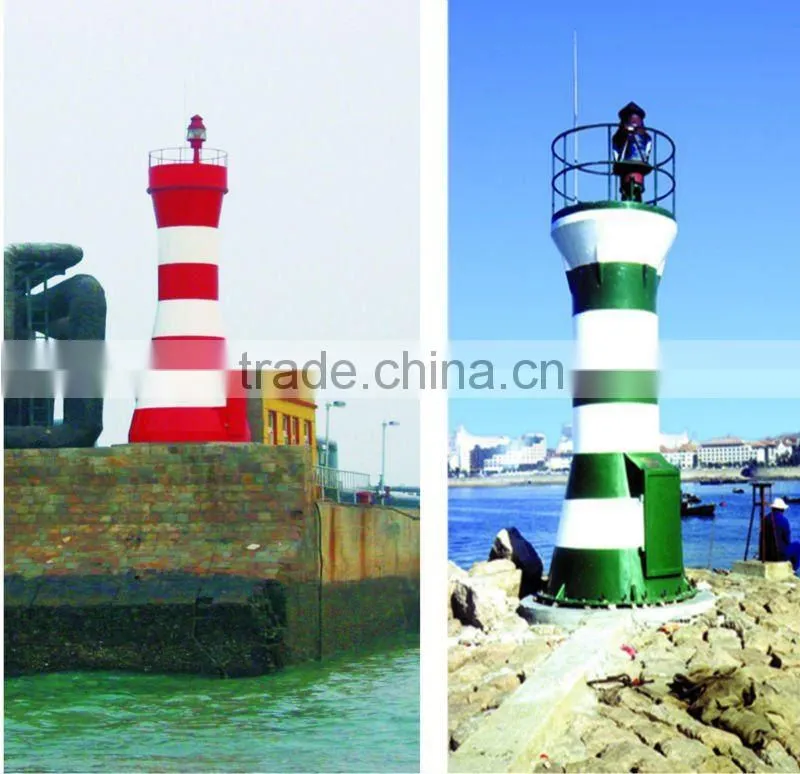

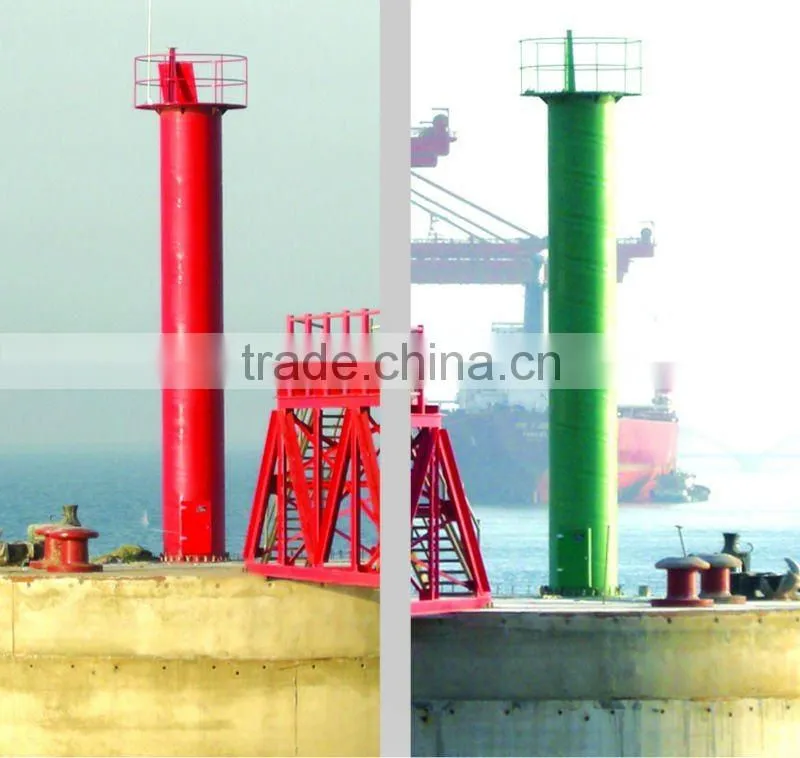

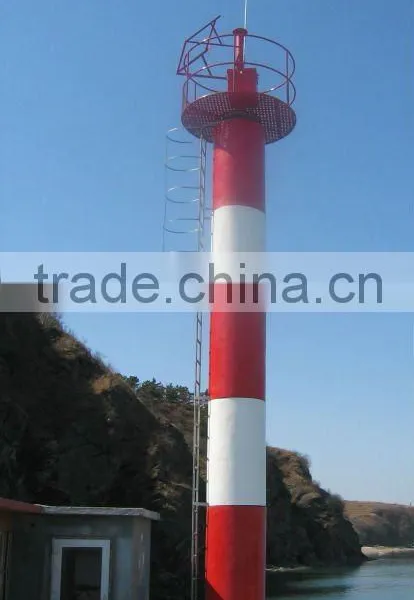

HBD FRP light beacon



Characteristic features:

1. It is made of FRP, steel and other composite materials. It is characterized by high strength, good structure and light weight;
2. It is characterized by sea water and weather corrosion resistance, thermo stability and strong solar radiation resistance.
3. Body colored material is striking and can be remained for long time. It is also characterized by good navigation.
4. Free maintenance in life cycle.
5. Work environment: coastal harbor and river terminal, rock in the sea, shoal, island etc.



Model and Specification	HBD1.0	HBD1.5	HBD2.0	HBD3.0
Diameter of main body(mm)	1100	1500	2000	3000
Base diameter (mm)	1800	3000	4000	6000
Diameter of top platform(mm)	1600	2000	2000	4000
Height of beacon body(m)	5~10	8~14	10~18	15~25
Energy of modulator	Equip as the request of customers
remarks	The type of light beacon can be designed and manufactured according to the requirements of the customers; the wind loading rating of the light beacon can be improved according to the requirement of customers.
