Food granulator dryer
- 30 Set / Sets per Month
- shanghai china
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Other, Boiling mixer granulator dryer | Place of Origin: | Jiangsu, China |
Brand Name: | xinanfenti | Model Number: | FL-B | Voltage: | 380V(according your requirement) |
Power(W): | 4kw,5.5kw,5.5kw,7.5kw,11kw,15kw | Dimension(L*W*H): | According to the customer's requirements | Weight: | According to the customer's requirements |
Certification: | ISO9001 Accord with GMP standards | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

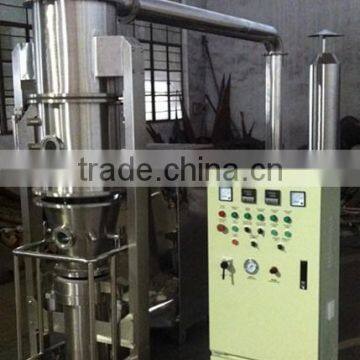

Food granulator dryer
Main Application:
FLB Series Boiling Mixer Granulator Dryer is used to mix powder,dry and granulate it and coat in the industry of pharmaceutical,foodstuff and chemical.
Granulating:Tablet,instant soluble medicine,granules for capsule.
Coating:Granules,pill’s protecting layer,slow release layer,thin-film,enteric coating.
Feature:It produces particles with powders so as to improve the fluidity and reduce flying dusts.
It produces particles with powders so as to improve the solubility of the granules.
Mixing Granulating Drying 3 processes complete in one machine.
It adopts anti-static filter,safe operation is guaranteed.
There are pressure releasing holes to guarantee operating security.
The machine is designed according to GMP standard and made of stainless steel.The advantages of it are no blind spot,loading and discharging material easily and quickly,easy cleaning.
Operating Principle:
Powder flows in a cycle shape in the material container(fluidized bed).It is pre-heated by clean air and adhesive solution spays into the powder with the clean air together.Powder particles coalesce into granules and get dry.It has the feature of micro holes on the ball-shaped porous particles.
Technical specification:
Model | 5 type | 15 type | 30 type | |
Capacity | Min Group(kg/time) | 4 | 10 | 20 |
Max Group(kg/time) | 6 | 20 | 40 | |
Raw material vessel volume(L) | 2.2 | 45 | 100 | |
Draught fan power | Normal (kw) | 2.2 | 4 | 5.5 |
Filter and cyclone separator | 3 | 5.5 | 7.5 | |
Steam | Consumption(kg/h) | 23 | 42 | 70 |
Pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | |
Electricity heating power(Selected by customer) | 7.0 | 12 | 4.5 | |
Compressed air | Consumption(m3/min) | 0.3 | 0.3 | 0.4 |
Pressure(Mpa) | 0.4-0.6 | |||
Working temperature(°C) | Room temperature -120°C auto adjustment | Room temperature -120°C auto adjustment | Room temperature -120°C auto adjustment | |
Water content of product(%) | Mini 0.5 | Mini 0.5 | Mini 0.5 | |
Recycling ratio(%) | ≥99 | ≥99 | ≥99 | |
Equipment noise(dB) | ≤70 | ≤70 | ≤70 | |
Main frame height(mm) | 2100 | 2200 | 2300 |
60 type | 120 type | 200 type | 300 type | 500 type |
40 | 80 | 160 | 250 | 350 |
80 | 160 | 250 | 350 | 550 |
220 | 420 | 670 | 1000 | 1600 |
11 | 15 | 22 | 30 | 37 |
15 | 18.5 | 30 | 37 | 45 |
141 | 211 | 282 | 366 | 450 |
0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
21 | 30 | 47 | 70 | 110 |
0.6 | 0.8 | 0.9 | 1.5 | 2.0 |
Room temperature -120°C auto adjustment | Room temperature -120°C auto adjustment | Room temperature -120°C auto adjustment | Room temperature -120°C auto adjustment | Room temperature -120°C auto adjustment |
Mini 0.5 | Mini 0.5 | Mini 0.5 | Mini 0.5 | Mini 0.5 |
≥99 | ≥99 | ≥99 | ≥99 | ≥99 |
≤70 | ≤70 | ≤70 | ≤70 | ≤70 |
3000 | 3300 | 3800 | 4100 | 4500 |
Machines parts:
Certificate:
Activity:
Factory condition:
One year guarantee for whole machine
24 hour technical support by email
Calling or door-to-door Service
User manual and detailed video/CD
Before the inquiry, you should tell us the following information:
1. What’s the raw material?
2. What’s the moisture before and after drying?3. What’s you expected capacity?
4. What’s the heating source?
Our usual payment term 30% T/T in advance, 70%T/T before shipment.
