Help CenterPrice of Industrial Evaporator
Related Products
Specifications
price of industrial evaporator1) over 15 years experience in building cold room
2) prefabricated cold storage expert
Any inquiry of price of industrial evaporator will be answered as soon as possible
Material: aluminium alloy
Model: 3 fins
2 fins
tubes
Option: water chanel
defrost heaters
Diameter: D20mm, D25mm, D32mm
Resistance of pressure: 25 kg
Wall thickness: 2mm

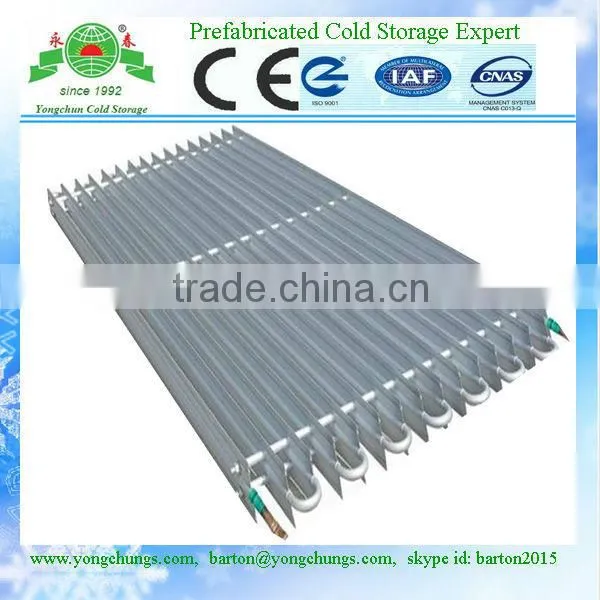

Aluminium Tube Evaporator Characteristic
1. light weight and easy installation
2. good thermal effect and reduce energy consumption
3. aluminum alloy tube can be installed on the top of the refrigerator
this will improve the heat transfer capacity of per unit area, more energy efficient
4. improve the utilization rate of refrigeration, reducing the amount of refrigerant system
5. Aluminium alloy pipe form flake shape, formed many parallel channels, can save a lot
of electricity
Cold Storage Volum and Aluminium SQM
| cold storage volum | aluminium tube evaprator SQM |
| <500m3 | below 3m, 2-2.5 times of bottom area |
| 50-100m3 | 2 times of bottom area |
| 100-300m3 | 1.8times of bottom rea |
| 300-500m3 | 0.5m2 per cbm |
| 500-1000m3 | 0.45m2 per cbm |
| 1500-2000m3 | 0.4m2 per cbm |
| >2000m3 | 0.18-0.26m2 per cbm |
Aluminium Tube Evaporator Size
| Size | sqm per meter |
| D25 x 130 x two fins | 0.29 |
D25 x 150 x two fins |
0.33 |
D32 x 150 x two fins |
0.34 |
D32 x three fins |
0.495 |
Goods Pictures
evaprator packages 1.
evaprator packages 2.
Dear friend, if you have any question about evaprator or other cold room accessories, please feel free to let us
know, we'd like to give you a quick reply to answer you.
Yours faithfully,
Barton
Sales Manager
SKYPE: barton2015
